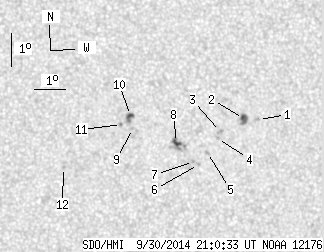

SDO HMI 2014-09-30 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.28 | 35.48 | 4.44 | 18.98 | 6.99 | 208.66 | 22.28 | 271.98 | 0.3780 | -114.2 | -93.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.53 | 7.32 | 211.10 | 24.72 | 272.85 | 0.4171 | -693.0 | -612.5 | |
| 3.17 | 6.43 | 1.72 | 3.49 | 7.37 | 210.61 | 24.23 | 272.98 | 0.4092 | -1021.4 | -768.9 | |
| 0.00 | 2.29 | 0.00 | 1.23 | 7.02 | 209.83 | 23.44 | 272.09 | 0.3968 | -840.0 | -820.5 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 6.81 | 209.72 | 23.33 | 271.57 | 0.3951 | -838.0 | -682.1 | |
| 0.00 | 1.76 | 0.00 | 0.95 | 6.41 | 209.37 | 22.99 | 270.51 | 0.3897 | -912.0 | -769.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 6.06 | 209.06 | 22.67 | 269.57 | 0.3850 | -762.0 | -648.4 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 6.16 | 208.90 | 22.51 | 269.81 | 0.3824 | -832.0 | -709.9 | |
| 3.26 | 10.83 | 1.74 | 5.78 | 6.76 | 208.37 | 21.99 | 271.34 | 0.3735 | 917.5 | 201.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 7.24 | 206.96 | 20.58 | 272.63 | 0.3507 | 840.0 | 634.7 | |
| 1.85 | 5.81 | 0.98 | 3.07 | 7.63 | 206.92 | 20.54 | 273.76 | 0.3500 | 1018.2 | 774.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 7.37 | 206.62 | 20.23 | 273.03 | 0.3450 | 871.0 | 737.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 6.16 | 204.71 | 18.32 | 269.20 | 0.3140 | 794.0 | 611.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
