SDO HMI 2014-09-30 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.55 | 49.74 | 3.18 | 29.61 | -14.32 | 161.03 | -25.35 | 129.79 | 0.5521 | -90.7 | -116.3 | |
|
previous
or next observation for the same group /

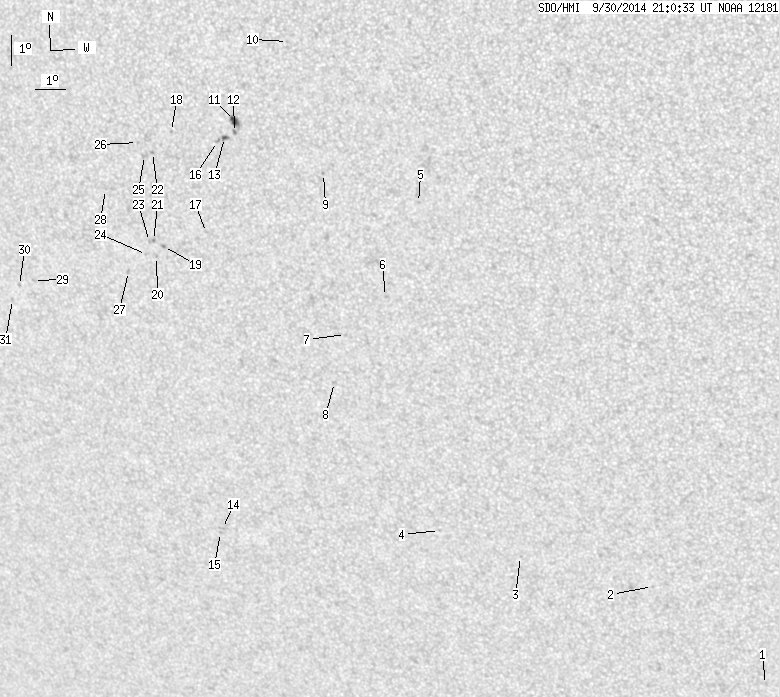

back to the solar disc SDO HMI 2014-09-30 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.29 | 0.00 | 1.40 | -28.08 | 177.24 | -9.14 | 166.18 | 0.5889 | -534.0 | -379.5 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -24.65 | 173.72 | -12.67 | 158.97 | 0.5574 | 558.0 | 423.5 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -23.73 | 169.33 | -17.05 | 151.89 | 0.5719 | 769.0 | 624.5 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -22.94 | 166.65 | -19.73 | 147.54 | 0.5815 | 658.0 | 416.4 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -12.11 | 167.18 | -19.20 | 134.57 | 0.4533 | 832.0 | 698.2 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -15.17 | 165.82 | -20.56 | 137.20 | 0.5009 | 646.0 | 565.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -16.47 | 164.33 | -22.05 | 137.00 | 0.5299 | 431.0 | 390.1 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -18.07 | 163.75 | -22.63 | 138.34 | 0.5525 | 681.0 | 593.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -11.32 | 164.13 | -22.25 | 129.08 | 0.4803 | 703.0 | 577.1 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -7.25 | 163.23 | -23.15 | 120.79 | 0.4559 | 606.0 | 495.2 | |
| 4.14 | 8.81 | 2.37 | 5.04 | -9.80 | 161.29 | -25.10 | 123.23 | 0.5016 | -1082.5 | -782.5 | |
| 0.00 | 2.11 | 0.00 | 1.21 | -10.17 | 161.25 | -25.13 | 123.83 | 0.5051 | -836.0 | -674.2 | |
| 1.41 | 3.35 | 0.81 | 1.93 | -10.35 | 160.90 | -25.48 | 123.74 | 0.5110 | -912.2 | -705.6 | |
| 0.00 | 2.38 | 0.00 | 1.54 | -23.25 | 158.85 | -27.53 | 138.95 | 0.6490 | 681.0 | 577.1 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -23.40 | 158.74 | -27.64 | 139.01 | 0.6513 | 541.0 | 434.2 | |
| 0.00 | 1.67 | 0.00 | 0.97 | -10.49 | 160.65 | -25.73 | 123.71 | 0.5152 | -734.0 | -512.4 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -13.40 | 159.97 | -26.41 | 127.54 | 0.5478 | -715.0 | -528.0 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -10.26 | 159.10 | -27.28 | 121.79 | 0.5327 | 668.0 | 583.6 | |
| 0.00 | 1.50 | 0.00 | 0.90 | -13.93 | 158.40 | -27.98 | 126.74 | 0.5703 | -859.0 | -761.3 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -14.27 | 158.11 | -28.27 | 126.93 | 0.5764 | -825.0 | -617.8 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -13.76 | 158.08 | -28.30 | 126.17 | 0.5727 | -837.0 | -648.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -10.95 | 158.38 | -28.00 | 122.22 | 0.5470 | 906.0 | 802.9 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -13.80 | 157.93 | -28.45 | 126.09 | 0.5747 | -680.0 | -656.9 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -14.23 | 157.77 | -28.62 | 126.54 | 0.5800 | -657.0 | -531.9 | |
| 0.00 | 3.43 | 0.00 | 2.04 | -11.07 | 158.09 | -28.29 | 122.13 | 0.5514 | 639.0 | 544.4 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -10.67 | 157.89 | -28.50 | 121.32 | 0.5510 | 772.0 | 572.4 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -14.82 | 157.04 | -29.34 | 126.69 | 0.5929 | -539.0 | -438.8 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -12.23 | 156.58 | -29.80 | 122.54 | 0.5783 | -609.0 | -459.7 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -15.33 | 153.50 | -32.88 | 124.34 | 0.6363 | -711.0 | -530.2 | |
| 0.00 | 1.23 | 0.00 | 0.80 | -15.53 | 152.94 | -33.44 | 124.16 | 0.6439 | -700.0 | -527.4 | |
| 0.00 | 1.41 | 0.00 | 0.92 | -16.00 | 152.59 | -33.79 | 124.51 | 0.6511 | -470.0 | -288.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
