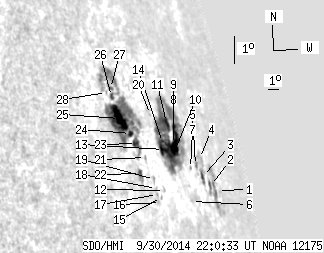

SDO HMI 2014-09-30 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.78 | 337.44 | 128.31 | 595.44 | 15.31 | 260.47 | 74.64 | 284.05 | 0.9588 | -100.9 | -59.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 1.62 | 13.17 | 266.19 | 80.36 | 282.18 | 0.9829 | 286.0 | 275.7 | |
| 1.41 | 27.57 | 3.40 | 69.88 | 13.43 | 265.28 | 79.45 | 282.37 | 0.9799 | -274.5 | -81.6 | |
| 1.59 | 5.28 | 3.59 | 11.98 | 13.81 | 264.43 | 78.60 | 282.70 | 0.9768 | -164.1 | -205.0 | |
| 0.00 | 7.31 | 0.00 | 16.78 | 14.35 | 264.63 | 78.80 | 283.26 | 0.9774 | 94.0 | 50.7 | |
| 0.00 | 1.85 | 0.00 | 4.02 | 14.22 | 263.84 | 78.01 | 283.08 | 0.9745 | -270.0 | -272.0 | |
| 0.00 | 0.79 | 0.00 | 1.55 | 13.29 | 262.24 | 76.41 | 282.02 | 0.9683 | -266.0 | -228.2 | |
| 0.00 | 1.06 | 0.00 | 2.18 | 14.21 | 263.09 | 77.26 | 283.02 | 0.9716 | -218.0 | -254.8 | |
| 19.38 | 140.31 | 36.56 | 261.11 | 15.11 | 261.77 | 75.94 | 283.87 | 0.9658 | -451.2 | -212.2 | |
| 2.03 | -8.00 | 3.95 | -8.00 | 15.58 | 262.31 | 76.48 | 284.39 | 0.9680 | 16.3 | 999999 | |
| 7.22 | -8.00 | 13.12 | -8.00 | 14.75 | 261.13 | 75.30 | 283.46 | 0.9631 | -493.3 | 999999 | |
| 3.44 | -8.00 | 6.41 | -8.00 | 15.81 | 261.64 | 75.82 | 284.59 | 0.9651 | -424.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.90 | 13.93 | 259.53 | 73.71 | 282.53 | 0.9557 | 160.0 | 83.2 | |
| 7.13 | -8.00 | 12.45 | -8.00 | 15.10 | 260.51 | 74.68 | 283.80 | 0.9601 | -466.6 | 999999 | |
| 3.17 | -8.00 | 5.55 | -8.00 | 15.30 | 260.60 | 74.77 | 284.02 | 0.9605 | -716.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.85 | 13.77 | 259.06 | 73.24 | 282.34 | 0.9533 | 310.0 | 270.6 | |
| 0.00 | 0.44 | 0.00 | 0.71 | 13.64 | 258.85 | 73.02 | 282.19 | 0.9522 | 361.0 | 332.6 | |
| 0.00 | 1.06 | 0.00 | 1.68 | 13.90 | 258.74 | 72.91 | 282.46 | 0.9516 | 420.0 | 348.2 | |
| 0.00 | 1.23 | 0.00 | 1.97 | 14.08 | 258.78 | 72.95 | 282.65 | 0.9518 | 433.0 | 404.2 | |
| 0.00 | 1.67 | 0.00 | 2.67 | 14.35 | 258.80 | 72.97 | 282.94 | 0.9518 | 319.0 | 264.4 | |
| 0.00 | 0.26 | 0.00 | 0.45 | 16.23 | 260.13 | 74.30 | 284.96 | 0.9581 | -479.0 | -445.0 | |
| 0.00 | 1.32 | 0.00 | 2.06 | 15.08 | 258.46 | 72.63 | 283.69 | 0.9499 | 213.0 | 170.7 | |
| 1.85 | 5.73 | 2.77 | 8.58 | 14.67 | 257.61 | 71.78 | 283.23 | 0.9454 | 537.8 | 401.1 | |
| 4.05 | 103.41 | 6.16 | 153.33 | 15.57 | 257.95 | 72.12 | 284.19 | 0.9471 | 354.3 | 83.8 | |
| 2.38 | -23.00 | 3.57 | -23.00 | 15.91 | 257.64 | 71.81 | 284.54 | 0.9453 | 329.1 | 999999 | |
| 18.58 | -23.00 | 27.08 | -23.00 | 16.45 | 257.02 | 71.19 | 285.10 | 0.9418 | 541.9 | 999999 | |
| 1.67 | 34.26 | 2.42 | 49.74 | 17.16 | 256.86 | 71.03 | 285.84 | 0.9408 | 377.8 | 62.3 | |
| 0.88 | -26.00 | 1.28 | -26.00 | 17.39 | 256.98 | 71.16 | 286.10 | 0.9415 | 231.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.38 | 17.32 | 256.52 | 70.70 | 286.01 | 0.9389 | 478.0 | 464.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
