SDO HMI 2014-09-30 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.14 | 35.49 | 3.84 | 19.09 | 7.02 | 208.82 | 22.99 | 272.06 | 0.3895 | -131.7 | -86.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

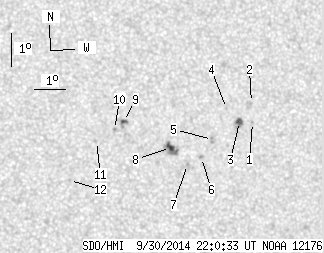

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | 7.35 | 211.12 | 25.30 | 272.93 | 0.4261 | -777.0 | -667.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 7.95 | 211.13 | 25.30 | 274.35 | 0.4263 | -649.0 | -573.5 | |
| 2.38 | 7.22 | 1.30 | 3.94 | 7.40 | 210.69 | 24.86 | 273.05 | 0.4193 | -1003.1 | -724.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 7.81 | 210.28 | 24.46 | 274.05 | 0.4129 | -747.0 | -604.9 | |
| 0.00 | 2.82 | 0.00 | 1.53 | 6.90 | 209.77 | 23.94 | 271.82 | 0.4047 | -876.0 | -772.6 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 6.38 | 209.38 | 23.55 | 270.49 | 0.3987 | -909.0 | -747.8 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 6.19 | 208.91 | 23.08 | 269.96 | 0.3913 | -915.0 | -705.5 | |
| 3.44 | 13.12 | 1.84 | 7.03 | 6.73 | 208.37 | 22.55 | 271.30 | 0.3825 | 889.5 | 292.9 | |
| 1.32 | 4.32 | 0.70 | 2.29 | 7.58 | 206.89 | 21.06 | 273.58 | 0.3584 | 958.3 | 762.4 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 7.35 | 206.58 | 20.75 | 272.95 | 0.3534 | 797.0 | 695.5 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 7.01 | 205.98 | 20.16 | 271.98 | 0.3437 | 599.0 | 426.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 5.88 | 205.07 | 19.24 | 268.50 | 0.3294 | 782.0 | 625.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
