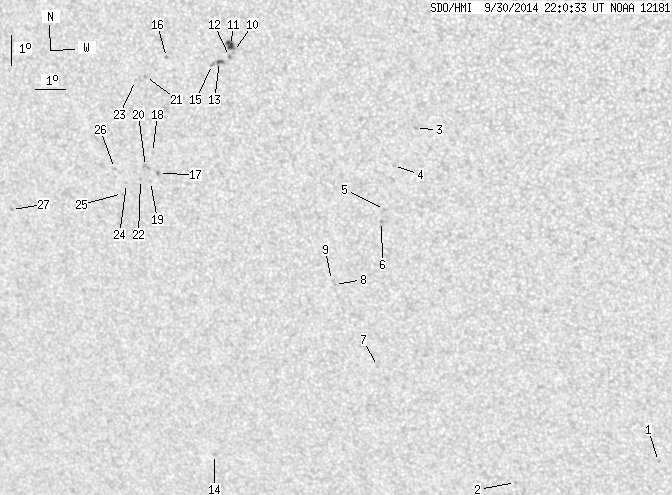

SDO HMI 2014-09-30 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.55 | 40.24 | 3.17 | 23.60 | -13.49 | 161.03 | -24.80 | 129.39 | 0.5339 | -76.4 | -133.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.62 | -22.91 | 174.27 | -11.56 | 159.46 | 0.5281 | 716.0 | 492.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -23.78 | 169.35 | -16.47 | 152.74 | 0.5687 | 760.0 | 677.1 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -12.15 | 167.24 | -18.59 | 135.58 | 0.4470 | 833.0 | 642.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -13.36 | 166.43 | -19.40 | 136.23 | 0.4690 | 579.0 | 469.8 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -14.79 | 166.00 | -19.82 | 137.70 | 0.4892 | 743.0 | 626.2 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -15.18 | 165.87 | -19.96 | 138.05 | 0.4949 | 792.0 | 605.9 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -19.98 | 165.16 | -20.67 | 143.15 | 0.5553 | 566.0 | 479.0 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -17.31 | 164.05 | -21.78 | 138.45 | 0.5361 | 712.0 | 587.6 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -17.19 | 163.97 | -21.86 | 138.18 | 0.5356 | 514.0 | 496.2 | |
| 0.00 | 1.67 | 0.00 | 0.95 | -9.98 | 161.42 | -24.40 | 124.29 | 0.4945 | -683.0 | -676.6 | |
| 4.14 | 6.34 | 2.36 | 3.61 | -9.80 | 161.34 | -24.49 | 123.88 | 0.4941 | -1064.1 | -784.4 | |
| 0.00 | 1.85 | 0.00 | 1.06 | -10.15 | 161.28 | -24.55 | 124.40 | 0.4977 | -819.0 | -679.3 | |
| 1.41 | 2.82 | 0.81 | 1.61 | -10.32 | 160.93 | -24.90 | 124.31 | 0.5036 | -850.7 | -728.9 | |
| 0.00 | 1.76 | 0.00 | 1.14 | -23.30 | 158.80 | -27.02 | 139.51 | 0.6450 | 730.0 | 595.2 | |
| 0.00 | 1.76 | 0.00 | 1.01 | -10.43 | 160.68 | -25.15 | 124.22 | 0.5075 | -722.0 | -562.0 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.29 | 159.13 | -26.70 | 122.41 | 0.5257 | 829.0 | 713.9 | |
| 0.00 | 1.76 | 0.00 | 1.06 | -14.00 | 158.44 | -27.39 | 127.41 | 0.5641 | -871.0 | -756.9 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -13.33 | 158.32 | -27.51 | 126.32 | 0.5600 | -546.0 | -454.5 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -14.27 | 158.12 | -27.71 | 127.49 | 0.5700 | -773.0 | -667.6 | |
| 0.00 | 3.08 | 0.00 | 1.85 | -13.80 | 158.01 | -27.82 | 126.70 | 0.5674 | -799.0 | -657.8 | |
| 0.00 | 1.59 | 0.00 | 0.93 | -10.93 | 158.35 | -27.48 | 122.67 | 0.5404 | 901.0 | 729.9 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -14.23 | 157.78 | -28.05 | 127.09 | 0.5736 | -663.0 | -500.6 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -11.07 | 157.99 | -27.84 | 122.56 | 0.5459 | 629.0 | 426.0 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -14.39 | 157.26 | -28.57 | 126.81 | 0.5807 | -645.0 | -545.8 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -14.72 | 157.07 | -28.76 | 127.10 | 0.5856 | -467.0 | -416.0 | |
| 0.00 | 1.50 | 0.00 | 0.91 | -13.93 | 156.90 | -28.93 | 125.82 | 0.5811 | -516.0 | -385.5 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -15.49 | 152.92 | -32.91 | 124.53 | 0.6378 | -752.0 | -536.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
