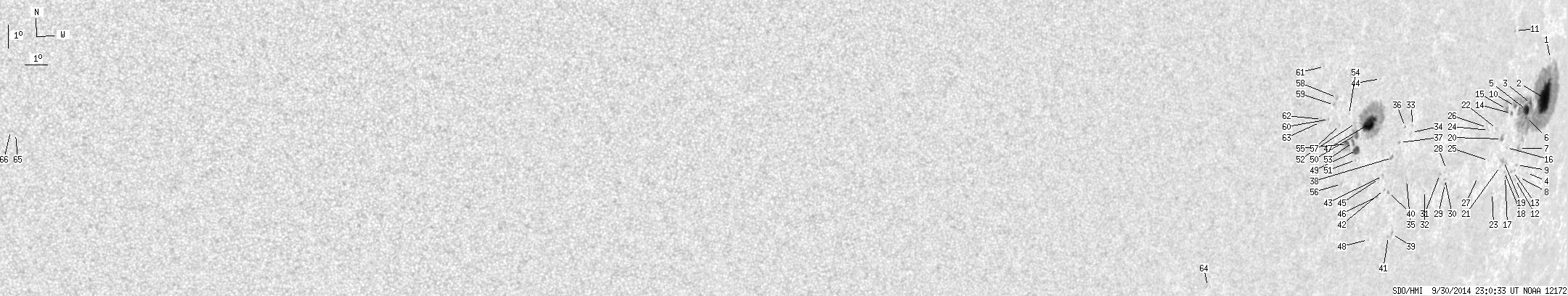

SDO HMI 2014-09-30 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.41 | 585.45 | 111.36 | 603.79 | -10.99 | 243.92 | 58.64 | 252.93 | 0.8731 | 63.7 | 96.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 1.02 | -9.03 | 248.16 | 62.88 | 256.64 | 0.9053 | 428.0 | 379.5 | |
| 47.22 | 334.48 | 55.45 | 386.92 | -10.74 | 248.21 | 62.93 | 254.81 | 0.9083 | 586.6 | 223.3 | |
| 2.47 | -2.00 | 2.78 | -2.00 | -10.83 | 246.98 | 61.70 | 254.41 | 0.8996 | 158.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.26 | -13.95 | 247.95 | 62.67 | 251.31 | 0.9120 | 422.0 | 358.8 | |
| 9.16 | -2.00 | 10.22 | -2.00 | -11.08 | 246.68 | 61.40 | 254.07 | 0.8979 | 626.5 | 999999 | |
| 1.59 | -2.00 | 1.78 | -2.00 | -11.43 | 246.81 | 61.53 | 253.71 | 0.8995 | 590.1 | 999999 | |
| 0.00 | 5.55 | 0.00 | 6.28 | -12.74 | 246.68 | 61.40 | 252.27 | 0.9009 | 465.0 | 281.9 | |
| 0.00 | 0.70 | 0.00 | 0.82 | -14.06 | 247.27 | 61.99 | 251.00 | 0.9075 | 592.0 | 531.1 | |
| 0.00 | 1.32 | 0.00 | 1.51 | -13.48 | 246.80 | 61.52 | 251.51 | 0.9031 | -55.0 | -52.8 | |
| 1.67 | -2.00 | 1.80 | -2.00 | -10.81 | 245.63 | 60.36 | 254.09 | 0.8896 | 717.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.90 | -7.49 | 244.71 | 59.43 | 257.54 | 0.8762 | 436.0 | 436.9 | |
| 0.00 | 0.97 | 0.00 | 1.12 | -14.13 | 246.96 | 61.69 | 250.86 | 0.9055 | 178.0 | 209.3 | |
| 0.00 | 2.55 | 0.00 | 2.90 | -13.74 | 246.59 | 61.31 | 251.17 | 0.9022 | -19.0 | -59.3 | |
| 1.32 | 2.55 | 1.41 | 2.73 | -11.10 | 245.42 | 60.14 | 253.72 | 0.8885 | 643.6 | 578.2 | |
| 1.94 | 13.21 | 2.04 | 13.86 | -10.86 | 244.91 | 59.63 | 253.85 | 0.8841 | 748.2 | 484.4 | |
| 0.00 | 1.23 | 0.00 | 1.34 | -12.58 | 245.53 | 60.25 | 252.13 | 0.8922 | 523.0 | 356.2 | |
| 0.00 | 1.76 | 0.00 | 1.97 | -13.89 | 245.95 | 60.67 | 250.83 | 0.8979 | -239.0 | -198.6 | |
| 0.00 | 0.97 | 0.00 | 1.07 | -13.68 | 245.80 | 60.52 | 251.01 | 0.8963 | -247.0 | -210.8 | |
| 0.00 | 6.87 | 0.00 | 7.51 | -13.18 | 245.52 | 60.24 | 251.48 | 0.8933 | 397.0 | 191.0 | |
| 1.59 | 4.05 | 1.69 | 4.31 | -12.14 | 244.93 | 59.65 | 252.44 | 0.8868 | 707.3 | 553.5 | |
| 0.00 | 0.88 | 0.00 | 0.96 | -13.38 | 245.29 | 60.01 | 251.20 | 0.8920 | -314.0 | -241.8 | |
| 0.00 | 2.11 | 0.00 | 2.20 | -11.64 | 244.32 | 59.05 | 252.83 | 0.8811 | 403.0 | 358.4 | |
| 0.00 | 0.88 | 0.00 | 0.96 | -14.53 | 245.10 | 59.82 | 249.90 | 0.8930 | -357.0 | -355.0 | |
| 0.00 | 0.35 | 0.00 | 0.36 | -11.64 | 243.67 | 58.39 | 252.65 | 0.8759 | -259.0 | -240.8 | |
| 0.00 | 0.26 | 0.00 | 0.28 | -13.01 | 244.16 | 58.88 | 251.28 | 0.8827 | -305.0 | -300.3 | |
| 0.00 | 0.88 | 0.00 | 0.89 | -11.49 | 243.50 | 58.23 | 252.76 | 0.8742 | -108.0 | -142.7 | |
| 0.00 | 0.44 | 0.00 | 0.45 | -13.67 | 243.52 | 58.25 | 250.37 | 0.8792 | -383.0 | -321.2 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -13.05 | 240.85 | 55.57 | 250.23 | 0.8559 | 404.0 | 354.0 | |
| 0.00 | 1.76 | 0.00 | 1.69 | -13.69 | 240.96 | 55.68 | 249.54 | 0.8586 | 345.0 | 282.1 | |
| 0.00 | 1.41 | 0.00 | 1.35 | -13.49 | 240.89 | 55.61 | 249.74 | 0.8575 | 559.0 | 474.1 | |
| 0.00 | 1.32 | 0.00 | 1.25 | -13.22 | 240.42 | 55.14 | 249.89 | 0.8527 | 481.0 | 416.9 | |
| 0.00 | 0.70 | 0.00 | 0.65 | -13.86 | 239.50 | 54.23 | 248.86 | 0.8466 | 442.0 | 423.9 | |
| 0.00 | 0.44 | 0.00 | 0.38 | -10.83 | 237.78 | 52.50 | 251.76 | 0.8226 | -393.0 | -304.4 | |
| 0.00 | 0.53 | 0.00 | 0.46 | -11.14 | 237.76 | 52.48 | 251.39 | 0.8233 | -424.0 | -363.7 | |
| 0.00 | 0.97 | 0.00 | 0.86 | -13.24 | 237.99 | 52.72 | 249.04 | 0.8315 | 128.0 | 171.4 | |
| 0.00 | 1.23 | 0.00 | 1.06 | -10.83 | 237.23 | 51.95 | 251.57 | 0.8175 | -483.0 | -462.4 | |
| 0.00 | 0.88 | 0.00 | 0.75 | -11.51 | 237.05 | 51.77 | 250.72 | 0.8177 | -662.0 | -596.3 | |
| 0.00 | 2.55 | 0.00 | 2.18 | -12.13 | 236.67 | 51.39 | 249.85 | 0.8160 | -395.0 | -346.7 | |
| 0.00 | 3.17 | 0.00 | 2.85 | -15.57 | 237.75 | 52.48 | 246.30 | 0.8365 | -466.0 | -375.6 | |
| 0.44 | 1.67 | 0.38 | 1.45 | -13.66 | 236.86 | 51.58 | 248.14 | 0.8225 | -370.0 | -315.6 | |
| 0.00 | 1.15 | 0.00 | 1.02 | -15.68 | 237.54 | 52.26 | 246.09 | 0.8350 | -616.0 | -537.6 | |
| 0.00 | 1.23 | 0.00 | 1.06 | -13.50 | 236.51 | 51.24 | 248.19 | 0.8188 | -397.0 | -433.6 | |
| 0.00 | 1.94 | 0.00 | 1.65 | -12.88 | 236.23 | 50.96 | 248.82 | 0.8142 | -486.0 | -352.4 | |
| 0.00 | 0.70 | 0.00 | 0.57 | -8.58 | 235.10 | 49.82 | 253.55 | 0.7900 | 295.0 | 250.6 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -12.98 | 236.02 | 50.74 | 248.61 | 0.8125 | -535.0 | -484.2 | |
| 0.00 | 1.41 | 0.00 | 1.20 | -13.75 | 236.14 | 50.87 | 247.76 | 0.8162 | -531.0 | -434.2 | |
| 24.84 | 119.10 | 20.08 | 96.49 | -10.48 | 234.77 | 49.49 | 251.13 | 0.7924 | -814.4 | -218.7 | |
| 0.00 | 0.35 | 0.00 | 0.31 | -15.67 | 236.12 | 50.84 | 245.54 | 0.8224 | -435.0 | -440.0 | |
| 7.31 | 14.62 | 5.88 | 11.73 | -11.58 | 234.17 | 48.89 | 249.57 | 0.7900 | -605.1 | -504.2 | |
| 4.05 | 12.60 | 3.23 | 10.02 | -10.88 | 234.01 | 48.73 | 250.36 | 0.7860 | -822.3 | -603.6 | |
| 0.00 | 1.06 | 0.00 | 0.85 | -11.99 | 234.22 | 48.95 | 249.09 | 0.7919 | -550.0 | -457.2 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -10.36 | 233.85 | 48.58 | 250.93 | 0.7827 | -613.0 | -657.2 | |
| 2.29 | -49.00 | 1.83 | -49.00 | -11.21 | 233.85 | 48.57 | 249.90 | 0.7855 | -792.5 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -9.94 | 233.35 | 48.08 | 251.25 | 0.7762 | -440.0 | -424.3 | |
| 3.52 | 11.45 | 2.79 | 9.07 | -11.24 | 233.49 | 48.21 | 249.72 | 0.7819 | -854.0 | -558.0 | |
| 0.00 | 2.11 | 0.00 | 1.69 | -12.97 | 233.53 | 48.26 | 247.64 | 0.7885 | -232.0 | -309.2 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -10.36 | 232.84 | 47.57 | 250.54 | 0.7723 | -415.0 | -407.2 | |
| 0.00 | 2.20 | 0.00 | 1.68 | -9.14 | 232.44 | 47.16 | 251.90 | 0.7639 | -487.0 | -402.3 | |
| 0.00 | 1.76 | 0.00 | 1.35 | -9.44 | 232.31 | 47.03 | 251.47 | 0.7636 | -551.0 | -409.5 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -10.05 | 232.11 | 46.83 | 250.64 | 0.7635 | -495.0 | -419.5 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -7.73 | 231.46 | 46.18 | 253.33 | 0.7486 | -598.0 | -482.8 | |
| 0.00 | 2.20 | 0.00 | 1.67 | -10.01 | 231.65 | 46.38 | 250.51 | 0.7585 | -707.0 | -628.4 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -10.13 | 231.59 | 46.31 | 250.33 | 0.7582 | -686.0 | -562.5 | |
| 0.00 | 1.32 | 0.00 | 0.96 | -16.88 | 226.47 | 41.20 | 239.39 | 0.7346 | -555.0 | -502.7 | |
| 0.00 | 1.67 | 0.00 | 0.88 | -8.60 | 171.80 | -13.47 | 138.61 | 0.3499 | -17.0 | -13.9 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -8.48 | 171.59 | -13.69 | 137.93 | 0.3508 | 5.0 | -6.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
