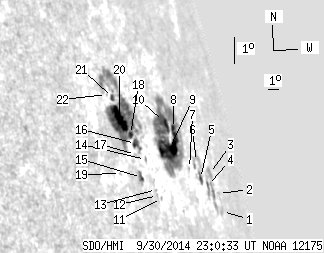

SDO HMI 2014-09-30 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.76 | 319.48 | 140.87 | 578.79 | 15.37 | 260.42 | 75.14 | 284.13 | 0.9611 | -138.2 | -50.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.91 | 0.00 | 8.36 | 12.50 | 266.65 | 81.37 | 281.58 | 0.9861 | 195.0 | 124.9 | |
| 0.00 | 1.67 | 0.00 | 4.82 | 13.06 | 266.66 | 81.38 | 282.14 | 0.9860 | 347.0 | 299.1 | |
| 0.00 | 3.70 | 0.00 | 9.97 | 13.76 | 265.92 | 80.65 | 282.80 | 0.9836 | 223.0 | 182.7 | |
| 0.97 | 14.09 | 2.45 | 36.71 | 13.48 | 265.14 | 79.86 | 282.45 | 0.9812 | -238.9 | -193.0 | |
| 2.47 | 4.58 | 5.81 | 10.80 | 13.79 | 264.34 | 79.06 | 282.71 | 0.9784 | -171.0 | -130.5 | |
| 0.00 | 7.66 | 0.00 | 17.97 | 14.32 | 264.36 | 79.09 | 283.25 | 0.9784 | -61.0 | -71.7 | |
| 0.00 | 0.53 | 0.00 | 1.14 | 14.24 | 263.15 | 77.87 | 283.09 | 0.9740 | -250.0 | -267.5 | |
| 2.03 | 141.82 | 4.09 | 272.51 | 15.57 | 262.43 | 77.16 | 284.41 | 0.9708 | 27.7 | -175.1 | |
| 36.12 | -8.00 | 68.25 | -8.00 | 15.07 | 261.30 | 76.02 | 283.84 | 0.9662 | -452.2 | 999999 | |
| 10.66 | -8.00 | 20.25 | -8.00 | 15.90 | 261.45 | 76.17 | 284.70 | 0.9667 | -494.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 2.06 | 13.77 | 259.06 | 73.79 | 282.37 | 0.9561 | 273.0 | 240.7 | |
| 0.00 | 0.88 | 0.00 | 1.45 | 13.90 | 258.73 | 73.45 | 282.49 | 0.9544 | 378.0 | 395.1 | |
| 0.00 | 0.53 | 0.00 | 0.87 | 14.08 | 258.77 | 73.50 | 282.68 | 0.9546 | 433.0 | 446.3 | |
| 0.00 | 1.50 | 0.00 | 2.41 | 15.05 | 258.42 | 73.14 | 283.68 | 0.9526 | 147.0 | 125.5 | |
| 2.20 | 5.20 | 3.39 | 7.99 | 14.58 | 257.59 | 72.31 | 283.16 | 0.9483 | 480.1 | 358.9 | |
| 3.08 | 131.69 | 4.81 | 199.49 | 15.61 | 257.86 | 72.58 | 284.25 | 0.9495 | 339.7 | 58.3 | |
| 0.00 | 0.97 | 0.00 | 1.49 | 15.30 | 257.58 | 72.30 | 283.91 | 0.9481 | 538.0 | 498.6 | |
| 2.73 | -16.00 | 4.20 | -16.00 | 15.92 | 257.61 | 72.33 | 284.57 | 0.9481 | 287.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.37 | 14.91 | 255.77 | 70.50 | 283.44 | 0.9380 | 390.0 | 402.3 | |
| 17.09 | -16.00 | 25.53 | -16.00 | 16.49 | 256.99 | 71.72 | 285.15 | 0.9447 | 505.7 | 999999 | |
| 1.41 | -16.00 | 2.09 | -16.00 | 17.16 | 256.90 | 71.63 | 285.86 | 0.9441 | 363.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.38 | 17.30 | 256.44 | 71.16 | 286.00 | 0.9415 | 449.0 | 467.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
