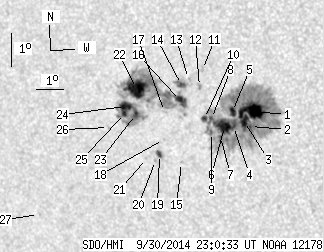

SDO HMI 2014-09-30 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.31 | 551.00 | 67.72 | 330.56 | -1.45 | 151.79 | -33.49 | 102.61 | 0.5672 | 268.3 | 159.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.34 | 335.71 | 15.49 | 198.29 | -1.38 | 153.65 | -31.63 | 103.29 | 0.5408 | 1339.0 | 446.1 | |
| 1.15 | -1.00 | 0.67 | -1.00 | -1.84 | 153.57 | -31.71 | 104.07 | 0.5437 | 820.7 | 999999 | |
| 6.43 | -1.00 | 3.80 | -1.00 | -1.70 | 153.36 | -31.92 | 103.72 | 0.5461 | 1035.2 | 999999 | |
| 0.97 | -1.00 | 0.57 | -1.00 | -1.87 | 152.97 | -32.31 | 103.85 | 0.5524 | 966.9 | 999999 | |
| 4.84 | -1.00 | 2.87 | -1.00 | -1.42 | 152.94 | -32.34 | 103.04 | 0.5510 | 874.5 | 999999 | |
| 11.63 | -1.00 | 6.92 | -1.00 | -1.89 | 152.64 | -32.63 | 103.73 | 0.5570 | 946.0 | 999999 | |
| 1.32 | -1.00 | 0.79 | -1.00 | -2.21 | 152.49 | -32.78 | 104.20 | 0.5603 | 617.9 | 999999 | |
| 1.85 | -1.00 | 1.11 | -1.00 | -1.68 | 152.18 | -33.09 | 103.15 | 0.5626 | 731.2 | 999999 | |
| 0.79 | -1.00 | 0.47 | -1.00 | -2.11 | 152.17 | -33.10 | 103.87 | 0.5644 | 374.2 | 999999 | |
| 2.47 | -1.00 | 1.48 | -1.00 | -1.70 | 151.93 | -33.35 | 103.06 | 0.5662 | 598.9 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.05 | -0.22 | 151.88 | -33.40 | 100.48 | 0.5620 | 679.0 | 582.5 | |
| 0.00 | 2.38 | 0.00 | 1.43 | -0.74 | 151.77 | -33.51 | 101.34 | 0.5652 | 821.0 | 664.9 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -0.52 | 151.37 | -33.91 | 100.81 | 0.5701 | 678.0 | 539.3 | |
| 2.64 | 8.63 | 1.60 | 5.21 | -0.72 | 151.11 | -34.16 | 101.05 | 0.5743 | 876.3 | 444.7 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -3.09 | 151.06 | -34.22 | 105.00 | 0.5836 | -702.0 | -520.9 | |
| 8.19 | 190.45 | 4.96 | 117.13 | -1.21 | 151.07 | -34.21 | 101.86 | 0.5765 | 720.3 | -408.0 | |
| 0.00 | 1.85 | 0.00 | 1.13 | -1.58 | 150.48 | -34.80 | 102.24 | 0.5859 | -292.0 | -204.8 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -2.43 | 150.42 | -34.86 | 103.63 | 0.5898 | 579.0 | 399.7 | |
| 2.29 | 4.23 | 1.41 | 2.60 | -2.90 | 150.26 | -35.02 | 104.32 | 0.5937 | 801.0 | 555.0 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -3.09 | 150.10 | -35.17 | 104.56 | 0.5965 | 639.0 | 543.1 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -3.06 | 149.77 | -35.50 | 104.35 | 0.6009 | 566.0 | 513.1 | |
| 27.75 | -16.00 | 17.11 | -16.00 | -0.95 | 149.46 | -35.82 | 100.81 | 0.5979 | -1044.1 | 999999 | |
| 1.85 | -16.00 | 1.14 | -16.00 | -1.74 | 149.41 | -35.87 | 102.08 | 0.6012 | -983.0 | 999999 | |
| 9.07 | -16.00 | 5.63 | -16.00 | -1.53 | 149.04 | -36.24 | 101.59 | 0.6055 | -895.1 | 999999 | |
| 2.73 | -16.00 | 1.70 | -16.00 | -1.74 | 149.00 | -36.28 | 101.92 | 0.6067 | -804.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -2.21 | 148.38 | -36.89 | 102.42 | 0.6165 | -522.0 | -373.7 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -5.07 | 145.54 | -39.73 | 105.60 | 0.6634 | 391.0 | 424.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
