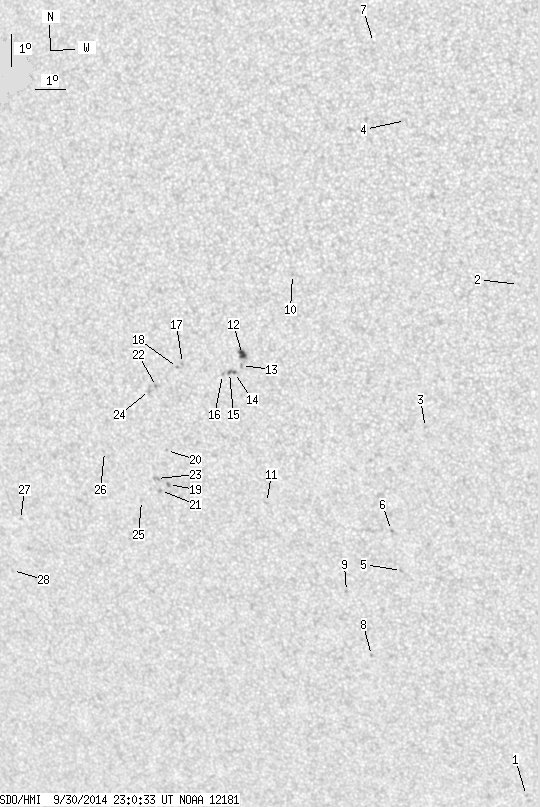

SDO HMI 2014-09-30 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.03 | 43.08 | 2.84 | 24.92 | -11.96 | 160.86 | -24.42 | 127.32 | 0.5135 | -95.1 | -22.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-30 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.42 | -23.91 | 169.36 | -15.91 | 153.63 | 0.5666 | 727.0 | 726.5 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -7.24 | 170.42 | -14.86 | 133.06 | 0.3497 | -10.0 | -6.6 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -11.82 | 167.23 | -18.05 | 135.87 | 0.4374 | 808.0 | 574.6 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -2.33 | 166.99 | -18.29 | 115.83 | 0.3498 | 13.0 | -3.6 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -16.45 | 166.04 | -19.24 | 140.81 | 0.5021 | 549.0 | 503.8 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -15.16 | 165.84 | -19.44 | 138.78 | 0.4894 | 748.0 | 708.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -0.00 | 166.00 | -19.28 | 108.56 | 0.3499 | -2.0 | -1.6 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -19.31 | 164.69 | -20.58 | 142.48 | 0.5470 | 784.0 | 709.8 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -17.22 | 164.11 | -21.16 | 139.14 | 0.5292 | 697.0 | 499.7 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -7.20 | 163.20 | -22.07 | 121.94 | 0.4412 | 671.0 | 519.7 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -14.44 | 161.74 | -23.54 | 132.30 | 0.5249 | 622.0 | 547.8 | |
| 3.79 | 5.64 | 2.14 | 3.19 | -9.77 | 161.38 | -23.89 | 124.50 | 0.4863 | -1023.6 | -773.6 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -10.12 | 161.32 | -23.95 | 125.02 | 0.4900 | -822.0 | -697.1 | |
| 0.62 | 3.26 | 0.35 | 1.86 | -10.35 | 161.07 | -24.21 | 125.13 | 0.4952 | -850.7 | -785.1 | |
| 0.62 | -14.00 | 0.35 | -14.00 | -10.36 | 160.90 | -24.37 | 124.95 | 0.4973 | -992.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -10.43 | 160.66 | -24.62 | 124.81 | 0.5009 | -654.0 | -554.1 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -10.15 | 159.33 | -25.94 | 122.94 | 0.5152 | 715.0 | 679.8 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -10.29 | 159.15 | -26.12 | 122.98 | 0.5185 | 834.0 | 632.7 | |
| 0.00 | 1.94 | 0.00 | 1.16 | -14.03 | 158.43 | -26.84 | 128.01 | 0.5582 | -888.0 | -762.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -12.94 | 158.50 | -26.78 | 126.48 | 0.5482 | -750.0 | -581.5 | |
| 0.00 | 1.67 | 0.00 | 1.00 | -14.24 | 158.13 | -27.15 | 128.00 | 0.5635 | -792.0 | -609.9 | |
| 0.00 | 1.94 | 0.00 | 1.13 | -10.93 | 158.37 | -26.90 | 123.23 | 0.5332 | 866.0 | 712.2 | |
| 0.00 | 2.91 | 0.00 | 1.74 | -13.86 | 158.04 | -27.24 | 127.36 | 0.5613 | -869.0 | -671.9 | |
| 0.00 | 3.35 | 0.00 | 1.96 | -11.07 | 158.12 | -27.16 | 123.20 | 0.5375 | 656.0 | 577.7 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -14.60 | 157.41 | -27.86 | 127.80 | 0.5746 | -639.0 | -543.0 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -13.10 | 156.32 | -28.96 | 124.58 | 0.5750 | -204.0 | -293.9 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -15.49 | 152.92 | -32.36 | 124.97 | 0.6317 | -705.0 | -544.8 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -17.19 | 152.30 | -32.98 | 126.69 | 0.6509 | -515.0 | -456.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
