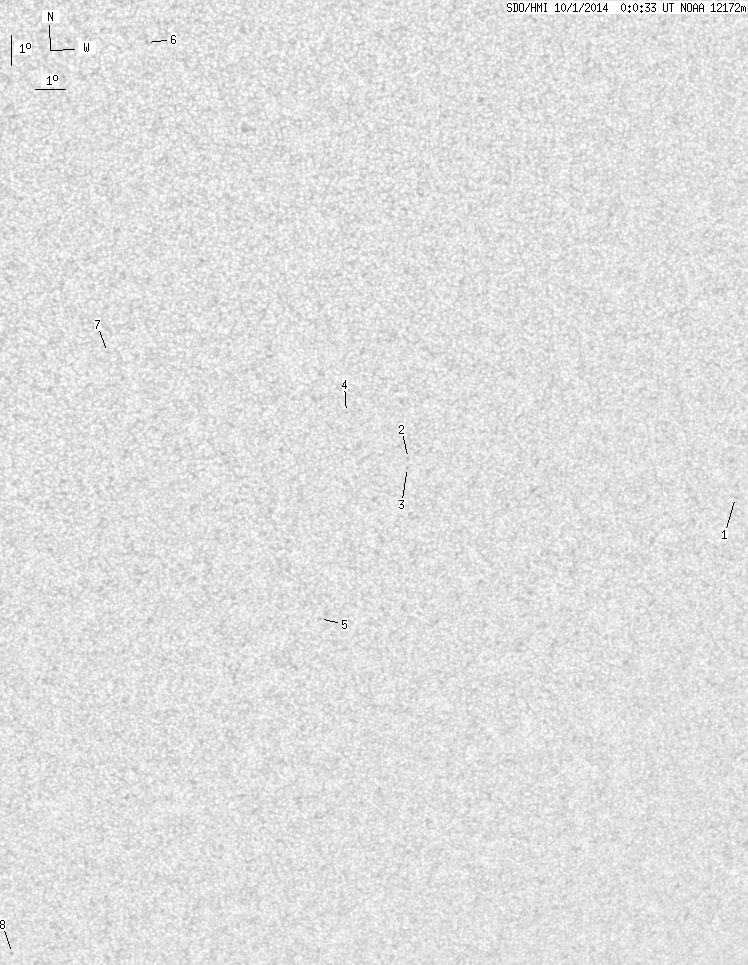

SDO HMI 2014-10-01 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.05 | 0.00 | 4.06 | -17.34 | 200.48 | 15.76 | 214.27 | 0.4915 | -430.9 | -338.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.66 | -17.44 | 214.28 | 29.56 | 229.99 | 0.6167 | 614.0 | 469.6 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -15.58 | 202.82 | 18.09 | 218.64 | 0.4811 | -698.0 | -464.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -15.87 | 202.81 | 18.09 | 218.24 | 0.4844 | -706.0 | -636.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.02 | 200.68 | 15.95 | 217.30 | 0.4419 | -746.0 | -578.7 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -20.78 | 200.39 | 15.66 | 208.86 | 0.5251 | -567.0 | -436.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -2.32 | 194.06 | 9.33 | 226.09 | 0.2260 | -801.0 | -620.7 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -11.90 | 193.04 | 8.31 | 203.96 | 0.3499 | 4.0 | 15.7 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -32.62 | 190.95 | 6.23 | 188.21 | 0.6425 | -547.0 | -420.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
