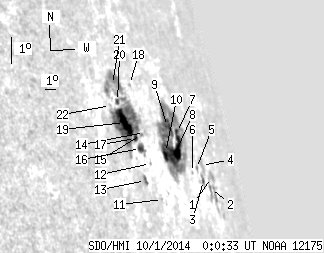

SDO HMI 2014-10-01 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.90 | 299.44 | 130.68 | 554.36 | 15.59 | 260.22 | 75.50 | 284.39 | 0.9627 | -151.2 | -42.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.73 | 0.00 | 15.92 | 13.77 | 265.81 | 81.09 | 282.85 | 0.9849 | 117.0 | 147.0 | |
| 0.62 | 11.98 | 1.63 | 32.60 | 13.50 | 265.19 | 80.47 | 282.52 | 0.9831 | -213.9 | -194.1 | |
| 0.00 | 3.35 | 0.00 | 8.23 | 13.85 | 264.39 | 79.67 | 282.81 | 0.9805 | 17.0 | -145.4 | |
| 0.00 | 6.34 | 0.00 | 16.01 | 14.28 | 264.66 | 79.93 | 283.27 | 0.9812 | 110.0 | 91.5 | |
| 0.00 | 1.85 | 0.00 | 4.36 | 14.29 | 263.79 | 79.07 | 283.22 | 0.9783 | -182.0 | -249.5 | |
| 0.00 | 0.26 | 0.00 | 0.59 | 14.24 | 263.08 | 78.36 | 283.13 | 0.9758 | -226.0 | -259.0 | |
| 1.76 | 132.68 | 3.70 | 263.96 | 15.58 | 262.35 | 77.62 | 284.45 | 0.9727 | 28.6 | -165.1 | |
| 23.61 | -7.00 | 47.03 | -7.00 | 15.04 | 261.54 | 76.82 | 283.85 | 0.9696 | -480.0 | 999999 | |
| 10.84 | -7.00 | 21.24 | -7.00 | 15.87 | 261.42 | 76.70 | 284.70 | 0.9689 | -518.0 | 999999 | |
| 9.60 | -7.00 | 17.75 | -7.00 | 15.18 | 260.36 | 75.63 | 283.93 | 0.9645 | -377.6 | 999999 | |
| 0.00 | 0.70 | 0.00 | 1.19 | 13.90 | 258.75 | 74.02 | 282.51 | 0.9572 | 432.0 | 388.1 | |
| 0.00 | 0.79 | 0.00 | 1.31 | 15.05 | 258.43 | 73.71 | 283.71 | 0.9554 | 194.0 | 186.6 | |
| 0.00 | 3.17 | 0.00 | 5.01 | 14.63 | 257.50 | 72.78 | 283.22 | 0.9508 | 500.0 | 416.4 | |
| 0.00 | 1.23 | 0.00 | 2.06 | 15.99 | 258.67 | 73.94 | 284.70 | 0.9564 | -380.0 | -337.8 | |
| 0.00 | 1.15 | 0.00 | 1.87 | 15.97 | 258.31 | 73.58 | 284.66 | 0.9546 | -340.0 | -342.1 | |
| 3.44 | 7.58 | 5.51 | 12.18 | 15.59 | 257.83 | 73.10 | 284.24 | 0.9522 | 352.3 | 197.1 | |
| 2.03 | 89.77 | 3.21 | 138.83 | 15.92 | 257.60 | 72.87 | 284.59 | 0.9510 | 224.3 | 85.4 | |
| 0.00 | 1.23 | 0.00 | 2.04 | 17.51 | 258.55 | 73.83 | 286.29 | 0.9555 | -241.0 | -276.2 | |
| 18.77 | -17.00 | 28.73 | -17.00 | 16.49 | 256.97 | 72.24 | 285.17 | 0.9476 | 515.3 | 999999 | |
| 1.23 | -17.00 | 1.88 | -17.00 | 17.16 | 256.88 | 72.16 | 285.87 | 0.9470 | 362.1 | 999999 | |
| 0.00 | 31.10 | 0.00 | 47.42 | 17.69 | 256.89 | 72.16 | 286.44 | 0.9470 | 108.0 | 81.7 | |
| 0.00 | 0.53 | 0.00 | 0.78 | 17.12 | 256.13 | 71.40 | 285.81 | 0.9429 | 543.0 | 503.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
