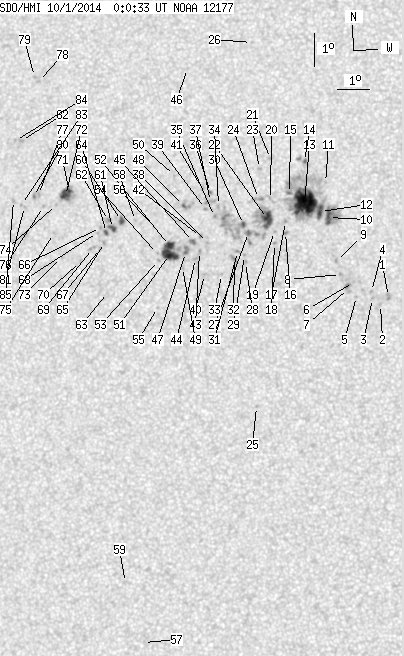

SDO HMI 2014-10-01 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.86 | 397.95 | 49.20 | 206.36 | 11.87 | 168.42 | -16.30 | 70.73 | 0.2927 | -53.3 | -78.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.52 | 0.00 | 1.78 | 9.76 | 173.20 | -11.53 | 74.41 | 0.2054 | -1068.0 | -848.5 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 9.51 | 172.96 | -11.77 | 75.84 | 0.2084 | -818.0 | -708.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 9.69 | 172.70 | -12.02 | 75.29 | 0.2132 | -873.0 | -684.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 9.90 | 172.66 | -12.06 | 74.37 | 0.2147 | -942.0 | -781.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 9.74 | 172.20 | -12.52 | 75.58 | 0.2217 | -622.0 | -474.5 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 10.15 | 172.09 | -12.63 | 73.86 | 0.2251 | -911.0 | -740.0 | |
| 0.00 | 4.32 | 0.00 | 2.20 | 9.97 | 171.94 | -12.78 | 74.81 | 0.2268 | -404.0 | -714.2 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 10.38 | 171.68 | -13.05 | 73.33 | 0.2329 | -797.0 | -678.5 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 10.80 | 171.53 | -13.19 | 71.77 | 0.2371 | -869.0 | -706.1 | |
| 5.11 | 145.89 | 2.61 | 74.86 | 12.09 | 171.22 | -13.50 | 67.12 | 0.2489 | -1255.5 | -400.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 13.14 | 171.07 | -13.65 | 63.48 | 0.2581 | -757.0 | -606.8 | |
| 5.46 | -10.00 | 2.80 | -10.00 | 12.26 | 170.96 | -13.76 | 66.83 | 0.2540 | -1059.3 | 999999 | |
| 36.47 | -10.00 | 18.72 | -10.00 | 12.52 | 170.44 | -14.29 | 66.60 | 0.2637 | -1229.3 | 999999 | |
| 0.53 | 5.64 | 0.27 | 2.90 | 13.76 | 170.37 | -14.36 | 62.44 | 0.2729 | -936.8 | -665.9 | |
| 0.44 | -10.00 | 0.23 | -10.00 | 12.78 | 169.95 | -14.78 | 66.34 | 0.2728 | -534.0 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.91 | 11.60 | 169.89 | -14.84 | 70.56 | 0.2672 | -914.0 | -804.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.93 | 169.87 | -14.86 | 69.40 | 0.2692 | -1018.0 | -800.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 11.26 | 169.56 | -15.17 | 72.12 | 0.2709 | 647.0 | 485.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 11.62 | 169.54 | -15.19 | 70.86 | 0.2729 | -839.0 | -650.9 | |
| 0.00 | 3.70 | 0.00 | 1.91 | 12.58 | 169.36 | -15.37 | 67.75 | 0.2808 | -647.0 | -582.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 13.82 | 169.28 | -15.45 | 63.80 | 0.2896 | 965.0 | 787.1 | |
| 10.48 | 30.31 | 5.41 | 15.64 | 12.01 | 169.29 | -15.43 | 69.78 | 0.2786 | -1124.1 | -395.9 | |
| 0.00 | 1.76 | 0.00 | 0.91 | 13.51 | 168.94 | -15.78 | 65.22 | 0.2926 | 858.0 | 681.8 | |
| 0.00 | 4.14 | 0.00 | 2.14 | 12.60 | 168.97 | -15.75 | 68.13 | 0.2868 | -655.0 | -565.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 6.35 | 169.19 | -15.53 | 90.55 | 0.2674 | 859.0 | 670.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 17.32 | 168.39 | -16.34 | 55.00 | 0.3293 | -709.0 | -530.3 | |
| 1.06 | 50.30 | 0.55 | 26.04 | 11.57 | 168.71 | -16.01 | 71.86 | 0.2857 | -670.4 | -26.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 10.66 | 168.67 | -16.06 | 75.00 | 0.2827 | 824.0 | 686.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.87 | 168.62 | -16.10 | 74.31 | 0.2842 | 925.0 | 759.2 | |
| 1.15 | -27.00 | 0.59 | -27.00 | 11.80 | 168.54 | -16.19 | 71.23 | 0.2895 | -808.2 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.00 | 10.98 | 168.40 | -16.33 | 74.10 | 0.2883 | 990.0 | 706.7 | |
| 0.00 | 3.88 | 0.00 | 2.00 | 10.74 | 168.31 | -16.41 | 74.99 | 0.2887 | 1174.0 | 932.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 10.28 | 167.92 | -16.80 | 76.82 | 0.2934 | 774.0 | 622.3 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 12.35 | 167.70 | -17.02 | 70.24 | 0.3052 | 830.0 | 731.0 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 12.01 | 167.60 | -17.13 | 71.40 | 0.3053 | 973.0 | 811.1 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 12.73 | 167.42 | -17.30 | 69.32 | 0.3115 | 891.0 | 728.8 | |
| 0.00 | 3.79 | 0.00 | 1.97 | 12.46 | 167.44 | -17.29 | 70.14 | 0.3099 | 866.0 | 767.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.22 | 167.42 | -17.30 | 74.05 | 0.3048 | 854.0 | 628.1 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 12.24 | 167.29 | -17.43 | 70.94 | 0.3111 | 1071.0 | 853.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.26 | 167.38 | -17.34 | 77.21 | 0.3021 | 894.0 | 762.8 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 12.84 | 167.16 | -17.57 | 69.23 | 0.3162 | 670.0 | 473.7 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 11.40 | 167.19 | -17.54 | 73.68 | 0.3092 | 1087.0 | 878.2 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 10.94 | 167.18 | -17.54 | 75.12 | 0.3076 | 928.0 | 697.6 | |
| 0.00 | 2.03 | 0.00 | 1.05 | 10.73 | 167.07 | -17.66 | 75.88 | 0.3087 | 971.0 | 795.7 | |
| 1.06 | 3.35 | 0.55 | 1.74 | 11.24 | 166.97 | -17.75 | 74.33 | 0.3120 | 1075.2 | 898.4 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 16.46 | 166.36 | -18.36 | 59.99 | 0.3504 | -1.0 | -1.2 | |
| 0.70 | 4.23 | 0.37 | 2.21 | 10.90 | 166.74 | -17.99 | 75.55 | 0.3146 | 1159.4 | 1037.9 | |
| 0.70 | 2.73 | 0.37 | 1.43 | 12.31 | 166.58 | -18.15 | 71.34 | 0.3226 | 911.0 | 771.8 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 10.45 | 166.67 | -18.06 | 77.02 | 0.3142 | 763.0 | 601.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 13.20 | 166.22 | -18.50 | 69.02 | 0.3324 | 825.0 | 684.6 | |
| 11.89 | 25.46 | 6.22 | 13.32 | 10.82 | 166.23 | -18.50 | 76.11 | 0.3225 | 1088.5 | 820.7 | |
| 5.46 | -51.00 | 2.86 | -51.00 | 11.09 | 166.21 | -18.52 | 75.29 | 0.3236 | 999.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 10.63 | 165.88 | -18.84 | 76.88 | 0.3274 | 696.0 | 531.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 10.84 | 165.84 | -18.89 | 76.28 | 0.3287 | 622.0 | 458.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 9.22 | 165.93 | -18.79 | 81.18 | 0.3232 | 786.0 | 562.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 11.65 | 165.69 | -19.04 | 73.97 | 0.3339 | 650.0 | 570.8 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -0.87 | 165.73 | -19.00 | 111.18 | 0.3506 | 13.0 | 1.1 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.80 | 165.06 | -19.67 | 73.93 | 0.3444 | 697.0 | 525.9 | |
| 0.00 | 2.38 | 0.00 | 1.26 | 0.92 | 165.16 | -19.57 | 105.79 | 0.3496 | 1.0 | 0.7 | |
| 2.20 | 3.96 | 1.16 | 2.10 | 11.79 | 164.60 | -20.12 | 74.26 | 0.3514 | -1002.3 | -784.9 | |
| 2.47 | 4.05 | 1.31 | 2.15 | 11.53 | 164.33 | -20.40 | 75.12 | 0.3549 | -1042.3 | -839.6 | |
| 0.00 | 2.73 | 0.00 | 1.45 | 11.77 | 164.18 | -20.55 | 74.55 | 0.3580 | -876.0 | -712.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 9.61 | 164.30 | -20.43 | 80.56 | 0.3504 | -6.0 | -1.5 | |
| 1.23 | 2.11 | 0.65 | 1.12 | 11.41 | 164.14 | -20.58 | 75.57 | 0.3574 | -998.7 | -791.1 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 11.10 | 164.10 | -20.63 | 76.43 | 0.3572 | -851.0 | -785.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 11.55 | 163.93 | -20.79 | 75.29 | 0.3611 | -632.0 | -599.4 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 10.92 | 163.98 | -20.75 | 77.00 | 0.3585 | -761.0 | -639.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 11.39 | 163.85 | -20.88 | 75.76 | 0.3620 | -577.0 | -442.1 | |
| 0.00 | 2.73 | 0.00 | 1.45 | 10.91 | 163.72 | -21.01 | 77.15 | 0.3626 | -632.0 | -572.8 | |
| 0.00 | 1.85 | 0.00 | 0.98 | 10.50 | 163.36 | -21.37 | 78.41 | 0.3673 | 769.0 | 607.1 | |
| 2.11 | 15.86 | 1.13 | 8.50 | 12.59 | 162.83 | -21.90 | 73.16 | 0.3820 | 1096.2 | 669.2 | |
| 6.34 | -71.00 | 3.40 | -71.00 | 12.46 | 162.70 | -22.02 | 73.55 | 0.3834 | 1099.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 10.59 | 162.72 | -22.00 | 78.40 | 0.3776 | 762.0 | 469.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 12.18 | 162.43 | -22.30 | 74.43 | 0.3866 | 710.0 | 620.8 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 11.30 | 162.40 | -22.32 | 76.68 | 0.3844 | 838.0 | 706.8 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 12.10 | 162.00 | -22.72 | 74.84 | 0.3930 | 808.0 | 545.2 | |
| 0.00 | 1.67 | 0.00 | 0.90 | 12.46 | 161.81 | -22.92 | 74.06 | 0.3972 | 820.0 | 614.7 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 15.87 | 161.44 | -23.28 | 66.18 | 0.4174 | 803.0 | 740.5 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 16.01 | 161.29 | -23.44 | 65.97 | 0.4204 | 786.0 | 660.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 12.39 | 161.64 | -23.08 | 74.31 | 0.3994 | 822.0 | 736.4 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 12.07 | 161.37 | -23.35 | 75.21 | 0.4026 | 725.0 | 539.2 | |
| 0.00 | 2.20 | 0.00 | 1.20 | 14.06 | 161.07 | -23.65 | 70.62 | 0.4143 | 860.0 | 707.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 12.13 | 161.27 | -23.46 | 75.12 | 0.4044 | 688.0 | 629.4 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 14.05 | 160.87 | -23.85 | 70.76 | 0.4173 | 706.0 | 581.4 | |
| 0.00 | 2.47 | 0.00 | 1.34 | 12.24 | 160.99 | -23.74 | 74.99 | 0.4090 | 740.0 | 498.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
