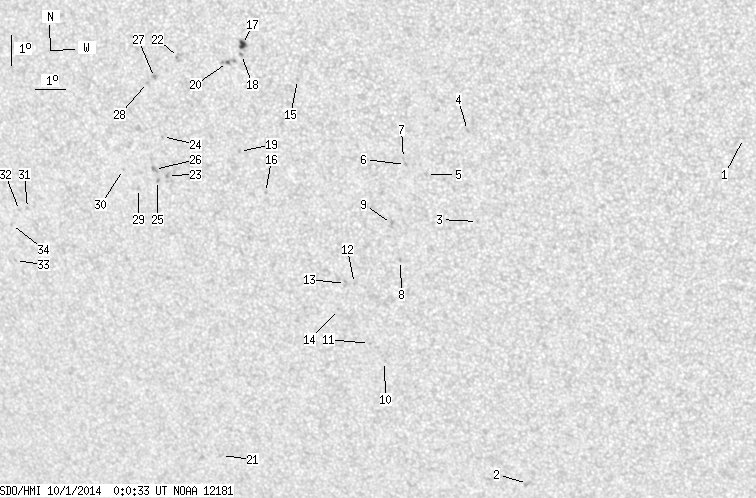

SDO HMI 2014-10-01 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.05 | 59.82 | 2.29 | 34.73 | -14.28 | 161.84 | -22.89 | 133.09 | 0.5207 | 15.7 | 63.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.65 | -12.24 | 177.24 | -7.48 | 158.58 | 0.3500 | 18.0 | 0.3 | |
| 0.00 | 3.26 | 0.00 | 1.95 | -23.85 | 169.46 | -15.26 | 154.52 | 0.5618 | 354.0 | 418.4 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -15.11 | 168.69 | -16.04 | 144.05 | 0.4562 | 701.0 | 440.6 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -12.20 | 168.58 | -16.15 | 139.65 | 0.4217 | 799.0 | 655.3 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -13.65 | 167.15 | -17.57 | 139.47 | 0.4533 | 591.0 | 420.9 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -13.35 | 166.50 | -18.23 | 137.98 | 0.4566 | 653.0 | 543.0 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -13.16 | 166.45 | -18.28 | 137.62 | 0.4550 | 641.0 | 535.2 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -16.47 | 166.05 | -18.68 | 141.65 | 0.4970 | 736.0 | 543.2 | |
| 0.00 | 3.70 | 0.00 | 2.09 | -15.27 | 165.87 | -18.86 | 139.79 | 0.4849 | 735.0 | 572.1 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -19.84 | 165.12 | -19.60 | 144.42 | 0.5445 | 646.0 | 553.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -19.26 | 164.69 | -20.04 | 143.16 | 0.5415 | 734.0 | 623.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -17.29 | 164.43 | -20.30 | 140.39 | 0.5216 | 596.0 | 480.9 | |
| 0.00 | 2.82 | 0.00 | 1.64 | -17.30 | 164.12 | -20.60 | 139.99 | 0.5246 | 619.0 | 530.3 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -18.17 | 163.78 | -20.95 | 140.62 | 0.5375 | 722.0 | 532.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -10.79 | 163.17 | -21.56 | 129.09 | 0.4669 | 667.0 | 567.8 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -14.45 | 161.76 | -22.96 | 133.01 | 0.5188 | 703.0 | 587.5 | |
| 3.35 | 5.46 | 1.89 | 3.08 | -9.78 | 161.43 | -23.29 | 125.20 | 0.4789 | -1060.7 | -819.7 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -10.09 | 161.37 | -23.35 | 125.67 | 0.4823 | -838.0 | -662.3 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -13.17 | 161.02 | -23.70 | 130.22 | 0.5146 | -726.0 | -535.8 | |
| 0.70 | 5.20 | 0.40 | 2.95 | -10.37 | 160.88 | -23.84 | 125.57 | 0.4908 | -885.4 | -679.6 | |
| 0.00 | 2.20 | 0.00 | 1.41 | -23.34 | 158.82 | -25.91 | 140.72 | 0.6359 | 708.0 | 586.0 | |
| 0.00 | 4.58 | 0.00 | 2.63 | -10.29 | 159.24 | -25.48 | 123.64 | 0.5105 | 544.0 | 662.5 | |
| 0.00 | 1.76 | 0.00 | 1.04 | -14.07 | 158.46 | -26.26 | 128.67 | 0.5519 | -895.0 | -746.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -12.83 | 158.44 | -26.28 | 126.81 | 0.5414 | -588.0 | -630.7 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -14.25 | 158.10 | -26.63 | 128.55 | 0.5576 | -855.0 | -664.9 | |
| 0.00 | 2.73 | 0.00 | 1.62 | -13.90 | 158.04 | -26.69 | 127.98 | 0.5553 | -971.0 | -743.9 | |
| 0.00 | 1.85 | 0.00 | 1.08 | -10.96 | 158.37 | -26.36 | 123.83 | 0.5268 | 876.0 | 722.4 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -11.14 | 158.11 | -26.62 | 123.84 | 0.5314 | 703.0 | 555.4 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -14.54 | 157.39 | -27.33 | 128.25 | 0.5681 | -704.0 | -535.4 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -13.96 | 156.95 | -27.78 | 126.97 | 0.5682 | -728.0 | -572.6 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -15.43 | 153.29 | -31.43 | 125.67 | 0.6210 | -756.0 | -576.1 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -15.52 | 152.99 | -31.74 | 125.52 | 0.6251 | -687.0 | -557.8 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -17.17 | 152.53 | -32.20 | 127.32 | 0.6424 | -715.0 | -551.6 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -15.99 | 152.61 | -32.12 | 125.84 | 0.6328 | -485.0 | -386.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
