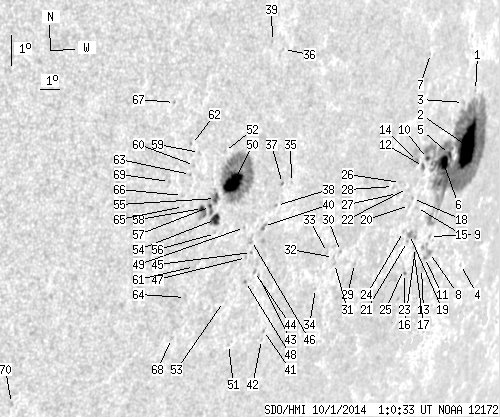

SDO HMI 2014-10-01 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.33 | 577.68 | 104.52 | 621.06 | -11.04 | 244.35 | 60.17 | 253.65 | 0.8850 | 47.6 | 96.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.95 | -9.00 | 248.16 | 63.99 | 256.93 | 0.9130 | 414.0 | 360.7 | |
| 44.85 | 331.38 | 54.88 | 398.66 | -10.74 | 248.23 | 64.05 | 255.07 | 0.9160 | 531.0 | 213.9 | |
| 0.00 | 1.76 | 0.00 | 2.07 | -9.29 | 247.43 | 63.25 | 256.45 | 0.9083 | 268.0 | 256.6 | |
| 0.00 | 0.26 | 0.00 | 0.35 | -14.60 | 249.57 | 65.39 | 251.31 | 0.9304 | 246.0 | 258.3 | |
| 1.94 | -2.00 | 2.27 | -2.00 | -10.86 | 247.03 | 62.85 | 254.66 | 0.9080 | 168.4 | 999999 | |
| 8.11 | -2.00 | 9.42 | -2.00 | -11.08 | 246.71 | 62.53 | 254.35 | 0.9060 | 613.7 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.56 | -7.49 | 244.78 | 60.61 | 257.81 | 0.8857 | 379.0 | 339.8 | |
| 0.97 | 9.25 | 1.17 | 11.02 | -13.94 | 246.99 | 62.82 | 251.36 | 0.9129 | 403.7 | 132.9 | |
| 0.00 | 1.41 | 0.00 | 1.67 | -13.40 | 246.74 | 62.57 | 251.87 | 0.9103 | -65.0 | -19.2 | |
| 1.76 | -2.00 | 1.96 | -2.00 | -10.83 | 245.57 | 61.39 | 254.34 | 0.8974 | 639.0 | 999999 | |
| 0.35 | -8.00 | 0.42 | -8.00 | -14.06 | 246.72 | 62.54 | 251.15 | 0.9113 | 92.2 | 999999 | |
| 1.15 | 3.08 | 1.27 | 3.42 | -11.06 | 245.39 | 61.21 | 254.04 | 0.8965 | 655.0 | 598.7 | |
| 0.00 | 3.35 | 0.00 | 4.00 | -14.41 | 246.68 | 62.51 | 250.78 | 0.9116 | 487.0 | 403.7 | |
| 0.79 | 12.34 | 0.86 | 13.35 | -10.86 | 244.94 | 60.76 | 254.15 | 0.8927 | 772.9 | 487.3 | |
| 0.00 | 1.67 | 0.00 | 1.88 | -12.35 | 245.43 | 61.25 | 252.65 | 0.8991 | 351.0 | 338.3 | |
| 0.00 | 1.85 | 0.00 | 2.14 | -13.89 | 245.96 | 61.79 | 251.14 | 0.9058 | -262.0 | -149.7 | |
| 0.00 | 0.70 | 0.00 | 0.81 | -13.65 | 245.79 | 61.61 | 251.35 | 0.9041 | -236.0 | -195.0 | |
| 0.00 | 1.15 | 0.00 | 1.27 | -12.03 | 245.05 | 60.87 | 252.90 | 0.8957 | 575.0 | 553.4 | |
| 1.41 | 7.58 | 1.59 | 8.59 | -13.19 | 245.32 | 61.15 | 251.72 | 0.8999 | 484.9 | 113.7 | |
| 0.00 | 2.11 | 0.00 | 2.33 | -12.23 | 244.93 | 60.76 | 252.65 | 0.8953 | 708.0 | 588.2 | |
| 0.00 | 0.97 | 0.00 | 1.09 | -13.40 | 245.29 | 61.11 | 251.48 | 0.9001 | -284.0 | -212.5 | |
| 0.00 | 0.44 | 0.00 | 0.48 | -11.66 | 244.59 | 60.42 | 253.18 | 0.8917 | 303.0 | 297.4 | |
| 0.53 | 1.41 | 0.61 | 1.62 | -14.45 | 245.57 | 61.39 | 250.43 | 0.9041 | -368.7 | -344.4 | |
| 0.00 | 0.97 | 0.00 | 1.07 | -13.05 | 244.88 | 60.71 | 251.75 | 0.8964 | -218.0 | -178.3 | |
| 0.00 | 0.88 | 0.00 | 1.01 | -14.31 | 245.44 | 61.26 | 250.55 | 0.9029 | -321.0 | -348.3 | |
| 0.00 | 1.23 | 0.00 | 1.31 | -11.42 | 244.07 | 59.90 | 253.30 | 0.8872 | 316.0 | 266.7 | |
| 0.00 | 2.47 | 0.00 | 2.63 | -11.76 | 244.01 | 59.83 | 252.92 | 0.8874 | 365.0 | 303.7 | |
| 0.00 | 0.79 | 0.00 | 0.83 | -11.50 | 243.67 | 59.50 | 253.11 | 0.8843 | -85.0 | -68.0 | |
| 0.00 | 1.23 | 0.00 | 1.27 | -13.77 | 242.18 | 58.01 | 250.18 | 0.8775 | 176.0 | 175.1 | |
| 0.00 | 1.15 | 0.00 | 1.14 | -13.29 | 241.19 | 57.01 | 250.41 | 0.8685 | 439.0 | 367.5 | |
| 0.00 | 1.32 | 0.00 | 1.31 | -13.65 | 240.98 | 56.80 | 249.95 | 0.8676 | 296.0 | 238.3 | |
| 0.00 | 0.79 | 0.00 | 0.78 | -13.45 | 240.85 | 56.67 | 250.13 | 0.8661 | 414.0 | 436.8 | |
| 0.00 | 0.62 | 0.00 | 0.60 | -13.25 | 240.44 | 56.26 | 250.23 | 0.8622 | 433.0 | 437.4 | |
| 0.00 | 0.79 | 0.00 | 0.77 | -14.36 | 240.18 | 56.00 | 248.90 | 0.8629 | 407.0 | 310.1 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -10.78 | 237.75 | 53.57 | 252.17 | 0.8324 | -450.0 | -417.3 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -6.54 | 236.49 | 52.31 | 256.80 | 0.8097 | -426.0 | -408.3 | |
| 0.00 | 1.32 | 0.00 | 1.16 | -10.76 | 237.28 | 53.11 | 252.04 | 0.8281 | -486.0 | -477.7 | |
| 0.00 | 0.97 | 0.00 | 0.85 | -11.44 | 237.15 | 52.98 | 251.21 | 0.8287 | -680.0 | -588.4 | |
| 0.00 | 0.70 | 0.00 | 0.58 | -6.24 | 235.90 | 51.72 | 257.00 | 0.8031 | -420.0 | -310.6 | |
| 0.00 | 2.91 | 0.00 | 2.54 | -12.05 | 236.66 | 52.48 | 250.33 | 0.8259 | -480.0 | -324.8 | |
| 0.00 | 0.97 | 0.00 | 0.89 | -15.46 | 237.77 | 53.59 | 246.84 | 0.8458 | -454.0 | -383.4 | |
| 0.00 | 0.88 | 0.00 | 0.82 | -15.75 | 237.77 | 53.60 | 246.52 | 0.8467 | -406.0 | -345.3 | |
| 0.00 | 0.79 | 0.00 | 0.70 | -13.62 | 236.87 | 52.69 | 248.60 | 0.8324 | -335.0 | -279.2 | |
| 0.00 | 1.76 | 0.00 | 1.56 | -13.47 | 236.62 | 52.44 | 248.68 | 0.8297 | -436.0 | -399.6 | |
| 0.00 | 0.97 | 0.00 | 0.84 | -12.83 | 236.27 | 52.10 | 249.29 | 0.8247 | -407.0 | -372.7 | |
| 0.00 | 1.76 | 0.00 | 1.53 | -12.44 | 236.16 | 51.99 | 249.70 | 0.8225 | -490.0 | -428.0 | |
| 0.00 | 0.53 | 0.00 | 0.46 | -12.97 | 236.06 | 51.89 | 249.05 | 0.8231 | -625.0 | -518.8 | |
| 0.00 | 1.15 | 0.00 | 1.00 | -13.75 | 236.25 | 52.07 | 248.22 | 0.8272 | -549.0 | -480.8 | |
| 0.00 | 1.06 | 0.00 | 0.90 | -11.99 | 235.69 | 51.51 | 250.06 | 0.8167 | -568.0 | -502.4 | |
| 24.14 | 116.74 | 19.98 | 96.89 | -10.49 | 234.78 | 50.60 | 251.51 | 0.8034 | -792.7 | -213.0 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -15.74 | 236.06 | 51.88 | 245.87 | 0.8319 | -228.0 | -209.2 | |
| 0.00 | 1.32 | 0.00 | 1.07 | -9.47 | 234.13 | 49.95 | 252.52 | 0.7939 | -101.0 | -143.9 | |
| 0.00 | 0.44 | 0.00 | 0.38 | -14.29 | 235.32 | 51.14 | 247.24 | 0.8205 | -230.0 | -249.8 | |
| 6.43 | 24.32 | 5.29 | 19.90 | -11.59 | 234.17 | 50.00 | 249.98 | 0.8009 | -581.4 | -594.5 | |
| 2.64 | -54.00 | 2.16 | -54.00 | -10.92 | 234.01 | 49.84 | 250.72 | 0.7972 | -805.4 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -12.04 | 234.28 | 50.11 | 249.48 | 0.8034 | -442.0 | -413.3 | |
| 1.15 | -54.00 | 0.93 | -54.00 | -11.15 | 233.83 | 49.65 | 250.37 | 0.7961 | -790.5 | 999999 | |
| 2.11 | 8.55 | 1.71 | 6.92 | -11.18 | 233.45 | 49.28 | 250.20 | 0.7925 | -805.5 | -598.0 | |
| 0.00 | 1.23 | 0.00 | 0.98 | -9.39 | 232.94 | 48.76 | 252.19 | 0.7815 | -522.0 | -374.7 | |
| 0.00 | 0.70 | 0.00 | 0.56 | -9.78 | 232.78 | 48.61 | 251.66 | 0.7811 | -471.0 | -460.9 | |
| 0.00 | 1.41 | 0.00 | 1.16 | -13.02 | 233.53 | 49.36 | 248.04 | 0.7994 | -186.0 | -288.8 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -9.10 | 232.52 | 48.34 | 252.40 | 0.7762 | -574.0 | -507.6 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -10.05 | 232.65 | 48.48 | 251.28 | 0.7806 | -583.0 | -519.1 | |
| 0.00 | 2.73 | 0.00 | 2.25 | -13.98 | 233.38 | 49.20 | 246.83 | 0.8013 | -111.0 | -147.8 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -11.03 | 232.53 | 48.36 | 250.03 | 0.7827 | -641.0 | -501.7 | |
| 0.00 | 1.32 | 0.00 | 1.04 | -10.68 | 232.41 | 48.24 | 250.41 | 0.7803 | -535.0 | -419.3 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -7.71 | 231.52 | 47.34 | 253.78 | 0.7613 | -553.0 | -447.9 | |
| 0.00 | 1.23 | 0.00 | 1.02 | -15.27 | 233.10 | 48.92 | 245.21 | 0.8033 | -203.0 | -286.1 | |
| 0.00 | 1.15 | 0.00 | 0.89 | -10.18 | 231.71 | 47.54 | 250.76 | 0.7714 | -657.0 | -581.5 | |
| 0.00 | 1.67 | 0.00 | 1.24 | -16.77 | 226.36 | 42.19 | 240.10 | 0.7441 | -662.0 | -553.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
