SDO HMI 2014-10-01 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.74 | 104.41 | 16.23 | 74.75 | -9.80 | 140.86 | -43.32 | 110.53 | 0.7241 | 711.6 | 326.0 | |
|
previous
or next observation for the same group /

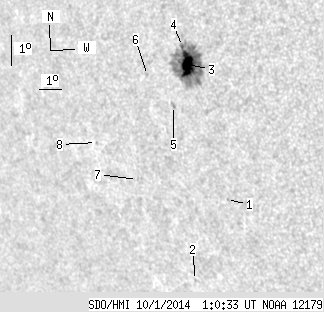

back to the solar disc SDO HMI 2014-10-01 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.26 | -13.86 | 141.79 | -42.38 | 116.20 | 0.7317 | 520.0 | 528.8 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -16.63 | 139.73 | -44.44 | 118.52 | 0.7658 | 484.0 | 398.1 | |
| 22.12 | 98.15 | 15.79 | 70.05 | -9.67 | 140.98 | -43.20 | 110.42 | 0.7223 | 971.1 | 341.7 | |
| 0.62 | -3.00 | 0.44 | -3.00 | -9.12 | 140.85 | -43.32 | 109.64 | 0.7216 | 593.6 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.87 | -11.02 | 140.14 | -44.03 | 111.79 | 0.7370 | 623.0 | 515.0 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -10.16 | 139.19 | -44.99 | 110.27 | 0.7441 | -186.0 | -168.4 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -13.54 | 138.01 | -46.16 | 113.95 | 0.7696 | -588.0 | -514.0 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -12.51 | 136.41 | -47.76 | 112.00 | 0.7819 | -511.0 | -452.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
