SDO HMI 2014-10-01 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.14 | 588.10 | 106.89 | 643.91 | -11.13 | 244.32 | 60.69 | 253.69 | 0.8891 | 43.5 | 103.7 | |
|
previous
or next observation for the same group /

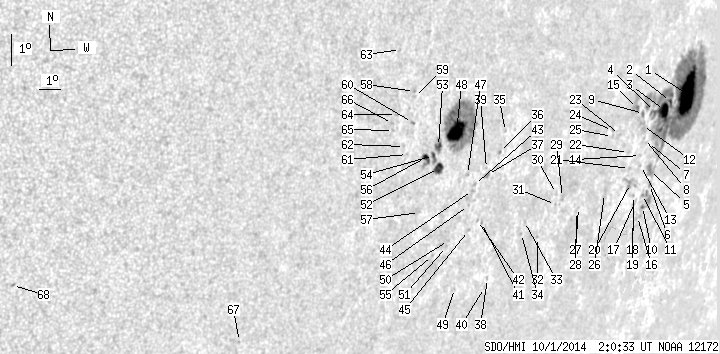

back to the solar disc SDO HMI 2014-10-01 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.24 | 322.69 | 51.51 | 396.28 | -10.74 | 248.25 | 64.62 | 255.20 | 0.9198 | 533.1 | 207.8 | |
| 1.41 | -1.00 | 1.69 | -1.00 | -10.84 | 247.09 | 63.46 | 254.83 | 0.9121 | 68.8 | 999999 | |
| 10.93 | -1.00 | 12.95 | -1.00 | -11.08 | 246.77 | 63.14 | 254.49 | 0.9103 | 632.6 | 999999 | |
| 2.20 | -1.00 | 2.56 | -1.00 | -11.04 | 246.08 | 62.45 | 254.37 | 0.9054 | 642.4 | 999999 | |
| 2.56 | 9.69 | 3.05 | 11.61 | -12.94 | 246.52 | 62.90 | 252.45 | 0.9117 | 436.2 | 305.9 | |
| 0.62 | 2.03 | 0.75 | 2.45 | -13.40 | 246.74 | 63.11 | 252.01 | 0.9139 | -52.9 | -22.2 | |
| 0.00 | 0.79 | 0.00 | 0.92 | -12.00 | 245.98 | 62.36 | 253.32 | 0.9064 | 473.0 | 374.8 | |
| 0.00 | 0.97 | 0.00 | 1.11 | -11.85 | 245.72 | 62.10 | 253.42 | 0.9043 | 501.0 | 414.2 | |
| 0.62 | 2.47 | 0.69 | 2.78 | -11.02 | 245.34 | 61.72 | 254.21 | 0.9001 | 667.0 | 627.7 | |
| 0.70 | 9.69 | 0.85 | 11.81 | -14.08 | 246.58 | 62.96 | 251.25 | 0.9141 | 61.2 | 255.9 | |
| 0.35 | -10.00 | 0.42 | -10.00 | -13.68 | 246.39 | 62.76 | 251.62 | 0.9121 | -177.8 | 999999 | |
| 0.00 | 10.49 | 0.00 | 11.89 | -11.41 | 245.42 | 61.80 | 253.81 | 0.9013 | 557.0 | 516.1 | |
| 0.00 | 0.79 | 0.00 | 0.92 | -12.70 | 245.81 | 62.19 | 252.52 | 0.9064 | 394.0 | 416.1 | |
| 0.00 | 0.53 | 0.00 | 0.61 | -12.37 | 245.67 | 62.05 | 252.84 | 0.9048 | 304.0 | 265.8 | |
| 1.06 | 9.96 | 1.17 | 10.98 | -10.82 | 244.88 | 61.26 | 254.32 | 0.8964 | 755.4 | 520.7 | |
| 0.00 | 3.44 | 0.00 | 4.15 | -14.37 | 246.39 | 62.76 | 250.88 | 0.9133 | 171.0 | 203.9 | |
| 0.00 | 0.26 | 0.00 | 0.31 | -13.82 | 245.98 | 62.36 | 251.36 | 0.9096 | -157.0 | -108.3 | |
| 0.00 | 0.97 | 0.00 | 1.14 | -13.94 | 245.91 | 62.28 | 251.21 | 0.9093 | -139.0 | -105.0 | |
| 0.00 | 0.88 | 0.00 | 1.03 | -13.64 | 245.76 | 62.14 | 251.50 | 0.9077 | -133.0 | -155.8 | |
| 0.00 | 10.22 | 0.00 | 11.76 | -13.22 | 245.38 | 61.75 | 251.85 | 0.9043 | 582.0 | 105.2 | |
| 0.00 | 1.15 | 0.00 | 1.30 | -12.72 | 245.10 | 61.47 | 252.31 | 0.9014 | 195.0 | 237.7 | |
| 0.00 | 1.41 | 0.00 | 1.58 | -12.19 | 244.81 | 61.19 | 252.81 | 0.8983 | 475.0 | 442.8 | |
| 0.00 | 1.06 | 0.00 | 1.15 | -11.54 | 244.00 | 60.37 | 253.31 | 0.8911 | 407.0 | 391.8 | |
| 0.00 | 0.79 | 0.00 | 0.84 | -11.36 | 243.50 | 59.87 | 253.37 | 0.8869 | -264.0 | -227.9 | |
| 0.00 | 1.76 | 0.00 | 1.88 | -11.55 | 243.57 | 59.94 | 253.17 | 0.8878 | -239.0 | -129.4 | |
| 0.00 | 5.38 | 0.00 | 5.87 | -13.37 | 243.77 | 60.15 | 251.25 | 0.8929 | -56.0 | -82.5 | |
| 0.00 | 0.53 | 0.00 | 0.55 | -13.65 | 242.30 | 58.67 | 250.51 | 0.8824 | 224.0 | 200.0 | |
| 0.00 | 1.32 | 0.00 | 1.38 | -13.77 | 242.22 | 58.60 | 250.36 | 0.8821 | 366.0 | 196.0 | |
| 0.00 | 3.52 | 0.00 | 3.55 | -13.22 | 241.19 | 57.56 | 250.66 | 0.8727 | 264.0 | 216.2 | |
| 0.00 | 1.50 | 0.00 | 1.49 | -13.06 | 240.78 | 57.15 | 250.72 | 0.8691 | 377.0 | 322.1 | |
| 0.00 | 0.70 | 0.00 | 0.70 | -13.41 | 240.85 | 57.23 | 250.35 | 0.8705 | 421.0 | 416.2 | |
| 0.00 | 0.79 | 0.00 | 0.78 | -14.39 | 240.20 | 56.57 | 249.06 | 0.8676 | 312.0 | 262.3 | |
| 0.00 | 1.06 | 0.00 | 1.01 | -13.78 | 239.25 | 55.62 | 249.42 | 0.8582 | 236.0 | 246.3 | |
| 0.00 | 1.32 | 0.00 | 1.27 | -14.16 | 239.22 | 55.59 | 248.99 | 0.8590 | 266.0 | 195.1 | |
| 0.00 | 0.79 | 0.00 | 0.71 | -10.76 | 237.30 | 53.67 | 252.23 | 0.8333 | -675.0 | -616.4 | |
| 0.00 | 1.50 | 0.00 | 1.34 | -11.40 | 237.16 | 53.53 | 251.44 | 0.8337 | -642.0 | -593.9 | |
| 0.00 | 3.70 | 0.00 | 3.28 | -12.05 | 236.72 | 53.09 | 250.55 | 0.8315 | -496.0 | -276.3 | |
| 0.00 | 1.41 | 0.00 | 1.32 | -15.46 | 237.86 | 54.23 | 247.07 | 0.8512 | -434.0 | -346.1 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -11.85 | 236.61 | 52.99 | 250.74 | 0.8300 | -535.0 | -474.7 | |
| 0.00 | 0.79 | 0.00 | 0.75 | -15.75 | 237.81 | 54.18 | 246.74 | 0.8516 | -422.0 | -349.7 | |
| 0.00 | 1.15 | 0.00 | 1.03 | -13.58 | 236.87 | 53.25 | 248.84 | 0.8373 | -265.0 | -252.7 | |
| 0.00 | 0.88 | 0.00 | 0.79 | -13.49 | 236.64 | 53.01 | 248.86 | 0.8349 | -498.0 | -440.8 | |
| 0.00 | 1.50 | 0.00 | 1.31 | -12.31 | 236.13 | 52.50 | 250.05 | 0.8268 | -505.0 | -412.8 | |
| 0.00 | 1.59 | 0.00 | 1.39 | -12.49 | 236.08 | 52.45 | 249.81 | 0.8269 | -536.0 | -415.2 | |
| 0.00 | 1.59 | 0.00 | 1.41 | -13.77 | 236.27 | 52.64 | 248.40 | 0.8324 | -611.0 | -422.7 | |
| 0.00 | 0.44 | 0.00 | 0.39 | -12.96 | 236.01 | 52.39 | 249.25 | 0.8277 | -337.0 | -421.6 | |
| 0.00 | 1.32 | 0.00 | 1.14 | -11.95 | 235.67 | 52.05 | 250.30 | 0.8216 | -516.0 | -420.9 | |
| 24.41 | 117.64 | 20.45 | 98.80 | -10.51 | 234.77 | 51.14 | 251.68 | 0.8088 | -793.7 | -219.0 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -15.62 | 236.18 | 52.56 | 246.28 | 0.8373 | -436.0 | -378.7 | |
| 0.00 | 0.79 | 0.00 | 0.69 | -14.00 | 235.32 | 51.70 | 247.80 | 0.8246 | -467.0 | -429.1 | |
| 0.00 | 0.97 | 0.00 | 0.84 | -14.19 | 235.28 | 51.66 | 247.57 | 0.8248 | -453.0 | -383.1 | |
| 6.17 | 13.31 | 5.14 | 11.05 | -11.62 | 234.16 | 50.53 | 250.15 | 0.8061 | -599.9 | -515.3 | |
| 3.08 | 8.72 | 2.55 | 7.20 | -10.91 | 233.99 | 50.36 | 250.93 | 0.8023 | -793.9 | -645.1 | |
| 1.32 | -52.00 | 1.09 | -52.00 | -11.17 | 233.81 | 50.18 | 250.55 | 0.8014 | -735.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -14.41 | 234.66 | 51.03 | 247.06 | 0.8199 | -394.0 | -357.3 | |
| 2.47 | 8.46 | 2.02 | 6.93 | -11.20 | 233.43 | 49.81 | 250.37 | 0.7978 | -776.0 | -544.8 | |
| 0.00 | 1.23 | 0.00 | 1.03 | -12.95 | 233.59 | 49.96 | 248.36 | 0.8050 | -662.0 | -444.9 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -9.05 | 232.47 | 48.84 | 252.63 | 0.7813 | -483.0 | -412.2 | |
| 0.00 | 1.32 | 0.00 | 1.05 | -9.21 | 232.50 | 48.87 | 252.45 | 0.7821 | -138.0 | -213.9 | |
| 0.00 | 1.67 | 0.00 | 1.33 | -10.03 | 232.56 | 48.94 | 251.47 | 0.7853 | -648.0 | -557.1 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -11.03 | 232.54 | 48.91 | 250.25 | 0.7883 | -594.0 | -562.3 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -10.76 | 232.34 | 48.72 | 250.50 | 0.7854 | -544.0 | -511.2 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -7.68 | 231.59 | 47.97 | 254.04 | 0.7679 | -459.0 | -371.4 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -9.71 | 231.76 | 48.13 | 251.57 | 0.7760 | -600.0 | -587.5 | |
| 0.00 | 1.15 | 0.00 | 0.90 | -10.20 | 231.72 | 48.09 | 250.95 | 0.7772 | -632.0 | -613.0 | |
| 0.00 | 1.15 | 0.00 | 0.89 | -9.97 | 231.63 | 48.00 | 251.19 | 0.7755 | -612.0 | -473.2 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -16.43 | 226.40 | 42.78 | 240.84 | 0.7483 | -539.0 | -479.0 | |
| 0.00 | 1.59 | 0.00 | 1.01 | -13.90 | 216.87 | 33.24 | 237.90 | 0.6304 | -547.0 | -380.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
