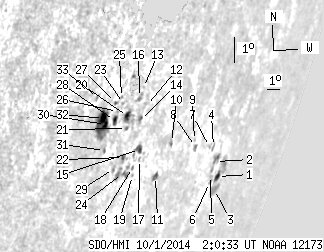

SDO HMI 2014-10-01 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.84 | 131.29 | 28.97 | 188.46 | -16.43 | 250.14 | 66.52 | 249.62 | 0.9364 | -141.3 | -96.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.29 | 12.69 | 4.69 | 26.29 | -18.04 | 256.50 | 72.87 | 249.47 | 0.9714 | -58.7 | -179.2 | |
| 0.00 | 7.75 | 0.00 | 14.95 | -17.46 | 255.69 | 72.07 | 249.88 | 0.9677 | 547.0 | 386.9 | |
| 0.00 | 6.79 | 0.00 | 14.12 | -18.48 | 256.65 | 73.02 | 249.06 | 0.9724 | -254.0 | -168.1 | |
| 0.00 | 2.29 | 0.00 | 4.21 | -16.90 | 254.95 | 71.33 | 250.30 | 0.9640 | 346.0 | 248.7 | |
| 0.00 | 0.70 | 0.00 | 1.37 | -17.90 | 255.61 | 71.99 | 249.42 | 0.9678 | 513.0 | 505.0 | |
| 0.00 | 1.15 | 0.00 | 2.25 | -18.15 | 255.76 | 72.13 | 249.20 | 0.9686 | 415.0 | 375.1 | |
| 0.00 | 1.15 | 0.00 | 2.05 | -16.85 | 254.52 | 70.89 | 250.26 | 0.9620 | 385.0 | 400.7 | |
| 0.44 | 2.73 | 0.73 | 4.51 | -16.68 | 253.06 | 69.44 | 250.11 | 0.9551 | 484.8 | 442.3 | |
| 0.00 | 0.70 | 0.00 | 1.15 | -16.46 | 252.80 | 69.17 | 250.28 | 0.9536 | 452.0 | 500.4 | |
| 0.00 | 2.11 | 0.00 | 3.10 | -16.29 | 250.71 | 67.09 | 249.97 | 0.9425 | -161.0 | -53.1 | |
| 1.94 | 3.97 | 2.80 | 5.73 | -17.31 | 250.15 | 66.53 | 248.77 | 0.9409 | -88.5 | 67.9 | |
| 0.00 | 0.44 | 0.00 | 0.56 | -14.79 | 247.87 | 64.25 | 250.83 | 0.9236 | 466.0 | 405.8 | |
| 0.00 | 0.26 | 0.00 | 0.33 | -14.16 | 247.32 | 63.70 | 251.35 | 0.9191 | 500.0 | 457.0 | |
| 0.00 | 3.17 | 0.00 | 4.04 | -15.21 | 247.67 | 64.05 | 250.33 | 0.9231 | 649.0 | 548.4 | |
| 2.82 | 6.70 | 3.70 | 8.77 | -16.23 | 248.20 | 64.58 | 249.40 | 0.9280 | -388.2 | -384.5 | |
| 0.00 | 4.49 | 0.00 | 5.59 | -14.46 | 247.20 | 63.57 | 251.00 | 0.9188 | 368.0 | 343.1 | |
| 0.00 | 1.41 | 0.00 | 1.88 | -16.57 | 248.42 | 64.79 | 249.10 | 0.9299 | -199.0 | -138.9 | |
| 0.00 | 1.41 | 0.00 | 1.86 | -16.79 | 248.04 | 64.41 | 248.77 | 0.9279 | -237.0 | -173.9 | |
| 0.00 | 0.88 | 0.00 | 1.17 | -17.07 | 248.22 | 64.59 | 248.53 | 0.9295 | -164.0 | -133.3 | |
| 3.70 | 7.93 | 4.53 | 9.72 | -15.01 | 246.64 | 63.02 | 250.28 | 0.9161 | -213.2 | 67.0 | |
| 0.00 | 1.67 | 0.00 | 2.07 | -15.40 | 246.79 | 63.16 | 249.90 | 0.9178 | -271.0 | -198.4 | |
| 0.97 | 3.35 | 1.22 | 4.23 | -16.37 | 247.13 | 63.50 | 248.97 | 0.9216 | -529.5 | -400.3 | |
| 0.00 | 1.06 | 0.00 | 1.26 | -14.54 | 246.13 | 62.50 | 250.64 | 0.9118 | 97.0 | 123.7 | |
| 0.00 | 12.34 | 0.00 | 15.82 | -16.91 | 247.39 | 63.76 | 248.47 | 0.9242 | -507.0 | -435.4 | |
| 0.00 | 1.06 | 0.00 | 1.25 | -14.32 | 245.89 | 62.26 | 250.81 | 0.9098 | -293.0 | -236.8 | |
| 0.00 | 0.79 | 0.00 | 0.94 | -14.76 | 245.83 | 62.21 | 250.32 | 0.9103 | -249.0 | -118.9 | |
| 0.35 | 1.50 | 0.41 | 1.76 | -14.44 | 245.54 | 61.92 | 250.58 | 0.9077 | -372.0 | -313.8 | |
| 2.64 | 4.14 | 3.14 | 4.92 | -15.04 | 245.77 | 62.15 | 250.01 | 0.9104 | -239.9 | -162.2 | |
| 0.00 | 2.56 | 0.00 | 3.18 | -16.66 | 246.60 | 62.98 | 248.52 | 0.9188 | 390.0 | 273.8 | |
| 2.20 | 30.05 | 2.57 | 34.73 | -15.11 | 245.21 | 61.58 | 249.78 | 0.9067 | -428.0 | -465.1 | |
| 0.00 | 1.67 | 0.00 | 1.99 | -15.98 | 245.60 | 61.97 | 248.96 | 0.9110 | -439.0 | -356.9 | |
| 4.49 | -30.00 | 5.18 | -30.00 | -14.89 | 244.97 | 61.35 | 249.95 | 0.9046 | -745.0 | 999999 | |
| 0.00 | 2.38 | 0.00 | 2.66 | -14.14 | 244.23 | 60.61 | 250.54 | 0.8979 | -387.0 | -322.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
