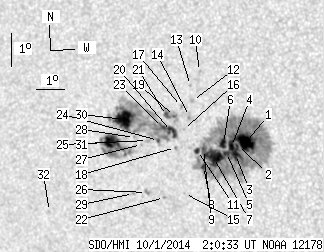

SDO HMI 2014-10-01 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.90 | 554.70 | 66.13 | 326.13 | -1.46 | 151.89 | -31.74 | 103.41 | 0.5425 | 306.6 | 190.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.24 | 339.70 | 10.52 | 196.95 | -1.37 | 153.81 | -29.82 | 104.16 | 0.5147 | 1384.0 | 472.5 | |
| 0.26 | -1.00 | 0.15 | -1.00 | -1.47 | 153.53 | -30.10 | 104.22 | 0.5192 | 1219.3 | 999999 | |
| 4.32 | -1.00 | 2.50 | -1.00 | -1.75 | 153.45 | -30.17 | 104.69 | 0.5214 | 1027.1 | 999999 | |
| 5.20 | -1.00 | 3.02 | -1.00 | -1.52 | 153.32 | -30.31 | 104.19 | 0.5224 | 1145.4 | 999999 | |
| 3.52 | -1.00 | 2.05 | -1.00 | -1.71 | 153.14 | -30.48 | 104.45 | 0.5257 | 1033.9 | 999999 | |
| 5.46 | -1.00 | 3.18 | -1.00 | -1.44 | 153.04 | -30.58 | 103.91 | 0.5261 | 894.9 | 999999 | |
| 18.59 | -1.00 | 10.87 | -1.00 | -1.89 | 152.68 | -30.94 | 104.54 | 0.5330 | 913.0 | 999999 | |
| 2.47 | -1.00 | 1.45 | -1.00 | -2.18 | 152.32 | -31.30 | 104.88 | 0.5393 | 489.9 | 999999 | |
| 1.15 | -1.00 | 0.67 | -1.00 | -1.67 | 152.34 | -31.29 | 103.96 | 0.5370 | 696.3 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.87 | 0.69 | 152.21 | -31.41 | 99.60 | 0.5307 | 761.0 | 639.1 | |
| 2.29 | -1.00 | 1.35 | -1.00 | -1.71 | 152.12 | -31.50 | 103.93 | 0.5402 | 547.5 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.24 | -0.20 | 151.97 | -31.66 | 101.14 | 0.5371 | 805.0 | 655.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 0.24 | 151.90 | -31.73 | 100.29 | 0.5366 | 652.0 | 579.2 | |
| 0.00 | 2.03 | 0.00 | 1.19 | -0.70 | 151.86 | -31.77 | 101.99 | 0.5403 | 734.0 | 722.9 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -3.05 | 151.63 | -32.00 | 106.04 | 0.5527 | 282.0 | 265.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -1.10 | 151.64 | -31.99 | 102.62 | 0.5449 | 795.0 | 628.0 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -0.41 | 151.58 | -32.05 | 101.35 | 0.5434 | 678.0 | 541.9 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -1.67 | 151.35 | -32.28 | 103.48 | 0.5511 | 498.0 | 395.1 | |
| 0.62 | 12.42 | 0.36 | 7.36 | -0.73 | 151.32 | -32.30 | 101.81 | 0.5480 | 899.1 | 527.1 | |
| 6.61 | 137.47 | 3.92 | 82.48 | -1.19 | 151.21 | -32.41 | 102.58 | 0.5512 | 810.1 | -407.3 | |
| 2.20 | -19.00 | 1.31 | -19.00 | -0.72 | 151.04 | -32.59 | 101.67 | 0.5520 | 667.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -3.21 | 150.91 | -32.72 | 105.95 | 0.5634 | -751.0 | -669.5 | |
| 2.82 | -20.00 | 1.68 | -20.00 | -1.09 | 150.89 | -32.73 | 102.26 | 0.5554 | 178.2 | 999999 | |
| 0.79 | -20.00 | 0.47 | -20.00 | -1.49 | 150.74 | -32.88 | 102.90 | 0.5590 | 335.4 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.21 | -1.52 | 150.35 | -33.28 | 102.77 | 0.5646 | -185.0 | -223.3 | |
| 0.00 | 2.47 | 0.00 | 1.49 | -3.10 | 150.26 | -33.36 | 105.43 | 0.5718 | 909.0 | 750.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -1.65 | 150.13 | -33.50 | 102.91 | 0.5681 | -797.0 | -611.4 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -1.46 | 149.88 | -33.75 | 102.46 | 0.5709 | -855.0 | -668.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -3.16 | 149.79 | -33.83 | 105.30 | 0.5785 | 774.0 | 658.0 | |
| 21.94 | -20.00 | 13.25 | -20.00 | -0.93 | 149.52 | -34.10 | 101.43 | 0.5741 | -1104.0 | 999999 | |
| 15.42 | 45.73 | 9.38 | 27.81 | -1.63 | 149.04 | -34.59 | 102.41 | 0.5832 | -982.1 | -423.8 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -3.93 | 146.65 | -36.98 | 105.06 | 0.6237 | 477.0 | 384.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
