SDO HMI 2014-10-01 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.57 | 589.15 | 121.76 | 658.10 | -11.11 | 244.36 | 61.29 | 253.88 | 0.8935 | 83.5 | 98.0 | |
|
previous
or next observation for the same group /

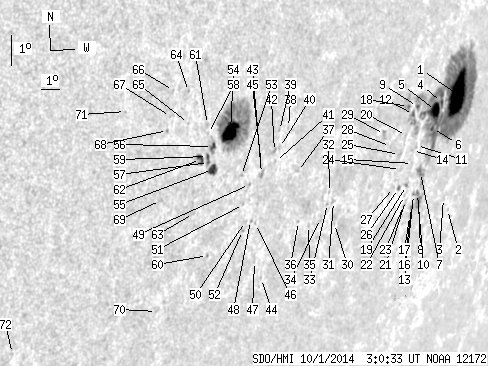

back to the solar disc SDO HMI 2014-10-01 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.47 | 322.46 | 58.01 | 404.59 | -10.74 | 248.22 | 65.15 | 255.32 | 0.9232 | 525.0 | 190.0 | |
| 0.00 | 0.71 | 0.00 | 0.98 | -14.48 | 249.33 | 66.25 | 251.65 | 0.9353 | 375.0 | 367.9 | |
| 0.00 | 0.35 | 0.00 | 0.48 | -14.07 | 248.79 | 65.71 | 251.95 | 0.9315 | 343.0 | 388.5 | |
| 2.82 | -1.00 | 3.45 | -1.00 | -10.87 | 247.12 | 64.05 | 254.93 | 0.9162 | 65.5 | 999999 | |
| 11.10 | -1.00 | 13.44 | -1.00 | -11.08 | 246.79 | 63.71 | 254.63 | 0.9142 | 657.0 | 999999 | |
| 1.32 | -1.00 | 1.61 | -1.00 | -11.65 | 246.81 | 63.73 | 254.03 | 0.9152 | 530.2 | 999999 | |
| 2.91 | 11.81 | 3.55 | 14.52 | -13.00 | 246.57 | 63.49 | 252.53 | 0.9158 | 410.3 | 225.6 | |
| 3.53 | 14.72 | 4.40 | 18.26 | -13.95 | 246.89 | 63.82 | 251.60 | 0.9195 | 357.3 | 227.4 | |
| 1.23 | -1.00 | 1.42 | -1.00 | -10.82 | 245.46 | 62.38 | 254.60 | 0.9045 | 640.2 | 999999 | |
| 0.97 | -8.00 | 1.20 | -8.00 | -13.68 | 246.68 | 63.61 | 251.84 | 0.9177 | 51.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.25 | -12.08 | 245.89 | 62.81 | 253.34 | 0.9097 | 605.0 | 511.2 | |
| 1.59 | 14.54 | 1.82 | 16.79 | -11.05 | 245.27 | 62.20 | 254.31 | 0.9036 | 709.3 | 562.1 | |
| 0.26 | -8.00 | 0.32 | -8.00 | -13.68 | 246.40 | 63.33 | 251.77 | 0.9158 | -180.3 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.76 | -12.22 | 245.67 | 62.60 | 253.15 | 0.9084 | 404.0 | 366.2 | |
| 0.00 | 0.97 | 0.00 | 1.15 | -12.64 | 245.85 | 62.78 | 252.73 | 0.9104 | 313.0 | 321.0 | |
| 0.88 | -8.00 | 1.08 | -8.00 | -14.10 | 246.47 | 63.40 | 251.34 | 0.9170 | 42.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.63 | -14.38 | 246.48 | 63.40 | 251.04 | 0.9175 | 328.0 | 345.3 | |
| 0.79 | 10.31 | 0.89 | 11.57 | -10.75 | 244.84 | 61.76 | 254.52 | 0.8999 | 717.6 | 491.3 | |
| 0.44 | 1.67 | 0.52 | 1.99 | -13.33 | 245.75 | 62.68 | 251.98 | 0.9109 | -93.8 | -20.3 | |
| 0.00 | 1.06 | 0.00 | 1.21 | -11.68 | 245.05 | 61.98 | 253.57 | 0.9031 | 415.0 | 411.5 | |
| 0.00 | 1.23 | 0.00 | 1.49 | -13.82 | 245.92 | 62.84 | 251.50 | 0.9128 | -212.0 | -113.6 | |
| 0.00 | 0.71 | 0.00 | 0.84 | -13.64 | 245.77 | 62.69 | 251.64 | 0.9115 | -239.0 | -172.6 | |
| 0.00 | 0.97 | 0.00 | 1.17 | -13.97 | 245.85 | 62.78 | 251.32 | 0.9127 | -109.0 | -87.5 | |
| 0.00 | 1.59 | 0.00 | 1.84 | -12.75 | 245.10 | 62.02 | 252.43 | 0.9053 | 372.0 | 316.3 | |
| 0.00 | 2.91 | 0.00 | 3.32 | -12.25 | 244.82 | 61.75 | 252.89 | 0.9025 | 478.0 | 492.1 | |
| 0.88 | 1.76 | 1.03 | 2.06 | -13.36 | 245.23 | 62.16 | 251.80 | 0.9074 | -145.9 | -97.8 | |
| 0.00 | 0.88 | 0.00 | 1.02 | -13.29 | 244.87 | 61.79 | 251.78 | 0.9047 | -428.0 | -358.5 | |
| 0.00 | 1.32 | 0.00 | 1.47 | -11.92 | 244.11 | 61.03 | 253.06 | 0.8967 | 285.0 | 215.6 | |
| 0.00 | 3.44 | 0.00 | 3.73 | -11.49 | 243.57 | 60.49 | 253.39 | 0.8919 | -93.0 | -162.9 | |
| 0.00 | 0.79 | 0.00 | 0.83 | -14.08 | 241.51 | 58.44 | 249.98 | 0.8815 | 140.0 | 149.8 | |
| 0.00 | 1.76 | 0.00 | 1.80 | -13.34 | 241.16 | 58.09 | 250.68 | 0.8772 | 420.0 | 353.2 | |
| 0.00 | 0.79 | 0.00 | 0.80 | -13.02 | 240.81 | 57.73 | 250.93 | 0.8736 | 301.0 | 280.4 | |
| 0.00 | 0.88 | 0.00 | 0.89 | -13.37 | 240.82 | 57.74 | 250.55 | 0.8745 | 476.0 | 389.8 | |
| 0.00 | 2.47 | 0.00 | 2.50 | -13.82 | 240.59 | 57.51 | 249.98 | 0.8737 | 128.0 | 166.5 | |
| 0.00 | 0.97 | 0.00 | 0.96 | -13.98 | 239.96 | 56.88 | 249.61 | 0.8690 | 184.0 | 201.1 | |
| 0.00 | 0.88 | 0.00 | 0.86 | -13.79 | 239.32 | 56.24 | 249.62 | 0.8634 | 415.0 | 325.0 | |
| 0.00 | 1.06 | 0.00 | 1.00 | -12.15 | 238.70 | 55.63 | 251.26 | 0.8541 | -330.0 | -239.2 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -10.68 | 237.79 | 54.71 | 252.65 | 0.8425 | -263.0 | -256.5 | |
| 0.00 | 1.06 | 0.00 | 0.96 | -10.73 | 237.32 | 54.25 | 252.45 | 0.8384 | -547.0 | -444.4 | |
| 0.00 | 1.76 | 0.00 | 1.60 | -11.27 | 237.47 | 54.40 | 251.87 | 0.8411 | -448.0 | -346.0 | |
| 0.00 | 1.06 | 0.00 | 0.96 | -11.70 | 237.38 | 54.31 | 251.35 | 0.8415 | -378.0 | -319.3 | |
| 0.00 | 2.47 | 0.00 | 2.23 | -11.37 | 237.24 | 54.16 | 251.68 | 0.8393 | -690.0 | -471.0 | |
| 0.00 | 3.53 | 0.00 | 3.17 | -12.02 | 236.74 | 53.66 | 250.78 | 0.8365 | -482.0 | -294.8 | |
| 0.00 | 0.44 | 0.00 | 0.42 | -15.46 | 237.91 | 54.84 | 247.29 | 0.8562 | -436.0 | -407.2 | |
| 0.00 | 1.06 | 0.00 | 0.95 | -11.79 | 236.67 | 53.60 | 251.02 | 0.8353 | -444.0 | -384.7 | |
| 0.00 | 0.97 | 0.00 | 0.89 | -13.61 | 236.92 | 53.84 | 249.02 | 0.8426 | -271.0 | -232.5 | |
| 0.00 | 0.97 | 0.00 | 0.90 | -14.86 | 237.30 | 54.23 | 247.75 | 0.8494 | -443.0 | -351.3 | |
| 0.00 | 1.23 | 0.00 | 1.12 | -13.49 | 236.62 | 53.54 | 249.06 | 0.8396 | -276.0 | -377.2 | |
| 0.00 | 1.06 | 0.00 | 0.94 | -12.31 | 236.20 | 53.13 | 250.26 | 0.8325 | -461.0 | -405.6 | |
| 0.00 | 1.67 | 0.00 | 1.51 | -13.49 | 236.36 | 53.28 | 248.96 | 0.8373 | -459.0 | -376.9 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -12.93 | 236.08 | 53.00 | 249.51 | 0.8331 | -486.0 | -359.8 | |
| 0.00 | 1.06 | 0.00 | 0.95 | -13.77 | 236.29 | 53.22 | 248.62 | 0.8375 | -517.0 | -498.3 | |
| 0.00 | 1.32 | 0.00 | 1.16 | -11.98 | 235.70 | 52.62 | 250.47 | 0.8269 | -425.0 | -365.5 | |
| 21.86 | 121.97 | 18.54 | 103.79 | -10.51 | 234.77 | 51.69 | 251.87 | 0.8140 | -819.9 | -203.0 | |
| 5.73 | 8.02 | 4.83 | 6.77 | -11.64 | 234.16 | 51.08 | 250.32 | 0.8115 | -604.2 | -383.6 | |
| 2.56 | 7.05 | 2.14 | 5.89 | -10.90 | 233.98 | 50.90 | 251.13 | 0.8075 | -783.2 | -597.4 | |
| 0.26 | 4.49 | 0.22 | 3.76 | -11.40 | 233.90 | 50.82 | 250.52 | 0.8083 | -581.3 | -573.5 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -10.47 | 233.68 | 50.61 | 251.55 | 0.8034 | -621.0 | -564.3 | |
| 0.71 | -57.00 | 0.59 | -57.00 | -11.20 | 233.80 | 50.73 | 250.72 | 0.8068 | -728.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.23 | -14.41 | 234.71 | 51.64 | 247.30 | 0.8254 | -385.0 | -268.9 | |
| 0.00 | 1.50 | 0.00 | 1.23 | -10.18 | 233.57 | 50.49 | 251.86 | 0.8014 | -116.0 | -189.0 | |
| 3.26 | 6.61 | 2.70 | 5.47 | -11.26 | 233.48 | 50.40 | 250.53 | 0.8038 | -776.6 | -599.9 | |
| 0.00 | 1.15 | 0.00 | 0.96 | -12.97 | 233.59 | 50.51 | 248.54 | 0.8102 | -613.0 | -462.4 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -9.04 | 232.44 | 49.36 | 252.83 | 0.7866 | -258.0 | -332.5 | |
| 0.00 | 0.62 | 0.00 | 0.50 | -10.06 | 232.64 | 49.56 | 251.67 | 0.7917 | -692.0 | -638.1 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -8.95 | 231.72 | 48.64 | 252.70 | 0.7789 | -553.0 | -429.4 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -9.76 | 231.73 | 48.66 | 251.71 | 0.7816 | -622.0 | -517.7 | |
| 0.00 | 1.23 | 0.00 | 0.98 | -10.19 | 231.68 | 48.60 | 251.16 | 0.7824 | -672.0 | -594.7 | |
| 0.00 | 1.67 | 0.00 | 1.35 | -12.40 | 231.86 | 48.78 | 248.55 | 0.7916 | -79.0 | -111.7 | |
| 0.00 | 0.62 | 0.00 | 0.52 | -16.02 | 232.73 | 49.66 | 244.66 | 0.8128 | -141.0 | -195.4 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -9.41 | 229.63 | 46.55 | 251.34 | 0.7583 | -511.0 | -508.6 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -16.81 | 226.40 | 43.32 | 240.68 | 0.7555 | -476.0 | -479.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
