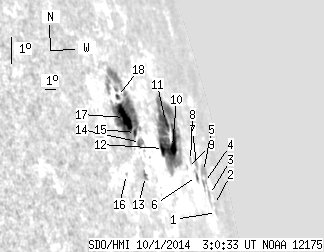

SDO HMI 2014-10-01 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.87 | 255.93 | 92.74 | 525.83 | 15.42 | 260.26 | 77.18 | 284.29 | 0.9699 | -98.4 | -50.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 5.34 | 12.46 | 266.41 | 83.33 | 281.71 | 0.9911 | 115.0 | 72.9 | |
| 0.00 | 1.15 | 0.00 | 4.12 | 12.71 | 266.36 | 83.28 | 281.96 | 0.9909 | 130.0 | 149.5 | |
| 0.00 | 2.29 | 0.00 | 7.54 | 13.09 | 265.78 | 82.70 | 282.29 | 0.9894 | -57.0 | -136.3 | |
| 0.00 | 3.17 | 0.00 | 9.94 | 13.52 | 265.34 | 82.26 | 282.68 | 0.9882 | -62.0 | -57.6 | |
| 0.00 | 5.29 | 0.00 | 17.25 | 13.82 | 265.67 | 82.60 | 283.01 | 0.9890 | 116.0 | 138.1 | |
| 0.00 | 3.61 | 0.00 | 10.14 | 13.84 | 264.13 | 81.06 | 282.91 | 0.9848 | -136.0 | -99.4 | |
| 0.00 | 3.26 | 0.00 | 9.53 | 14.15 | 264.66 | 81.59 | 283.27 | 0.9863 | 174.0 | 150.1 | |
| 0.00 | 1.85 | 0.00 | 4.99 | 14.38 | 263.79 | 80.72 | 283.43 | 0.9837 | -272.0 | -171.5 | |
| 0.00 | 0.26 | 0.00 | 0.67 | 14.25 | 263.02 | 79.95 | 283.24 | 0.9813 | -242.0 | -263.0 | |
| 17.10 | 116.95 | 38.41 | 260.85 | 15.07 | 261.61 | 78.54 | 283.98 | 0.9763 | -387.9 | -198.4 | |
| 4.14 | -10.00 | 9.23 | -10.00 | 15.85 | 261.59 | 78.51 | 284.78 | 0.9760 | -400.6 | 999999 | |
| 5.99 | -10.00 | 12.26 | -10.00 | 15.15 | 260.35 | 77.27 | 283.99 | 0.9714 | -499.3 | 999999 | |
| 0.00 | 3.17 | 0.00 | 5.46 | 14.60 | 257.44 | 74.36 | 283.27 | 0.9587 | 483.0 | 366.0 | |
| 0.00 | 5.29 | 0.00 | 9.26 | 15.62 | 257.85 | 74.78 | 284.35 | 0.9605 | 336.0 | 255.1 | |
| 2.64 | 105.05 | 4.56 | 175.74 | 15.96 | 257.61 | 74.53 | 284.69 | 0.9592 | 105.1 | 81.3 | |
| 0.00 | 0.97 | 0.00 | 1.51 | 14.87 | 255.57 | 72.50 | 283.47 | 0.9492 | 377.0 | 343.7 | |
| 15.77 | -15.00 | 26.24 | -15.00 | 16.50 | 256.90 | 73.82 | 285.24 | 0.9557 | 470.3 | 999999 | |
| 1.23 | 2.12 | 2.04 | 3.49 | 17.17 | 256.81 | 73.73 | 285.93 | 0.9551 | 307.8 | 250.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
