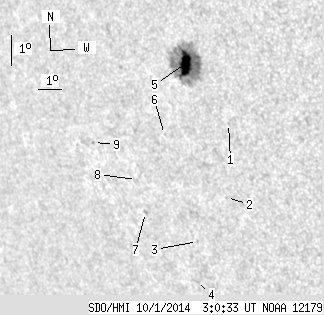

SDO HMI 2014-10-01 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.65 | 106.54 | 13.78 | 75.07 | -10.07 | 140.82 | -42.26 | 111.35 | 0.7133 | 651.2 | 330.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.73 | -11.42 | 142.42 | -40.66 | 113.95 | 0.7012 | 498.0 | 460.3 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -13.80 | 141.87 | -41.21 | 116.75 | 0.7188 | 481.0 | 451.8 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -15.34 | 140.29 | -42.79 | 117.82 | 0.7430 | 398.0 | 343.2 | |
| 0.00 | 2.20 | 0.00 | 1.65 | -16.66 | 139.88 | -43.19 | 119.21 | 0.7536 | 450.0 | 310.9 | |
| 19.65 | 97.29 | 13.78 | 68.20 | -9.65 | 140.96 | -42.12 | 110.88 | 0.7100 | 992.7 | 370.7 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -11.98 | 139.66 | -43.42 | 113.30 | 0.7343 | 487.0 | 376.9 | |
| 0.00 | 1.76 | 0.00 | 1.34 | -14.58 | 138.23 | -44.84 | 115.84 | 0.7605 | -731.0 | -578.9 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -13.54 | 138.10 | -44.97 | 114.50 | 0.7574 | -646.0 | -536.7 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -12.51 | 136.44 | -46.63 | 112.48 | 0.7704 | -434.0 | -405.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
