SDO HMI 2014-10-01 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.78 | 176.26 | 39.35 | 257.79 | -16.16 | 249.57 | 67.04 | 250.04 | 0.9391 | -173.7 | -25.4 | |
|
previous
or next observation for the same group /

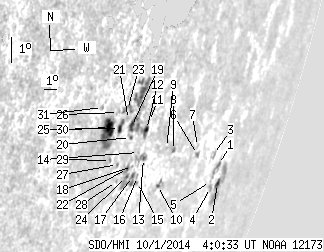

back to the solar disc SDO HMI 2014-10-01 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.15 | 6.79 | 2.40 | 14.16 | -17.33 | 255.87 | 73.34 | 250.28 | 0.9726 | 261.9 | 324.9 | |
| 3.00 | 21.59 | 6.64 | 48.46 | -18.01 | 256.51 | 73.99 | 249.72 | 0.9755 | -105.6 | -207.7 | |
| 0.00 | 3.17 | 0.00 | 6.21 | -16.89 | 254.89 | 72.36 | 250.52 | 0.9684 | 422.0 | 299.4 | |
| 0.00 | 2.82 | 0.00 | 5.92 | -18.05 | 255.76 | 73.24 | 249.53 | 0.9728 | 519.0 | 432.7 | |
| 0.00 | 0.26 | 0.00 | 0.54 | -17.83 | 255.52 | 73.00 | 249.70 | 0.9717 | 494.0 | 499.3 | |
| 0.88 | 2.38 | 1.54 | 4.18 | -16.69 | 253.10 | 70.57 | 250.36 | 0.9604 | 523.8 | 405.8 | |
| 0.00 | 0.26 | 0.00 | 0.46 | -16.40 | 252.86 | 70.33 | 250.59 | 0.9590 | 380.0 | 442.7 | |
| 0.53 | 1.32 | 0.81 | 2.03 | -16.27 | 250.62 | 68.09 | 250.22 | 0.9478 | -116.2 | 26.5 | |
| 0.00 | 0.97 | 0.00 | 1.44 | -16.10 | 249.90 | 67.38 | 250.23 | 0.9438 | 212.0 | 160.6 | |
| 0.88 | 3.61 | 1.34 | 5.52 | -17.34 | 250.06 | 67.53 | 249.00 | 0.9463 | -34.1 | 96.7 | |
| 0.00 | 0.88 | 0.00 | 1.18 | -15.05 | 247.89 | 65.36 | 250.84 | 0.9309 | 387.0 | 386.9 | |
| 1.85 | 47.68 | 2.48 | 61.31 | -15.29 | 247.81 | 65.28 | 250.57 | 0.9307 | 500.1 | 315.9 | |
| 0.71 | 7.32 | 0.97 | 9.97 | -16.26 | 248.19 | 65.66 | 249.65 | 0.9344 | -362.2 | -387.5 | |
| 0.00 | 0.62 | 0.00 | 0.83 | -16.01 | 247.65 | 65.12 | 249.78 | 0.9309 | -208.0 | -246.6 | |
| 0.00 | 1.15 | 0.00 | 1.59 | -17.04 | 248.24 | 65.71 | 248.86 | 0.9359 | -30.0 | -53.2 | |
| 0.00 | 0.97 | 0.00 | 1.34 | -16.83 | 248.10 | 65.57 | 249.04 | 0.9348 | -143.0 | -98.8 | |
| 0.79 | 17.71 | 1.07 | 23.67 | -16.78 | 247.69 | 65.16 | 248.98 | 0.9324 | -546.3 | -369.3 | |
| 0.00 | 0.44 | 0.00 | 0.59 | -16.44 | 247.47 | 64.94 | 249.28 | 0.9305 | -591.0 | -561.6 | |
| 3.26 | -12.00 | 4.15 | -12.00 | -15.06 | 246.57 | 64.05 | 250.50 | 0.9228 | -266.2 | 999999 | |
| 0.53 | 1.76 | 0.68 | 2.26 | -15.43 | 246.71 | 64.18 | 250.15 | 0.9242 | -276.8 | -258.8 | |
| 0.00 | 1.59 | 0.00 | 1.99 | -14.80 | 246.22 | 63.69 | 250.68 | 0.9201 | 418.0 | 338.4 | |
| 0.97 | -17.00 | 1.28 | -17.00 | -16.46 | 247.11 | 64.58 | 249.17 | 0.9284 | -504.1 | 999999 | |
| 0.00 | 6.70 | 0.00 | 8.28 | -14.45 | 245.96 | 63.44 | 250.98 | 0.9178 | 24.0 | -43.6 | |
| 0.53 | -17.00 | 0.70 | -17.00 | -16.73 | 247.21 | 64.68 | 248.91 | 0.9294 | -430.5 | 999999 | |
| 2.56 | 6.17 | 3.15 | 7.61 | -15.03 | 245.71 | 63.18 | 250.30 | 0.9172 | -239.1 | -189.2 | |
| 0.00 | 2.64 | 0.00 | 3.20 | -14.48 | 245.35 | 62.83 | 250.79 | 0.9139 | -497.0 | -392.7 | |
| 0.00 | 1.23 | 0.00 | 1.57 | -16.24 | 246.25 | 63.72 | 249.17 | 0.9227 | -204.0 | -166.1 | |
| 0.00 | 1.15 | 0.00 | 1.48 | -16.81 | 246.53 | 64.00 | 248.64 | 0.9254 | 310.0 | 312.6 | |
| 0.00 | 1.32 | 0.00 | 1.64 | -16.04 | 245.64 | 63.11 | 249.21 | 0.9185 | -389.0 | -306.8 | |
| 10.14 | 32.26 | 12.14 | 38.63 | -14.92 | 244.96 | 62.43 | 250.22 | 0.9120 | -694.9 | -383.8 | |
| 0.00 | 1.50 | 0.00 | 1.73 | -14.19 | 244.14 | 61.61 | 250.77 | 0.9051 | -363.0 | -306.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
