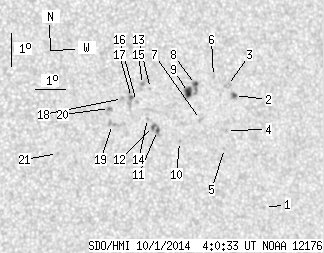

SDO HMI 2014-10-01 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.07 | 53.05 | 5.04 | 29.30 | 7.29 | 208.94 | 26.41 | 272.84 | 0.4436 | 21.3 | 14.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.55 | 4.07 | 211.94 | 29.41 | 266.35 | 0.4928 | -694.0 | -499.2 | |
| 1.06 | 2.38 | 0.60 | 1.34 | 7.49 | 211.10 | 28.57 | 273.31 | 0.4769 | -935.4 | -833.3 | |
| 0.00 | 3.88 | 0.00 | 2.18 | 7.80 | 210.88 | 28.35 | 273.98 | 0.4736 | -586.0 | -566.9 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 6.46 | 210.75 | 28.23 | 271.11 | 0.4720 | -619.0 | -477.9 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 5.92 | 210.65 | 28.13 | 269.96 | 0.4708 | -655.0 | -526.2 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 8.10 | 210.42 | 27.89 | 274.62 | 0.4666 | -532.0 | -488.5 | |
| 0.00 | 1.94 | 0.00 | 1.08 | 6.83 | 209.89 | 27.36 | 271.87 | 0.4585 | -962.0 | -702.4 | |
| 1.23 | 13.84 | 0.69 | 7.69 | 7.89 | 209.79 | 27.26 | 274.19 | 0.4568 | -897.2 | -770.8 | |
| 4.58 | -8.00 | 2.54 | -8.00 | 7.67 | 209.53 | 27.01 | 273.69 | 0.4529 | -1082.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 6.21 | 209.14 | 26.61 | 270.44 | 0.4472 | -712.0 | -634.8 | |
| 0.79 | 7.05 | 0.44 | 3.87 | 6.58 | 208.42 | 25.89 | 271.21 | 0.4357 | 709.0 | 570.3 | |
| 0.88 | -11.00 | 0.48 | -11.00 | 6.71 | 208.29 | 25.76 | 271.49 | 0.4336 | 938.5 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 7.85 | 208.26 | 25.73 | 274.15 | 0.4331 | 532.0 | 432.9 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 6.96 | 208.10 | 25.58 | 272.07 | 0.4306 | 575.0 | 472.3 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 7.99 | 208.00 | 25.47 | 274.47 | 0.4290 | 886.0 | 695.3 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 7.49 | 207.77 | 25.24 | 273.30 | 0.4252 | 552.0 | 374.4 | |
| 0.53 | 5.99 | 0.29 | 3.27 | 7.62 | 207.61 | 25.08 | 273.61 | 0.4228 | 862.7 | 651.4 | |
| 0.00 | 1.85 | 0.00 | 1.01 | 7.60 | 207.31 | 24.78 | 273.58 | 0.4180 | 730.0 | 631.0 | |
| 0.00 | 3.61 | 0.00 | 1.96 | 6.84 | 206.93 | 24.40 | 271.72 | 0.4121 | 594.0 | 645.7 | |
| 0.00 | 1.94 | 0.00 | 1.05 | 7.32 | 206.86 | 24.33 | 272.90 | 0.4109 | 986.0 | 835.5 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 6.05 | 205.07 | 22.55 | 269.58 | 0.3830 | 804.0 | 703.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
