SDO HMI 2014-10-01 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.86 | 341.89 | 43.52 | 175.32 | 12.02 | 168.68 | -13.85 | 67.23 | 0.2546 | -162.2 | -75.9 | |
|
previous
or next observation for the same group /

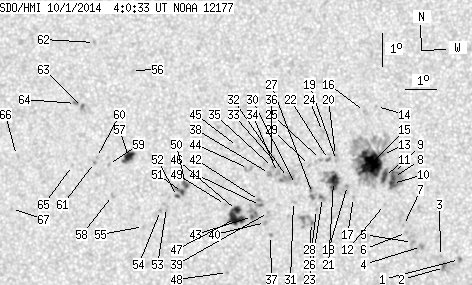

back to the solar disc SDO HMI 2014-10-01 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.06 | 9.76 | 173.35 | -9.18 | 70.91 | 0.1671 | -1244.0 | -1002.3 | |
| 0.00 | 4.85 | 0.00 | 2.44 | 9.51 | 172.89 | -9.63 | 73.07 | 0.1733 | -896.0 | -804.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 9.84 | 172.76 | -9.77 | 71.48 | 0.1771 | -919.0 | -719.3 | |
| 0.00 | 2.20 | 0.00 | 1.11 | 10.13 | 172.16 | -10.36 | 70.92 | 0.1882 | -1190.0 | -931.3 | |
| 0.00 | 2.38 | 0.00 | 1.20 | 10.24 | 171.88 | -10.65 | 70.79 | 0.1934 | -903.0 | -725.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 10.54 | 171.68 | -10.84 | 69.65 | 0.1982 | -801.0 | -666.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 10.75 | 171.58 | -10.94 | 68.82 | 0.2009 | -878.0 | -644.2 | |
| 2.20 | 152.65 | 1.12 | 77.65 | 12.19 | 171.22 | -11.31 | 63.07 | 0.2160 | -1329.5 | -408.6 | |
| 0.88 | -8.00 | 0.45 | -8.00 | 12.31 | 171.21 | -11.32 | 62.57 | 0.2170 | -1078.4 | 999999 | |
| 3.44 | -8.00 | 1.74 | -8.00 | 12.01 | 171.19 | -11.34 | 63.88 | 0.2151 | -1151.4 | 999999 | |
| 4.05 | -8.00 | 2.06 | -8.00 | 12.21 | 170.93 | -11.59 | 63.50 | 0.2205 | -1194.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 11.37 | 170.97 | -11.56 | 67.03 | 0.2143 | -763.0 | -589.5 | |
| 0.26 | -8.00 | 0.13 | -8.00 | 12.87 | 170.84 | -11.69 | 61.00 | 0.2268 | -737.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.32 | 170.58 | -11.95 | 56.13 | 0.2427 | 881.0 | 634.8 | |
| 35.25 | -8.00 | 17.94 | -8.00 | 12.56 | 170.48 | -12.05 | 62.91 | 0.2299 | -1258.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 14.16 | 170.21 | -12.32 | 57.46 | 0.2465 | -724.0 | -651.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 11.56 | 169.99 | -12.54 | 67.76 | 0.2308 | -978.0 | -782.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 11.91 | 169.78 | -12.74 | 66.63 | 0.2362 | -1079.0 | -833.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 12.66 | 169.40 | -13.13 | 64.36 | 0.2469 | -841.0 | -745.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 12.81 | 169.36 | -13.17 | 63.87 | 0.2485 | -834.0 | -706.7 | |
| 10.14 | 23.27 | 5.18 | 11.89 | 12.02 | 169.34 | -13.19 | 66.86 | 0.2438 | -1127.2 | -477.3 | |
| 0.00 | 2.20 | 0.00 | 1.13 | 12.68 | 169.15 | -13.38 | 64.67 | 0.2509 | -869.0 | -690.0 | |
| 0.00 | 3.53 | 0.00 | 1.80 | 11.53 | 169.02 | -13.51 | 69.20 | 0.2460 | -972.0 | -822.8 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 13.52 | 168.91 | -13.62 | 62.03 | 0.2603 | 876.0 | 642.5 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 12.68 | 168.89 | -13.63 | 65.07 | 0.2547 | -601.0 | -497.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.17 | 168.84 | -13.68 | 70.83 | 0.2468 | -838.0 | -596.6 | |
| 0.00 | 5.73 | 0.00 | 2.93 | 11.65 | 168.69 | -13.83 | 69.17 | 0.2517 | -508.0 | -632.7 | |
| 0.35 | 11.46 | 0.18 | 5.86 | 10.77 | 168.70 | -13.82 | 72.53 | 0.2472 | 1074.5 | 855.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 12.49 | 168.56 | -13.97 | 66.24 | 0.2587 | 94.0 | 80.0 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 11.90 | 168.14 | -14.38 | 68.90 | 0.2617 | -30.0 | -13.9 | |
| 0.00 | 1.85 | 0.00 | 0.95 | 11.39 | 168.11 | -14.42 | 70.82 | 0.2596 | 720.0 | 539.0 | |
| 0.00 | 11.19 | 0.00 | 5.75 | 12.11 | 167.88 | -14.65 | 68.48 | 0.2670 | 853.0 | 582.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 12.46 | 167.57 | -14.95 | 67.62 | 0.2737 | 763.0 | 639.1 | |
| 0.00 | 2.91 | 0.00 | 1.50 | 12.25 | 167.55 | -14.97 | 68.37 | 0.2728 | 773.0 | 746.1 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 12.39 | 167.39 | -15.14 | 68.07 | 0.2763 | 741.0 | 697.2 | |
| 0.00 | 2.38 | 0.00 | 1.23 | 12.69 | 167.34 | -15.19 | 67.10 | 0.2787 | 648.0 | 610.4 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 10.35 | 167.43 | -15.10 | 75.32 | 0.2660 | 911.0 | 787.9 | |
| 0.00 | 2.82 | 0.00 | 1.45 | 12.21 | 167.30 | -15.23 | 68.80 | 0.2766 | 1074.0 | 907.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.04 | 167.33 | -15.19 | 72.90 | 0.2703 | 916.0 | 714.8 | |
| 0.00 | 2.12 | 0.00 | 1.09 | 10.73 | 167.25 | -15.27 | 74.06 | 0.2704 | 997.0 | 776.7 | |
| 0.44 | 12.52 | 0.23 | 6.45 | 11.24 | 167.07 | -15.46 | 72.42 | 0.2755 | 1130.6 | 951.9 | |
| 0.00 | 2.03 | 0.00 | 1.04 | 11.39 | 167.03 | -15.50 | 71.93 | 0.2768 | 905.0 | 788.3 | |
| 0.79 | -41.00 | 0.41 | -41.00 | 10.90 | 166.83 | -15.69 | 73.82 | 0.2778 | 1104.8 | 999999 | |
| 0.00 | 4.41 | 0.00 | 2.28 | 12.34 | 166.62 | -15.90 | 69.10 | 0.2878 | 828.0 | 777.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 12.99 | 166.23 | -16.30 | 67.41 | 0.2975 | 796.0 | 673.9 | |
| 4.32 | 21.06 | 2.23 | 10.89 | 11.07 | 166.32 | -16.21 | 73.68 | 0.2868 | 1061.6 | 776.4 | |
| 11.46 | -46.00 | 5.92 | -46.00 | 10.82 | 166.30 | -16.23 | 74.52 | 0.2861 | 1080.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 9.19 | 166.12 | -16.40 | 80.28 | 0.2841 | 729.0 | 559.2 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 11.23 | 165.95 | -16.57 | 73.40 | 0.2932 | 816.0 | 715.6 | |
| 1.94 | 12.07 | 1.01 | 6.31 | 11.79 | 164.64 | -17.89 | 72.66 | 0.3164 | -1031.7 | -802.3 | |
| 1.32 | -50.00 | 0.69 | -50.00 | 11.55 | 164.56 | -17.97 | 73.47 | 0.3167 | -1178.1 | 999999 | |
| 0.79 | -50.00 | 0.41 | -50.00 | 11.42 | 164.40 | -18.12 | 73.97 | 0.3187 | -886.0 | 999999 | |
| 0.00 | 3.61 | 0.00 | 1.89 | 11.08 | 164.07 | -18.46 | 75.24 | 0.3227 | -663.0 | -670.5 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 10.98 | 163.88 | -18.64 | 75.65 | 0.3254 | -788.0 | -590.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 10.48 | 163.37 | -19.16 | 77.44 | 0.3321 | 881.0 | 735.6 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 15.17 | 162.60 | -19.93 | 64.96 | 0.3647 | 592.0 | 696.2 | |
| 7.23 | 9.78 | 3.82 | 5.17 | 12.57 | 162.73 | -19.80 | 71.81 | 0.3495 | 1116.5 | 786.1 | |
| 0.00 | 1.85 | 0.00 | 0.98 | 11.38 | 162.30 | -20.23 | 75.42 | 0.3518 | 695.0 | 714.9 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 12.31 | 162.10 | -20.43 | 72.98 | 0.3582 | 904.0 | 688.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 12.50 | 161.69 | -20.84 | 72.71 | 0.3654 | 795.0 | 662.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 12.35 | 161.63 | -20.89 | 73.16 | 0.3656 | 891.0 | 683.2 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 15.97 | 161.28 | -21.24 | 64.21 | 0.3886 | 758.0 | 617.3 | |
| 0.00 | 3.00 | 0.00 | 1.60 | 13.99 | 161.09 | -21.44 | 69.26 | 0.3809 | 1008.0 | 847.6 | |
| 0.00 | 1.94 | 0.00 | 1.04 | 14.10 | 160.84 | -21.68 | 69.16 | 0.3851 | 852.0 | 761.4 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 12.23 | 160.92 | -21.61 | 73.90 | 0.3763 | 632.0 | 473.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 12.45 | 159.03 | -23.50 | 74.33 | 0.4060 | 517.0 | 518.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 10.85 | 159.01 | -23.52 | 78.26 | 0.4020 | 792.0 | 640.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
