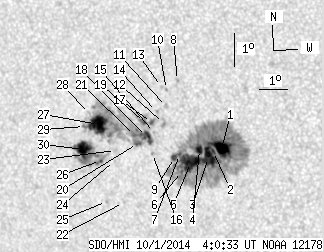

SDO HMI 2014-10-01 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.25 | 571.65 | 69.66 | 332.20 | -1.44 | 151.87 | -30.66 | 103.91 | 0.5270 | 296.7 | 194.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.84 | 344.52 | 7.89 | 197.52 | -1.37 | 153.85 | -28.68 | 104.77 | 0.4982 | 1453.6 | 466.3 | |
| 2.73 | -1.00 | 1.56 | -1.00 | -1.48 | 153.57 | -28.96 | 104.82 | 0.5027 | 1102.2 | 999999 | |
| 15.69 | -1.00 | 9.00 | -1.00 | -1.67 | 153.39 | -29.13 | 105.09 | 0.5060 | 1104.0 | 999999 | |
| 4.76 | -1.00 | 2.74 | -1.00 | -1.44 | 153.09 | -29.44 | 104.49 | 0.5095 | 932.4 | 999999 | |
| 21.33 | -1.00 | 12.31 | -1.00 | -1.86 | 152.77 | -29.76 | 105.10 | 0.5159 | 934.7 | 999999 | |
| 0.88 | -1.00 | 0.51 | -1.00 | -2.15 | 152.45 | -30.08 | 105.46 | 0.5217 | 650.9 | 999999 | |
| 0.88 | -1.00 | 0.51 | -1.00 | -1.64 | 152.39 | -30.14 | 104.48 | 0.5204 | 664.3 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.91 | 0.60 | 152.34 | -30.19 | 100.24 | 0.5130 | 793.0 | 683.2 | |
| 3.08 | -1.00 | 1.79 | -1.00 | -1.74 | 152.21 | -30.31 | 104.58 | 0.5233 | 602.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 0.31 | 151.95 | -30.57 | 100.64 | 0.5196 | 669.0 | 641.4 | |
| 0.00 | 2.38 | 0.00 | 1.38 | -0.21 | 151.95 | -30.57 | 101.61 | 0.5213 | 902.0 | 656.9 | |
| 0.00 | 3.35 | 0.00 | 1.95 | -0.73 | 151.85 | -30.68 | 102.53 | 0.5247 | 929.0 | 744.8 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 0.39 | 151.78 | -30.75 | 100.42 | 0.5219 | 539.0 | 444.5 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -0.38 | 151.60 | -30.92 | 101.77 | 0.5270 | 575.0 | 520.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -1.02 | 151.53 | -31.00 | 102.91 | 0.5304 | 792.0 | 743.8 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -1.66 | 151.45 | -31.08 | 104.04 | 0.5340 | 628.0 | 548.7 | |
| 1.32 | 4.41 | 0.77 | 2.57 | -0.72 | 151.43 | -31.10 | 102.32 | 0.5308 | 838.5 | 673.5 | |
| 8.64 | 155.29 | 5.06 | 91.90 | -1.16 | 151.24 | -31.28 | 103.03 | 0.5350 | 765.9 | -310.8 | |
| 0.88 | -18.00 | 0.52 | -18.00 | -0.74 | 151.18 | -31.35 | 102.24 | 0.5344 | 728.0 | 999999 | |
| 2.38 | -18.00 | 1.40 | -18.00 | -1.39 | 150.92 | -31.60 | 103.30 | 0.5404 | 307.5 | 999999 | |
| 1.50 | -18.00 | 0.88 | -18.00 | -1.15 | 150.82 | -31.71 | 102.83 | 0.5410 | -395.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -3.22 | 150.38 | -32.15 | 106.24 | 0.5555 | 815.0 | 652.6 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -1.65 | 150.14 | -32.39 | 103.39 | 0.5526 | -517.0 | -390.1 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -1.96 | 150.10 | -32.43 | 103.91 | 0.5543 | 380.0 | 265.8 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -3.23 | 149.77 | -32.76 | 105.93 | 0.5640 | 712.0 | 569.1 | |
| 1.06 | 50.24 | 0.63 | 30.16 | -1.99 | 149.59 | -32.93 | 103.73 | 0.5615 | -794.8 | -420.4 | |
| 24.06 | -18.00 | 14.34 | -18.00 | -0.90 | 149.54 | -32.98 | 101.81 | 0.5583 | -1082.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -0.59 | 149.22 | -33.30 | 101.14 | 0.5618 | -378.0 | -306.6 | |
| 0.53 | -18.00 | 0.32 | -18.00 | -0.99 | 149.04 | -33.49 | 101.76 | 0.5657 | -512.0 | 999999 | |
| 15.69 | -26.00 | 9.43 | -26.00 | -1.69 | 148.99 | -33.54 | 102.95 | 0.5688 | -980.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
