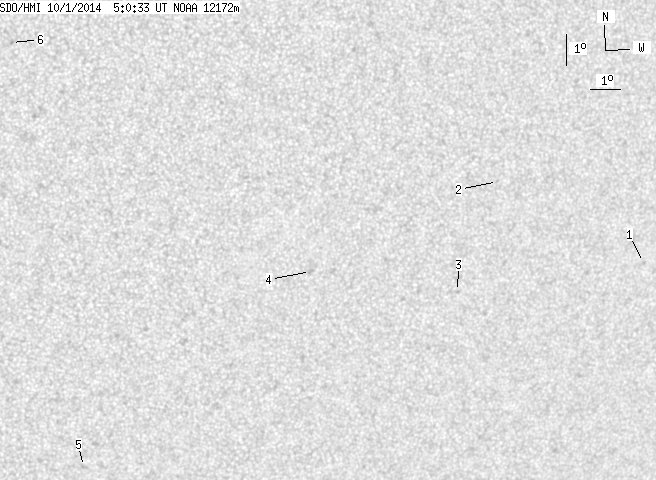

SDO HMI 2014-10-01 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.78 | 0.00 | 5.75 | -17.32 | 203.10 | 21.13 | 219.87 | 0.5353 | 27.2 | -65.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.85 | -16.98 | 214.29 | 32.31 | 233.04 | 0.6420 | 555.0 | 454.1 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -14.01 | 208.59 | 26.61 | 231.79 | 0.5551 | 680.0 | 579.2 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -17.53 | 207.68 | 25.70 | 225.98 | 0.5773 | 534.0 | 433.7 | |
| 0.00 | 2.82 | 0.00 | 1.63 | -16.62 | 202.53 | 20.55 | 220.85 | 0.5164 | -670.0 | -589.5 | |
| 0.00 | 2.20 | 0.00 | 1.29 | -22.89 | 195.62 | 13.65 | 203.87 | 0.5392 | -173.0 | -112.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.98 | 192.47 | 10.49 | 213.78 | 0.3247 | -763.0 | -614.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
