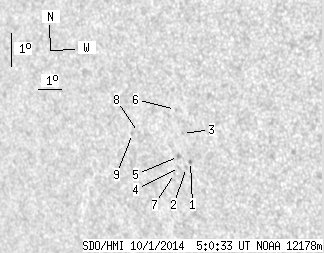

SDO HMI 2014-10-01 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.98 | 0.00 | 6.26 | -4.68 | 138.74 | -43.24 | 103.67 | 0.7050 | -593.7 | -535.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.91 | -4.88 | 139.43 | -42.55 | 104.19 | 0.6973 | -798.0 | -743.4 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -5.08 | 139.25 | -42.73 | 104.40 | 0.7001 | -720.0 | -600.3 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -4.05 | 139.17 | -42.81 | 102.94 | 0.6979 | -721.0 | -585.9 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -5.10 | 138.96 | -43.02 | 104.33 | 0.7037 | -350.0 | -350.6 | |
| 0.00 | 2.20 | 0.00 | 1.53 | -4.77 | 138.95 | -43.03 | 103.86 | 0.7027 | -647.0 | -569.0 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -3.33 | 138.92 | -43.06 | 101.86 | 0.6987 | -616.0 | -529.8 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -5.30 | 138.74 | -43.24 | 104.52 | 0.7070 | -483.0 | -442.6 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -4.17 | 137.32 | -44.66 | 102.48 | 0.7203 | -484.0 | -370.7 | |
| 0.00 | 1.23 | 0.00 | 0.88 | -4.22 | 137.06 | -44.92 | 102.47 | 0.7235 | -524.0 | -444.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
