SDO HMI 2014-10-01 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.62 | 0.00 | 8.90 | -16.23 | 197.73 | 16.30 | 216.60 | 0.4792 | -419.2 | -423.9 | |
|
previous
or next observation for the same group /

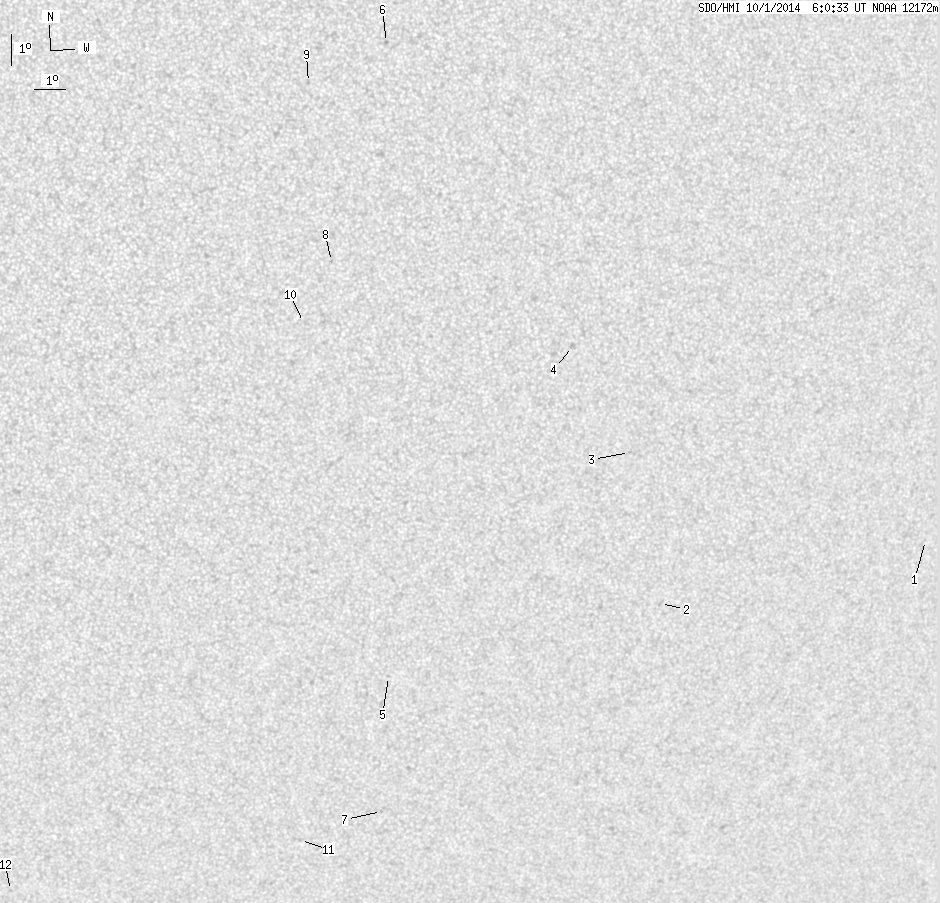

back to the solar disc SDO HMI 2014-10-01 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.46 | -18.91 | 213.42 | 31.99 | 230.33 | 0.6534 | 576.0 | 389.1 | |
| 0.00 | 2.03 | 0.00 | 1.23 | -20.47 | 204.17 | 22.74 | 218.92 | 0.5785 | -530.0 | -484.2 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -15.41 | 202.46 | 21.02 | 223.13 | 0.5079 | -663.0 | -510.5 | |
| 0.00 | 3.70 | 0.00 | 2.05 | -11.93 | 200.27 | 18.84 | 225.23 | 0.4470 | -794.0 | -639.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -22.59 | 195.18 | 13.75 | 204.28 | 0.5357 | 706.0 | 491.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -2.31 | 194.07 | 12.64 | 234.84 | 0.2687 | -903.0 | -729.9 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -27.37 | 195.49 | 14.06 | 201.16 | 0.5998 | -638.0 | -523.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.00 | 192.51 | 11.07 | 215.22 | 0.3304 | -743.0 | -495.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -3.47 | 191.69 | 10.26 | 225.46 | 0.2505 | -815.0 | -655.6 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -10.89 | 191.70 | 10.27 | 210.20 | 0.3494 | -8.0 | -3.0 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -28.35 | 192.78 | 11.35 | 196.84 | 0.6003 | -654.0 | -509.9 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -30.05 | 182.83 | 1.40 | 182.02 | 0.6011 | -564.0 | -461.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
