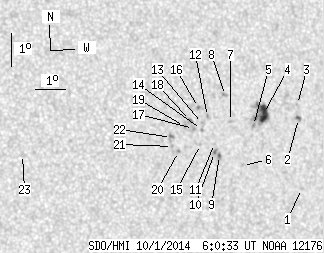

SDO HMI 2014-10-01 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 62.21 | 6.74 | 34.66 | 7.41 | 208.76 | 27.33 | 273.14 | 0.4577 | 69.0 | -24.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.80 | 5.40 | 211.19 | 29.75 | 269.11 | 0.4961 | -604.0 | -461.0 | |
| 0.97 | 2.29 | 0.55 | 1.31 | 7.50 | 211.22 | 29.79 | 273.37 | 0.4954 | -918.0 | -755.5 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 7.92 | 211.22 | 29.79 | 274.22 | 0.4954 | -640.0 | -498.4 | |
| 9.87 | 25.38 | 5.56 | 14.28 | 7.72 | 210.02 | 28.59 | 273.82 | 0.4772 | -1081.0 | -753.5 | |
| 0.00 | 1.85 | 0.00 | 1.04 | 7.38 | 209.65 | 28.22 | 273.09 | 0.4715 | -988.0 | -763.6 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 6.20 | 209.20 | 27.77 | 270.54 | 0.4651 | -835.0 | -622.1 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 7.54 | 208.87 | 27.44 | 273.44 | 0.4596 | -143.0 | -117.9 | |
| 0.00 | 2.03 | 0.00 | 1.13 | 8.33 | 208.76 | 27.33 | 275.17 | 0.4580 | 771.0 | 591.3 | |
| 0.71 | 1.85 | 0.39 | 1.03 | 6.54 | 208.43 | 27.00 | 271.23 | 0.4531 | 651.8 | 483.9 | |
| 0.44 | 1.76 | 0.24 | 0.98 | 6.64 | 208.27 | 26.84 | 271.43 | 0.4505 | 939.6 | 771.9 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 6.91 | 208.29 | 26.86 | 272.04 | 0.4506 | 460.0 | 345.2 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 7.73 | 208.10 | 26.67 | 273.87 | 0.4477 | 635.0 | 572.0 | |
| 0.00 | 2.03 | 0.00 | 1.12 | 7.53 | 207.92 | 26.49 | 273.42 | 0.4448 | 620.0 | 588.8 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 7.35 | 207.88 | 26.44 | 273.02 | 0.4441 | 646.0 | 520.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 6.91 | 207.81 | 26.38 | 272.00 | 0.4432 | 598.0 | 496.6 | |
| 0.00 | 1.67 | 0.00 | 0.92 | 8.02 | 207.82 | 26.39 | 274.52 | 0.4433 | 894.0 | 690.1 | |
| 0.00 | 1.59 | 0.00 | 0.87 | 7.40 | 207.61 | 26.18 | 273.12 | 0.4399 | 741.0 | 748.6 | |
| 0.00 | 1.94 | 0.00 | 1.07 | 7.64 | 207.52 | 26.09 | 273.68 | 0.4386 | 860.0 | 731.4 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 7.47 | 207.31 | 25.88 | 273.29 | 0.4353 | 832.0 | 751.7 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 6.74 | 207.06 | 25.63 | 271.57 | 0.4315 | 732.0 | 647.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 6.90 | 206.87 | 25.44 | 271.93 | 0.4285 | 869.0 | 647.0 | |
| 0.00 | 3.70 | 0.00 | 2.03 | 7.17 | 206.85 | 25.42 | 272.57 | 0.4281 | 905.0 | 734.0 | |
| 0.00 | 3.08 | 0.00 | 1.63 | 6.88 | 201.94 | 20.51 | 271.70 | 0.3494 | 6.0 | 7.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
