SDO HMI 2014-10-01 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.37 | 319.83 | 42.56 | 163.17 | 11.98 | 168.75 | -12.68 | 65.68 | 0.2364 | -235.4 | -107.7 | |
|
previous
or next observation for the same group /

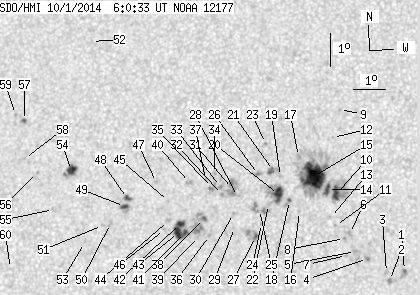

back to the solar disc SDO HMI 2014-10-01 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 4.76 | 0.18 | 2.38 | 9.83 | 173.39 | -8.04 | 68.10 | 0.1492 | -1082.5 | -842.2 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 9.52 | 172.94 | -8.49 | 70.99 | 0.1548 | -1030.0 | -869.1 | |
| 0.00 | 2.38 | 0.00 | 1.19 | 9.76 | 172.84 | -8.59 | 69.73 | 0.1577 | -788.0 | -648.1 | |
| 0.00 | 2.38 | 0.00 | 1.20 | 10.17 | 172.24 | -9.19 | 68.56 | 0.1697 | -1081.0 | -967.1 | |
| 0.00 | 1.94 | 0.00 | 0.98 | 10.37 | 171.87 | -9.57 | 68.20 | 0.1769 | -970.0 | -824.3 | |
| 0.00 | 2.12 | 0.00 | 1.07 | 10.91 | 171.66 | -9.77 | 65.81 | 0.1835 | -1055.0 | -881.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 10.25 | 171.59 | -9.84 | 69.37 | 0.1805 | -817.0 | -611.5 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 10.76 | 171.51 | -9.92 | 66.89 | 0.1848 | -860.0 | -668.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 14.65 | 171.21 | -10.23 | 50.86 | 0.2225 | -768.0 | -601.2 | |
| 5.99 | 123.75 | 3.03 | 62.69 | 12.11 | 171.22 | -10.21 | 61.08 | 0.1990 | -1213.6 | -489.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 11.14 | 171.22 | -10.21 | 65.57 | 0.1919 | -811.0 | -623.9 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 13.80 | 171.02 | -10.41 | 54.51 | 0.2165 | 610.0 | 391.3 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 11.38 | 171.06 | -10.38 | 64.76 | 0.1961 | -789.0 | -601.0 | |
| 3.70 | -10.00 | 1.87 | -10.00 | 12.22 | 170.93 | -10.50 | 61.21 | 0.2042 | -1215.8 | 999999 | |
| 36.84 | -10.00 | 18.68 | -10.00 | 12.61 | 170.48 | -10.95 | 60.55 | 0.2139 | -1232.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 11.54 | 170.08 | -11.35 | 65.86 | 0.2122 | -861.0 | -630.9 | |
| 0.00 | 2.47 | 0.00 | 1.25 | 13.20 | 169.98 | -11.45 | 59.20 | 0.2260 | -137.0 | -77.0 | |
| 0.62 | 3.70 | 0.31 | 1.88 | 11.87 | 169.76 | -11.67 | 65.04 | 0.2194 | -1093.9 | -841.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 12.58 | 169.44 | -11.99 | 62.68 | 0.2292 | -872.0 | -636.3 | |
| 8.99 | 21.24 | 4.57 | 10.81 | 12.04 | 169.41 | -12.03 | 64.94 | 0.2260 | -1129.9 | -437.7 | |
| 0.00 | 6.43 | 0.00 | 3.28 | 12.76 | 169.21 | -12.22 | 62.40 | 0.2339 | -942.0 | -762.5 | |
| 0.00 | 2.73 | 0.00 | 1.39 | 11.73 | 169.11 | -12.33 | 66.69 | 0.2286 | -95.0 | -132.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 13.57 | 168.92 | -12.51 | 59.91 | 0.2445 | 818.0 | 594.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 11.15 | 168.91 | -12.52 | 69.36 | 0.2283 | -731.0 | -489.5 | |
| 0.00 | 10.49 | 0.00 | 5.34 | 11.57 | 168.83 | -12.60 | 67.75 | 0.2320 | -329.0 | -694.5 | |
| 0.00 | 3.00 | 0.00 | 1.53 | 12.63 | 168.75 | -12.68 | 63.72 | 0.2400 | -683.0 | -525.1 | |
| 1.06 | 9.25 | 0.54 | 4.71 | 10.76 | 168.74 | -12.69 | 71.24 | 0.2290 | 1101.2 | 851.4 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 11.95 | 168.12 | -13.31 | 67.29 | 0.2453 | 59.0 | -24.2 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 11.01 | 168.07 | -13.36 | 71.01 | 0.2410 | 660.0 | 537.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.43 | 168.02 | -13.41 | 69.42 | 0.2440 | 961.0 | 683.9 | |
| 0.00 | 14.45 | 0.00 | 7.39 | 12.19 | 167.95 | -13.48 | 66.63 | 0.2494 | 393.0 | 391.2 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 12.00 | 167.64 | -13.79 | 67.76 | 0.2530 | 1072.0 | 914.8 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 12.24 | 167.57 | -13.86 | 66.97 | 0.2556 | 1038.0 | 810.1 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 12.62 | 167.36 | -14.07 | 65.86 | 0.2612 | 889.0 | 673.6 | |
| 0.00 | 4.05 | 0.00 | 2.08 | 12.20 | 167.32 | -14.12 | 67.44 | 0.2593 | 1025.0 | 919.2 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 10.75 | 167.29 | -14.14 | 72.89 | 0.2522 | 959.0 | 796.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 12.43 | 167.08 | -14.35 | 66.90 | 0.2643 | 880.0 | 732.0 | |
| 0.97 | 38.25 | 0.50 | 19.64 | 11.26 | 167.11 | -14.32 | 71.16 | 0.2575 | 1094.4 | 883.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.71 | 166.95 | -14.48 | 73.38 | 0.2576 | 626.0 | 584.4 | |
| 0.00 | 3.44 | 0.00 | 1.77 | 12.33 | 166.58 | -14.85 | 67.91 | 0.2715 | 1016.0 | 781.9 | |
| 2.20 | -38.00 | 1.13 | -38.00 | 10.82 | 166.53 | -14.90 | 73.36 | 0.2648 | 1240.6 | 999999 | |
| 4.14 | -38.00 | 2.13 | -38.00 | 11.09 | 166.36 | -15.07 | 72.55 | 0.2687 | 1115.3 | 999999 | |
| 7.58 | -38.00 | 3.90 | -38.00 | 10.82 | 166.31 | -15.12 | 73.59 | 0.2683 | 1061.0 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.36 | 11.17 | 165.98 | -15.46 | 72.63 | 0.2752 | 723.0 | 574.3 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 11.74 | 165.95 | -15.49 | 70.67 | 0.2783 | 819.0 | 661.1 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 10.89 | 165.86 | -15.57 | 73.70 | 0.2758 | 682.0 | 523.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 12.30 | 165.53 | -15.90 | 69.20 | 0.2876 | 777.0 | 652.5 | |
| 1.85 | 3.88 | 0.96 | 2.01 | 11.79 | 164.63 | -16.80 | 71.75 | 0.2992 | -993.7 | -804.6 | |
| 2.29 | 5.73 | 1.19 | 2.97 | 11.55 | 164.55 | -16.88 | 72.61 | 0.2995 | -1084.0 | -794.9 | |
| 0.00 | 2.47 | 0.00 | 1.28 | 11.02 | 164.14 | -17.30 | 74.63 | 0.3040 | -689.0 | -589.7 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 10.95 | 163.88 | -17.55 | 75.02 | 0.3078 | -753.0 | -582.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 16.50 | 163.09 | -18.34 | 59.80 | 0.3506 | -3.0 | -8.3 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 10.42 | 163.34 | -18.10 | 77.04 | 0.3148 | 778.0 | 635.2 | |
| 5.91 | 10.75 | 3.10 | 5.64 | 12.57 | 162.77 | -18.66 | 70.92 | 0.3319 | 1103.3 | 721.4 | |
| 0.00 | 2.03 | 0.00 | 1.07 | 11.38 | 162.28 | -19.16 | 74.77 | 0.3349 | 546.0 | 640.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 12.47 | 161.67 | -19.76 | 72.04 | 0.3485 | 718.0 | 499.8 | |
| 0.88 | 2.20 | 0.47 | 1.17 | 14.02 | 161.12 | -20.32 | 68.27 | 0.3642 | 974.6 | 771.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 12.88 | 161.22 | -20.22 | 71.25 | 0.3573 | 791.0 | 628.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 14.19 | 160.80 | -20.63 | 68.09 | 0.3698 | 749.0 | 626.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 9.55 | 161.00 | -20.43 | 80.64 | 0.3504 | -3.0 | 2.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
