SDO HMI 2014-10-01 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.74 | 96.26 | 13.38 | 65.56 | -9.98 | 140.73 | -40.15 | 112.25 | 0.6886 | 618.5 | 309.0 | |
|
previous
or next observation for the same group /

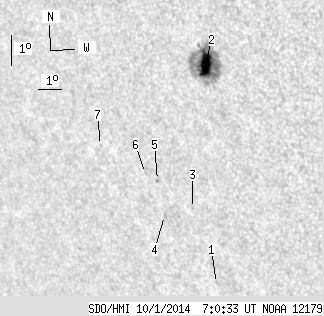

back to the solar disc SDO HMI 2014-10-01 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.83 | -16.70 | 139.92 | -40.96 | 120.50 | 0.7311 | 553.0 | 452.8 | |
| 19.74 | 90.08 | 13.38 | 61.07 | -9.66 | 140.90 | -39.98 | 111.92 | 0.6851 | 1005.4 | 360.8 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -14.31 | 139.51 | -41.37 | 117.29 | 0.7230 | 512.0 | 481.2 | |
| 0.00 | 1.67 | 0.00 | 1.22 | -14.64 | 138.26 | -42.62 | 117.02 | 0.7378 | -762.0 | -591.4 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -13.52 | 138.23 | -42.66 | 115.61 | 0.7329 | -721.0 | -669.0 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -13.34 | 137.76 | -43.12 | 115.14 | 0.7370 | -533.0 | -440.6 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -12.60 | 136.00 | -44.89 | 113.35 | 0.7525 | -514.0 | -396.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
