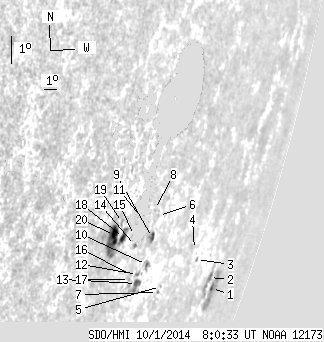

SDO HMI 2014-10-01 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.46 | 461.29 | 38.69 | 688.29 | -15.42 | 247.80 | 67.46 | 250.94 | 0.9417 | -177.9 | 81.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.41 | 21.77 | 3.74 | 58.37 | -17.96 | 256.65 | 76.31 | 250.21 | 0.9831 | -237.2 | -204.2 | |
| 1.67 | 11.72 | 4.12 | 28.75 | -17.51 | 255.80 | 75.46 | 250.51 | 0.9802 | 404.6 | 318.4 | |
| 0.00 | 1.23 | 0.00 | 2.50 | -16.65 | 253.32 | 72.98 | 250.90 | 0.9706 | 300.0 | 303.2 | |
| 0.00 | 0.44 | 0.00 | 0.85 | -16.26 | 252.73 | 72.39 | 251.17 | 0.9679 | 385.0 | 318.2 | |
| 0.00 | 0.62 | 0.00 | 1.05 | -17.15 | 250.18 | 69.84 | 249.73 | 0.9575 | -23.0 | 27.6 | |
| 0.00 | 0.88 | 0.00 | 1.31 | -14.66 | 248.15 | 67.81 | 251.83 | 0.9443 | 453.0 | 411.9 | |
| 0.00 | 1.32 | 0.00 | 2.23 | -17.33 | 250.05 | 69.72 | 249.52 | 0.9571 | -32.0 | -35.9 | |
| 0.00 | 0.71 | 0.00 | 1.02 | -14.41 | 247.67 | 67.33 | 251.97 | 0.9413 | 359.0 | 342.2 | |
| 2.47 | 5.29 | 3.68 | 7.88 | -15.35 | 248.11 | 67.77 | 251.10 | 0.9449 | 610.7 | 537.5 | |
| 0.97 | 4.32 | 1.47 | 6.58 | -16.23 | 248.22 | 67.88 | 250.23 | 0.9466 | -291.2 | -181.9 | |
| 0.97 | 348.04 | 1.35 | 490.14 | -14.56 | 246.72 | 66.38 | 251.60 | 0.9361 | 294.1 | 153.5 | |
| 0.00 | 2.03 | 0.00 | 3.01 | -16.48 | 247.66 | 67.32 | 249.83 | 0.9440 | -602.0 | -556.7 | |
| 2.91 | 12.51 | 4.36 | 18.65 | -16.79 | 247.79 | 67.45 | 249.55 | 0.9451 | -430.1 | -317.5 | |
| 0.35 | 1.32 | 0.50 | 1.86 | -15.46 | 246.80 | 66.46 | 250.68 | 0.9379 | -138.2 | -105.1 | |
| 2.64 | -11.00 | 3.68 | -11.00 | -15.11 | 246.50 | 66.17 | 250.98 | 0.9356 | -177.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.40 | -16.41 | 247.04 | 66.70 | 249.75 | 0.9405 | -196.0 | -294.6 | |
| 0.00 | 0.97 | 0.00 | 1.40 | -16.58 | 247.07 | 66.73 | 249.59 | 0.9409 | -392.0 | -355.2 | |
| 3.26 | 44.51 | 4.36 | 57.83 | -15.08 | 245.64 | 65.30 | 250.80 | 0.9305 | -223.9 | -307.4 | |
| 0.00 | 2.64 | 0.00 | 3.46 | -14.56 | 245.27 | 64.93 | 251.25 | 0.9275 | -511.0 | -390.3 | |
| 8.81 | -18.00 | 11.43 | -18.00 | -14.93 | 244.89 | 64.55 | 250.77 | 0.9257 | -688.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
