SDO HMI 2014-10-01 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.65 | 207.48 | 50.33 | 527.78 | 15.32 | 260.21 | 79.87 | 284.36 | 0.9797 | 53.6 | -114.2 | |
|
previous
or next observation for the same group /

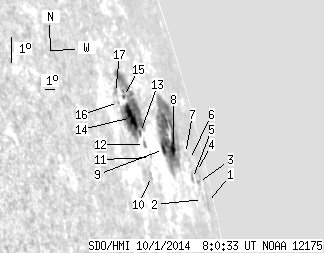

back to the solar disc SDO HMI 2014-10-01 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.02 | 0.00 | 28.26 | 12.75 | 266.52 | 86.18 | 282.27 | 0.9963 | 258.0 | 179.0 | |
| 0.00 | 0.44 | 0.00 | 1.91 | 13.00 | 265.19 | 84.85 | 282.39 | 0.9941 | -271.0 | -262.8 | |
| 0.00 | 1.85 | 0.00 | 8.08 | 13.52 | 265.19 | 84.86 | 282.92 | 0.9940 | -52.0 | 4.7 | |
| 0.00 | 2.47 | 0.00 | 11.18 | 13.84 | 265.39 | 85.05 | 283.25 | 0.9943 | 49.0 | 124.9 | |
| 0.00 | 2.12 | 0.00 | 7.76 | 13.79 | 263.94 | 83.60 | 283.08 | 0.9914 | 36.0 | 2.1 | |
| 0.00 | 0.26 | 0.00 | 1.01 | 14.34 | 264.35 | 84.02 | 283.66 | 0.9922 | 209.0 | 194.0 | |
| 0.00 | 1.15 | 0.00 | 4.04 | 14.59 | 263.79 | 83.45 | 283.86 | 0.9909 | -67.0 | -57.2 | |
| 5.29 | 102.50 | 14.91 | 284.96 | 14.99 | 261.68 | 81.34 | 284.10 | 0.9854 | -381.4 | -224.1 | |
| 3.08 | -8.00 | 7.56 | -8.00 | 15.15 | 260.00 | 79.66 | 284.15 | 0.9802 | -376.7 | 999999 | |
| 0.00 | 2.47 | 0.00 | 4.98 | 14.61 | 257.39 | 77.05 | 283.43 | 0.9707 | 455.0 | 289.1 | |
| 0.00 | 0.62 | 0.00 | 1.29 | 15.14 | 257.89 | 77.55 | 284.01 | 0.9725 | 246.0 | 247.4 | |
| 0.00 | 2.47 | 0.00 | 5.05 | 15.58 | 257.57 | 77.23 | 284.44 | 0.9712 | 413.0 | 249.1 | |
| 1.06 | 82.23 | 2.13 | 162.17 | 15.97 | 257.48 | 77.15 | 284.83 | 0.9707 | 111.7 | -57.2 | |
| 12.51 | -13.00 | 24.38 | -13.00 | 16.50 | 256.90 | 76.56 | 285.36 | 0.9682 | 368.2 | 999999 | |
| 0.71 | -13.00 | 1.35 | -13.00 | 17.19 | 256.69 | 76.35 | 286.06 | 0.9672 | 308.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.77 | 17.09 | 255.90 | 75.56 | 285.92 | 0.9638 | 479.0 | 475.1 | |
| 0.00 | 2.91 | 0.00 | 5.32 | 17.40 | 255.90 | 75.56 | 286.25 | 0.9637 | 490.0 | 405.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
