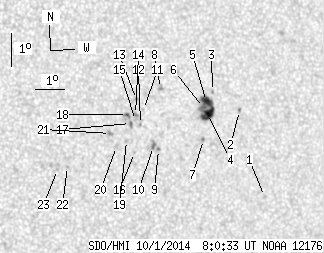

SDO HMI 2014-10-01 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.31 | 62.23 | 12.69 | 35.09 | 7.35 | 209.07 | 28.74 | 273.05 | 0.4794 | -41.1 | 216.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.77 | 4.88 | 212.06 | 31.73 | 268.41 | 0.5262 | -589.0 | -493.7 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 7.51 | 211.36 | 31.02 | 273.42 | 0.5139 | -875.0 | -793.9 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 8.13 | 210.46 | 30.12 | 274.67 | 0.5004 | -662.0 | -551.5 | |
| 10.40 | 28.11 | 5.93 | 16.02 | 7.49 | 210.23 | 29.89 | 273.36 | 0.4970 | -1052.0 | -744.4 | |
| 7.67 | -4.00 | 4.37 | -4.00 | 7.85 | 210.22 | 29.88 | 274.09 | 0.4968 | -1063.0 | 999999 | |
| 2.47 | -4.00 | 1.41 | -4.00 | 7.67 | 210.10 | 29.77 | 273.74 | 0.4951 | -799.6 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.85 | 6.71 | 210.03 | 29.70 | 271.79 | 0.4942 | -906.0 | -722.4 | |
| 0.00 | 2.38 | 0.00 | 1.34 | 8.33 | 208.66 | 28.32 | 275.13 | 0.4733 | 918.0 | 580.2 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 6.50 | 208.46 | 28.13 | 271.24 | 0.4704 | 801.0 | 668.3 | |
| 0.62 | 4.05 | 0.35 | 2.27 | 6.60 | 208.30 | 27.96 | 271.45 | 0.4678 | 922.0 | 678.7 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 7.73 | 208.03 | 27.69 | 273.87 | 0.4635 | 572.0 | 415.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 7.29 | 207.90 | 27.56 | 272.90 | 0.4614 | 688.0 | 465.7 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 8.04 | 207.82 | 27.48 | 274.55 | 0.4602 | 744.0 | 680.2 | |
| 0.00 | 1.85 | 0.00 | 1.03 | 7.60 | 207.75 | 27.41 | 273.58 | 0.4591 | 901.0 | 748.1 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 7.42 | 207.74 | 27.40 | 273.18 | 0.4589 | 681.0 | 441.6 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 6.46 | 207.64 | 27.30 | 271.08 | 0.4577 | 594.0 | 488.5 | |
| 0.53 | 2.64 | 0.29 | 1.47 | 7.34 | 207.56 | 27.22 | 273.01 | 0.4562 | 922.2 | 815.3 | |
| 0.62 | 2.82 | 0.34 | 1.57 | 7.61 | 207.48 | 27.14 | 273.61 | 0.4549 | 881.9 | 801.4 | |
| 0.00 | 1.59 | 0.00 | 0.88 | 6.83 | 207.39 | 27.05 | 271.89 | 0.4537 | 720.0 | 619.3 | |
| 0.00 | 1.76 | 0.00 | 0.98 | 6.67 | 207.04 | 26.70 | 271.51 | 0.4484 | 769.0 | 562.5 | |
| 0.00 | 2.56 | 0.00 | 1.41 | 7.07 | 206.86 | 26.53 | 272.40 | 0.4454 | 1016.0 | 826.0 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 6.16 | 205.37 | 25.03 | 270.18 | 0.4224 | 784.0 | 652.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 6.08 | 205.03 | 24.69 | 269.97 | 0.4171 | 894.0 | 683.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
