SDO HMI 2014-10-01 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.20 | 40.96 | 1.23 | 23.12 | -14.22 | 162.48 | -17.86 | 139.97 | 0.4710 | 181.7 | 87.2 | |
|
previous
or next observation for the same group /

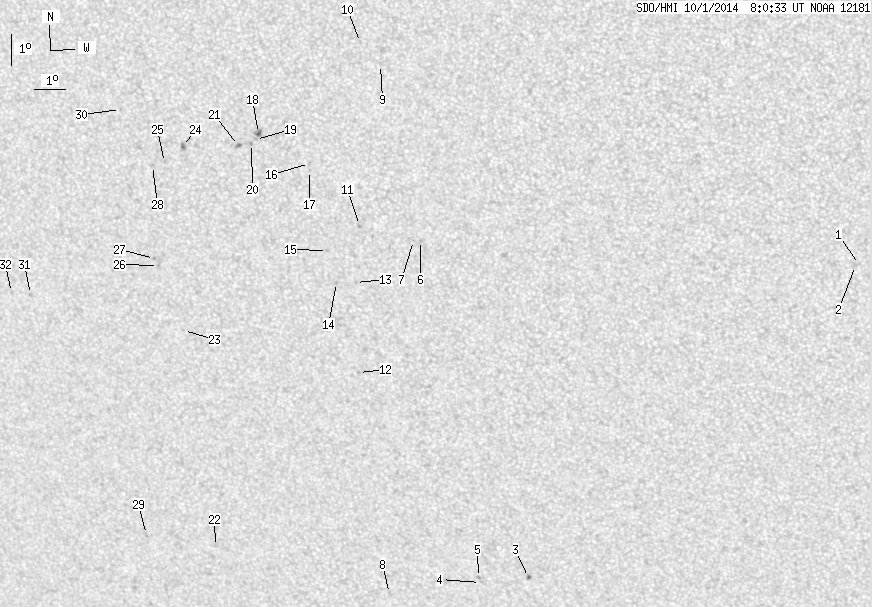

back to the solar disc SDO HMI 2014-10-01 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.67 | 180.37 | 0.03 | 180.08 | 0.3496 | 34.0 | 29.7 | |
| 0.00 | 2.12 | 0.00 | 1.12 | -13.70 | 180.24 | -0.09 | 179.74 | 0.3502 | 1.0 | 10.8 | |
| 0.53 | 1.41 | 0.31 | 0.83 | -24.23 | 169.39 | -10.95 | 161.31 | 0.5427 | 851.7 | 805.0 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -24.44 | 167.75 | -12.59 | 158.92 | 0.5538 | -517.0 | -495.8 | |
| 0.00 | 1.50 | 0.00 | 0.89 | -24.27 | 167.70 | -12.64 | 158.72 | 0.5517 | -908.0 | -649.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -13.08 | 166.71 | -13.63 | 145.61 | 0.4081 | 798.0 | 677.8 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -13.09 | 166.49 | -13.85 | 145.18 | 0.4102 | 766.0 | 719.2 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -24.93 | 164.59 | -15.75 | 154.69 | 0.5779 | 677.0 | 583.7 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -7.58 | 165.71 | -14.63 | 134.15 | 0.3504 | -3.0 | 1.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -6.92 | 165.11 | -15.23 | 131.59 | 0.3502 | 3.0 | -0.8 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -12.66 | 164.79 | -15.54 | 141.39 | 0.4208 | 707.0 | 652.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -17.42 | 164.39 | -15.95 | 147.06 | 0.4840 | 764.0 | 664.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -14.49 | 164.54 | -15.80 | 143.58 | 0.4459 | 723.0 | 583.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.51 | 163.92 | -16.42 | 142.56 | 0.4519 | 724.0 | 597.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -13.49 | 163.71 | -16.63 | 140.74 | 0.4416 | 799.0 | 683.2 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -10.75 | 163.31 | -17.02 | 135.71 | 0.4137 | 700.0 | 522.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -10.97 | 163.30 | -17.04 | 136.07 | 0.4163 | 706.0 | 543.3 | |
| 1.32 | 3.26 | 0.72 | 1.78 | -9.86 | 161.73 | -18.61 | 131.61 | 0.4222 | -1115.4 | -850.4 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -10.05 | 161.62 | -18.71 | 131.78 | 0.4255 | -725.0 | -565.2 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -10.19 | 161.49 | -18.85 | 131.81 | 0.4284 | -735.0 | -644.9 | |
| 0.00 | 2.91 | 0.00 | 1.60 | -10.26 | 161.06 | -19.28 | 131.31 | 0.4342 | -927.0 | -711.9 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -23.51 | 158.76 | -21.58 | 145.77 | 0.6019 | 655.0 | 548.7 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -16.27 | 158.71 | -21.63 | 137.22 | 0.5231 | 671.0 | 528.2 | |
| 0.35 | 3.35 | 0.20 | 1.86 | -10.37 | 159.23 | -21.10 | 128.91 | 0.4571 | 889.0 | 768.7 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -10.90 | 158.60 | -21.74 | 128.98 | 0.4698 | 868.0 | 698.7 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -14.19 | 158.10 | -22.24 | 133.51 | 0.5079 | -858.0 | -734.8 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -13.98 | 157.99 | -22.35 | 133.05 | 0.5069 | -927.0 | -862.4 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -11.01 | 158.20 | -22.14 | 128.65 | 0.4757 | 703.0 | 562.4 | |
| 0.00 | 1.67 | 0.00 | 1.05 | -23.21 | 156.36 | -23.98 | 142.65 | 0.6179 | 310.0 | 291.9 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -9.30 | 157.27 | -23.07 | 124.58 | 0.4716 | 811.0 | 633.7 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -15.35 | 153.59 | -26.75 | 129.94 | 0.5683 | -682.0 | -506.8 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -15.32 | 152.92 | -27.41 | 129.22 | 0.5754 | -661.0 | -512.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
