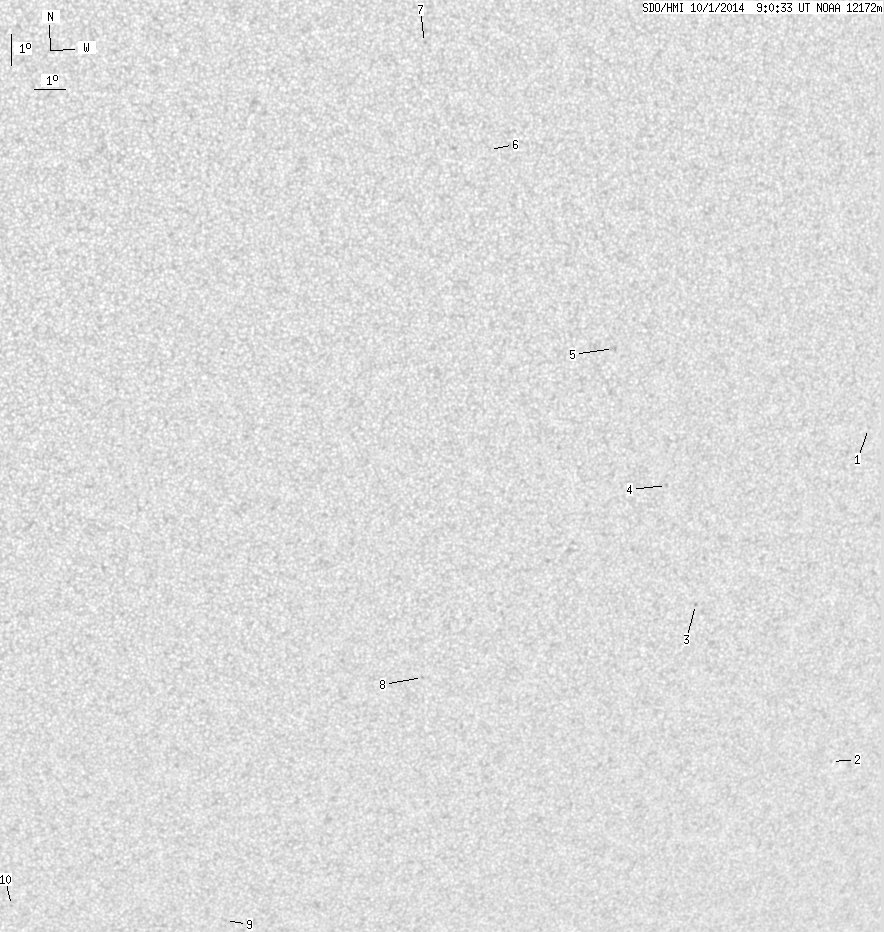

SDO HMI 2014-10-01 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.27 | 0.00 | 6.64 | -17.44 | 199.66 | 19.87 | 220.42 | 0.5290 | -200.7 | -230.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.49 | -15.01 | 209.42 | 29.63 | 233.35 | 0.5973 | 394.0 | 414.2 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -26.30 | 210.52 | 30.73 | 220.84 | 0.7028 | 636.0 | 554.9 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -20.50 | 204.17 | 24.38 | 220.84 | 0.5935 | -681.0 | -590.1 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -16.48 | 202.58 | 22.79 | 223.98 | 0.5370 | -640.0 | -551.4 | |
| 0.00 | 3.08 | 0.00 | 1.73 | -11.98 | 200.36 | 20.57 | 227.68 | 0.4668 | -691.0 | -529.7 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -5.61 | 196.06 | 16.27 | 233.20 | 0.3497 | 6.0 | -3.7 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -2.28 | 193.97 | 14.18 | 238.08 | 0.2897 | -701.0 | -558.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -22.59 | 195.08 | 15.29 | 206.64 | 0.5452 | 751.0 | 590.2 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -31.19 | 189.22 | 9.43 | 192.88 | 0.6309 | -621.0 | -407.3 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -30.51 | 181.65 | 1.86 | 182.64 | 0.6076 | -460.0 | -426.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
