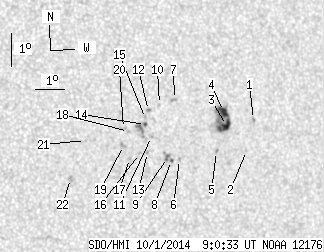

SDO HMI 2014-10-01 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.66 | 76.33 | 7.82 | 43.18 | 7.41 | 208.97 | 29.18 | 273.18 | 0.4861 | 130.4 | 51.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 1.02 | 7.56 | 211.41 | 31.62 | 273.53 | 0.5228 | -909.0 | -709.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 6.64 | 211.09 | 31.30 | 271.76 | 0.5184 | -631.0 | -520.2 | |
| 5.29 | 32.69 | 3.04 | 18.75 | 7.43 | 210.45 | 30.66 | 273.28 | 0.5085 | -1000.5 | -820.4 | |
| 6.17 | -3.00 | 3.54 | -3.00 | 7.86 | 210.37 | 30.58 | 274.12 | 0.5074 | -1063.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.86 | 6.68 | 210.04 | 30.25 | 271.76 | 0.5026 | -765.0 | -689.5 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 6.51 | 208.74 | 28.95 | 271.33 | 0.4830 | 585.0 | 462.5 | |
| 0.00 | 2.03 | 0.00 | 1.14 | 8.32 | 208.70 | 28.91 | 275.09 | 0.4822 | 652.0 | 485.5 | |
| 0.53 | 7.14 | 0.30 | 4.02 | 6.50 | 208.46 | 28.67 | 271.28 | 0.4788 | 520.0 | 552.2 | |
| 0.97 | -8.00 | 0.55 | -8.00 | 6.60 | 208.33 | 28.54 | 271.48 | 0.4767 | 835.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 8.20 | 208.17 | 28.38 | 274.86 | 0.4741 | 699.0 | 531.9 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 7.26 | 207.82 | 28.03 | 272.85 | 0.4687 | 720.0 | 512.3 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 8.04 | 207.78 | 27.99 | 274.54 | 0.4681 | 808.0 | 631.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 6.78 | 207.66 | 27.86 | 271.83 | 0.4663 | 755.0 | 674.5 | |
| 0.70 | 9.96 | 0.39 | 5.56 | 7.63 | 207.64 | 27.85 | 273.65 | 0.4659 | 805.5 | 828.7 | |
| 0.00 | 1.94 | 0.00 | 1.08 | 7.81 | 207.66 | 27.87 | 274.04 | 0.4662 | 755.0 | 566.2 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 6.77 | 207.38 | 27.59 | 271.79 | 0.4620 | 760.0 | 600.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 6.64 | 207.03 | 27.24 | 271.48 | 0.4567 | 731.0 | 641.2 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 7.45 | 207.05 | 27.26 | 273.26 | 0.4568 | 752.0 | 597.3 | |
| 0.00 | 3.00 | 0.00 | 1.66 | 7.04 | 206.85 | 27.06 | 272.35 | 0.4538 | 1050.0 | 735.8 | |
| 0.00 | 2.38 | 0.00 | 1.32 | 7.55 | 206.89 | 27.10 | 273.48 | 0.4543 | 708.0 | 640.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 7.26 | 205.58 | 25.79 | 272.81 | 0.4339 | 554.0 | 529.5 | |
| 0.00 | 2.47 | 0.00 | 1.35 | 6.14 | 205.01 | 25.22 | 270.17 | 0.4255 | 823.0 | 560.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
