SDO HMI 2014-10-01 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.46 | 290.65 | 40.75 | 147.40 | 11.95 | 168.83 | -10.96 | 62.43 | 0.2105 | -284.5 | -106.0 | |
|
previous
or next observation for the same group /

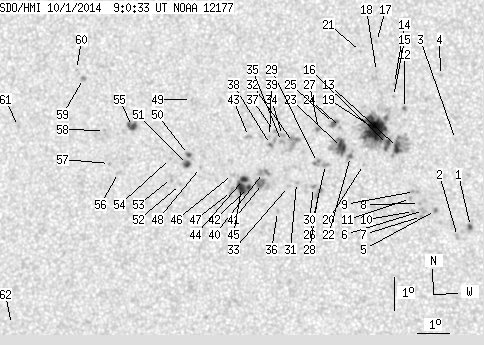

back to the solar disc SDO HMI 2014-10-01 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.15 | 3.00 | 0.57 | 1.50 | 9.78 | 173.50 | -6.29 | 63.30 | 0.1214 | -1128.2 | -857.0 | |
| 0.00 | 2.47 | 0.00 | 1.23 | 9.47 | 173.11 | -6.68 | 66.85 | 0.1254 | -843.0 | -707.5 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 12.39 | 172.98 | -6.81 | 49.22 | 0.1536 | -732.0 | -512.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 14.32 | 172.46 | -7.33 | 42.81 | 0.1827 | -780.0 | -575.9 | |
| 0.00 | 2.29 | 0.00 | 1.15 | 10.24 | 172.42 | -7.37 | 63.59 | 0.1417 | -1205.0 | -970.0 | |
| 0.00 | 3.44 | 0.00 | 1.72 | 10.24 | 172.05 | -7.74 | 64.68 | 0.1474 | -817.0 | -748.1 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 10.06 | 171.99 | -7.80 | 65.97 | 0.1470 | -869.0 | -711.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 10.45 | 171.92 | -7.87 | 63.76 | 0.1509 | -956.0 | -811.6 | |
| 0.00 | 3.17 | 0.00 | 1.59 | 10.81 | 171.76 | -8.04 | 62.10 | 0.1561 | -958.0 | -838.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 10.20 | 171.74 | -8.05 | 65.71 | 0.1519 | -984.0 | -785.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 10.59 | 171.64 | -8.15 | 63.66 | 0.1563 | -885.0 | -726.9 | |
| 0.35 | 1.59 | 0.18 | 0.80 | 13.30 | 171.37 | -8.42 | 50.81 | 0.1847 | -981.8 | -818.5 | |
| 5.38 | 24.41 | 2.70 | 12.28 | 12.12 | 171.19 | -8.60 | 56.78 | 0.1755 | -1227.2 | -602.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 14.05 | 171.03 | -8.76 | 48.81 | 0.1972 | 696.0 | 525.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 13.66 | 171.02 | -8.78 | 50.44 | 0.1932 | -595.0 | -404.4 | |
| 4.05 | 85.22 | 2.04 | 42.99 | 12.21 | 170.88 | -8.91 | 57.27 | 0.1808 | -1199.5 | -548.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 15.32 | 170.42 | -9.38 | 46.08 | 0.2191 | -731.0 | -516.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 14.41 | 170.45 | -9.34 | 49.21 | 0.2085 | 499.0 | 361.1 | |
| 35.78 | -16.00 | 18.05 | -16.00 | 12.65 | 170.49 | -9.30 | 56.30 | 0.1904 | -1200.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 11.59 | 170.15 | -9.64 | 62.09 | 0.1864 | -761.0 | -537.1 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 15.00 | 169.92 | -9.87 | 48.57 | 0.2217 | -715.0 | -529.1 | |
| 0.88 | 4.58 | 0.44 | 2.31 | 11.83 | 169.74 | -10.05 | 61.94 | 0.1944 | -1147.8 | -821.0 | |
| 8.37 | 21.24 | 4.23 | 10.74 | 12.09 | 169.45 | -10.34 | 61.38 | 0.2009 | -1102.6 | -500.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.69 | 169.40 | -10.40 | 58.88 | 0.2065 | -854.0 | -674.0 | |
| 2.47 | 4.85 | 1.25 | 2.46 | 12.81 | 169.17 | -10.62 | 58.91 | 0.2108 | -901.6 | -718.7 | |
| 0.00 | 3.17 | 0.00 | 1.60 | 11.57 | 168.97 | -10.82 | 64.71 | 0.2043 | -962.0 | -785.0 | |
| 0.00 | 2.29 | 0.00 | 1.16 | 12.62 | 168.71 | -11.08 | 60.71 | 0.2160 | -855.0 | -656.0 | |
| 0.00 | 4.41 | 0.00 | 2.23 | 10.72 | 168.78 | -11.01 | 68.94 | 0.2019 | 989.0 | 846.2 | |
| 0.00 | 4.49 | 0.00 | 2.28 | 11.62 | 168.72 | -11.07 | 64.94 | 0.2086 | -755.0 | -656.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 10.87 | 168.62 | -11.17 | 68.52 | 0.2053 | 1103.0 | 924.2 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 11.01 | 168.09 | -11.70 | 68.74 | 0.2146 | 887.0 | 779.8 | |
| 0.00 | 11.02 | 0.00 | 5.60 | 12.21 | 167.94 | -11.85 | 63.87 | 0.2245 | 376.0 | 371.7 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 10.88 | 167.84 | -11.95 | 69.65 | 0.2178 | 755.0 | 662.4 | |
| 0.00 | 2.11 | 0.00 | 1.08 | 12.41 | 167.59 | -12.20 | 63.68 | 0.2313 | 434.0 | 531.3 | |
| 0.00 | 2.38 | 0.00 | 1.21 | 12.23 | 167.57 | -12.22 | 64.44 | 0.2304 | 936.0 | 772.6 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 10.12 | 167.53 | -12.26 | 73.41 | 0.2192 | 730.0 | 550.1 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 12.53 | 167.33 | -12.46 | 63.67 | 0.2360 | 915.0 | 695.9 | |
| 0.44 | 4.58 | 0.22 | 2.33 | 12.13 | 167.22 | -12.57 | 65.40 | 0.2350 | 1052.6 | 816.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.37 | 167.18 | -12.61 | 64.52 | 0.2373 | 853.0 | 667.7 | |
| 0.00 | 7.23 | 0.00 | 3.68 | 11.29 | 167.04 | -12.75 | 69.08 | 0.2327 | 764.0 | 868.1 | |
| 0.00 | 10.93 | 0.00 | 5.56 | 10.95 | 167.03 | -12.76 | 70.46 | 0.2312 | 1195.0 | 959.4 | |
| 2.03 | 21.15 | 1.03 | 10.79 | 10.82 | 166.59 | -13.20 | 71.53 | 0.2375 | 1181.3 | 666.4 | |
| 0.00 | 2.82 | 0.00 | 1.44 | 12.36 | 166.52 | -13.27 | 65.62 | 0.2473 | 987.0 | 781.8 | |
| 3.44 | -42.00 | 1.75 | -42.00 | 11.06 | 166.43 | -13.37 | 70.78 | 0.2414 | 1062.8 | 999999 | |
| 7.84 | -42.00 | 4.00 | -42.00 | 10.82 | 166.37 | -13.42 | 71.81 | 0.2410 | 1028.6 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.08 | 11.20 | 166.07 | -13.72 | 70.65 | 0.2477 | 659.0 | 556.9 | |
| 0.00 | 3.88 | 0.00 | 1.98 | 10.69 | 166.06 | -13.73 | 72.66 | 0.2454 | 414.0 | 229.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 11.38 | 165.05 | -14.74 | 71.10 | 0.2648 | 624.0 | 392.0 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 13.43 | 164.65 | -15.14 | 64.53 | 0.2827 | 687.0 | 589.2 | |
| 1.15 | 2.47 | 0.59 | 1.27 | 11.76 | 164.65 | -15.14 | 70.17 | 0.2730 | -972.7 | -813.4 | |
| 2.64 | 4.23 | 1.36 | 2.18 | 11.46 | 164.64 | -15.15 | 71.25 | 0.2718 | -1156.0 | -920.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 10.85 | 164.45 | -15.34 | 73.60 | 0.2721 | -884.0 | -636.0 | |
| 0.00 | 2.20 | 0.00 | 1.14 | 11.03 | 164.15 | -15.64 | 73.25 | 0.2776 | -778.0 | -623.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 11.63 | 164.09 | -15.70 | 71.22 | 0.2813 | -797.0 | -669.9 | |
| 4.49 | 7.40 | 2.34 | 3.85 | 12.55 | 162.81 | -16.98 | 69.44 | 0.3058 | 1085.0 | 774.4 | |
| 0.00 | 2.56 | 0.00 | 1.33 | 11.15 | 162.45 | -17.34 | 74.18 | 0.3052 | 796.0 | 648.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.42 | 162.15 | -17.64 | 73.58 | 0.3111 | 878.0 | 722.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 12.40 | 161.92 | -17.87 | 70.72 | 0.3189 | 906.0 | 711.0 | |
| 0.00 | 2.29 | 0.00 | 1.21 | 13.95 | 161.12 | -18.67 | 66.96 | 0.3391 | 1047.0 | 899.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 14.21 | 160.87 | -18.92 | 66.48 | 0.3443 | 817.0 | 687.7 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 12.42 | 159.12 | -20.67 | 72.76 | 0.3626 | 771.0 | 680.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 6.47 | 159.26 | -20.53 | 89.46 | 0.3501 | -12.0 | -4.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
