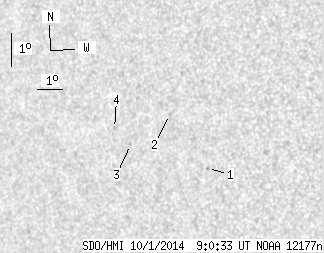

SDO HMI 2014-10-01 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.70 | 0.00 | 2.40 | 4.65 | 139.33 | -40.46 | 90.71 | 0.6490 | -252.0 | -214.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.61 | 3.90 | 141.34 | -38.45 | 92.18 | 0.6231 | -684.0 | -545.3 | |
| 0.00 | 1.06 | 0.00 | 0.68 | 5.41 | 139.76 | -40.03 | 89.58 | 0.6426 | -599.0 | -509.6 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 4.40 | 138.28 | -41.51 | 90.95 | 0.6632 | -305.0 | -228.2 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 4.83 | 137.60 | -42.19 | 90.22 | 0.6716 | 580.0 | 566.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
