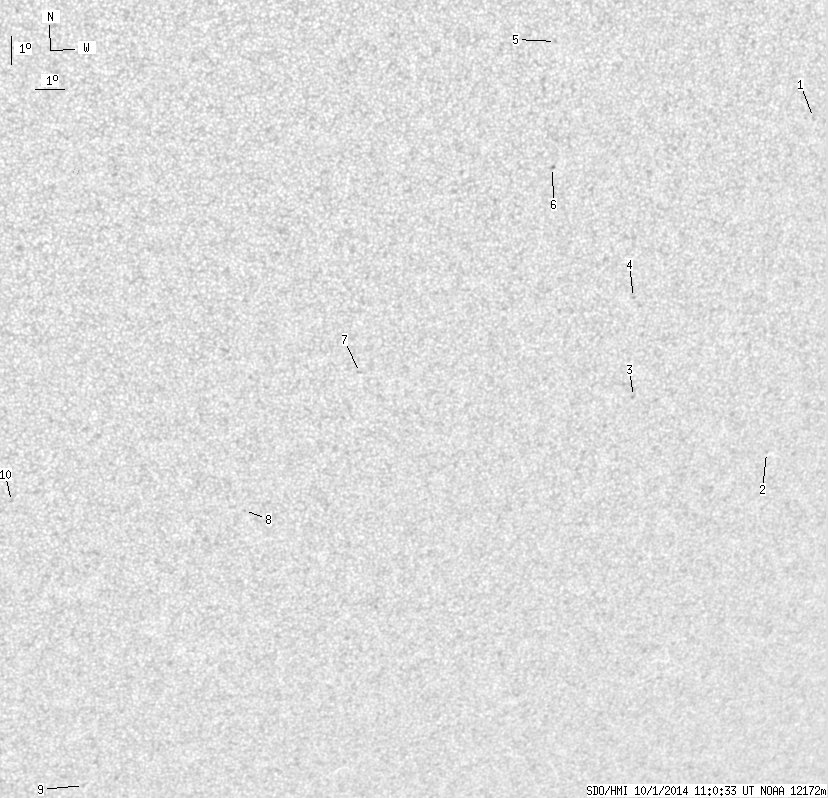

SDO HMI 2014-10-01 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.06 | 0.00 | 7.57 | -23.35 | 198.89 | 20.20 | 213.37 | 0.6078 | -206.9 | -68.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 1.10 | -14.94 | 209.68 | 30.98 | 234.67 | 0.6120 | 50.0 | 168.4 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -26.27 | 210.51 | 31.82 | 221.82 | 0.7113 | 615.0 | 588.2 | |
| 0.00 | 1.50 | 0.00 | 0.97 | -23.95 | 204.86 | 26.16 | 218.93 | 0.6435 | 570.0 | 495.6 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -20.53 | 204.18 | 25.48 | 222.04 | 0.6039 | -675.0 | -575.2 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -12.00 | 200.42 | 21.73 | 229.20 | 0.4802 | -724.0 | -597.5 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -16.06 | 200.73 | 22.03 | 223.60 | 0.5248 | -782.0 | -668.4 | |
| 0.00 | 1.67 | 0.00 | 0.99 | -22.66 | 195.01 | 16.31 | 208.08 | 0.5529 | 698.0 | 582.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -27.42 | 191.64 | 12.95 | 199.61 | 0.5948 | -554.0 | -475.2 | |
| 0.00 | 1.50 | 0.00 | 1.06 | -38.02 | 187.04 | 8.35 | 189.25 | 0.7142 | -568.0 | -448.4 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -26.92 | 183.64 | 4.94 | 187.90 | 0.5608 | -699.0 | -439.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
