SDO HMI 2014-10-01 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.88 | 448.16 | 40.46 | 722.28 | -15.40 | 247.72 | 69.03 | 251.32 | 0.9499 | -208.5 | 87.5 | |
|
previous
or next observation for the same group /

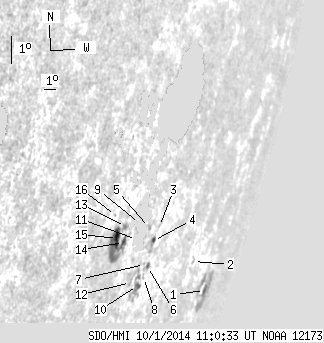

back to the solar disc SDO HMI 2014-10-01 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.26 | 27.93 | 10.10 | 84.94 | -17.94 | 256.67 | 77.97 | 250.53 | 0.9877 | -167.3 | -44.8 | |
| 0.00 | 1.32 | 0.00 | 3.02 | -16.63 | 253.47 | 74.77 | 251.26 | 0.9772 | 360.0 | 280.9 | |
| 0.00 | 0.62 | 0.00 | 1.01 | -14.94 | 248.41 | 69.72 | 251.96 | 0.9545 | 518.0 | 471.4 | |
| 1.50 | 5.11 | 2.44 | 8.30 | -15.36 | 248.18 | 69.48 | 251.49 | 0.9538 | 601.3 | 544.5 | |
| 0.00 | 1.94 | 0.00 | 3.02 | -14.87 | 247.47 | 68.78 | 251.84 | 0.9496 | 534.0 | 540.9 | |
| 1.15 | 2.82 | 1.89 | 4.64 | -16.20 | 248.28 | 69.58 | 250.65 | 0.9552 | -234.8 | -279.9 | |
| 0.00 | 2.38 | 0.00 | 3.85 | -16.09 | 247.93 | 69.23 | 250.68 | 0.9534 | -245.0 | -203.3 | |
| 0.00 | 0.26 | 0.00 | 0.44 | -16.54 | 248.19 | 69.49 | 250.28 | 0.9551 | -256.0 | -250.0 | |
| 2.20 | 343.06 | 3.26 | 521.34 | -14.63 | 246.46 | 67.77 | 251.86 | 0.9440 | 76.8 | 161.3 | |
| 1.94 | 18.59 | 3.15 | 29.90 | -16.75 | 247.82 | 69.12 | 249.98 | 0.9536 | -424.5 | -323.3 | |
| 3.26 | -9.00 | 4.88 | -9.00 | -15.14 | 246.55 | 67.86 | 251.34 | 0.9451 | -34.2 | 999999 | |
| 0.00 | 2.20 | 0.00 | 3.44 | -16.57 | 247.06 | 68.37 | 249.99 | 0.9496 | -287.0 | -287.7 | |
| 0.53 | 3.35 | 0.74 | 4.70 | -14.59 | 245.31 | 66.61 | 251.63 | 0.9375 | -522.2 | -401.0 | |
| 2.73 | 37.88 | 3.89 | 52.74 | -15.12 | 245.48 | 66.78 | 251.12 | 0.9391 | -288.9 | -330.3 | |
| 7.31 | -14.00 | 10.11 | -14.00 | -14.93 | 244.88 | 66.19 | 251.18 | 0.9355 | -676.2 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.94 | -14.13 | 244.26 | 65.57 | 251.86 | 0.9307 | -252.0 | -220.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
