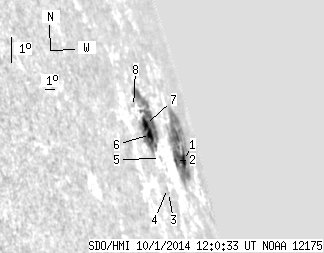

SDO HMI 2014-10-01 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.86 | 167.19 | 40.92 | 491.68 | 15.59 | 259.60 | 81.46 | 284.74 | 0.9850 | 73.5 | -151.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.35 | 91.70 | 11.77 | 318.80 | 15.07 | 261.46 | 83.32 | 284.34 | 0.9905 | -226.6 | -205.0 | |
| 1.32 | -1.00 | 3.89 | -1.00 | 15.23 | 259.82 | 81.67 | 284.37 | 0.9863 | -493.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 2.71 | 14.54 | 257.35 | 79.21 | 283.50 | 0.9788 | 276.0 | 221.4 | |
| 0.00 | 0.70 | 0.00 | 1.66 | 14.66 | 257.36 | 79.21 | 283.62 | 0.9788 | 311.0 | 250.6 | |
| 0.00 | 2.03 | 0.00 | 4.84 | 15.58 | 257.51 | 79.36 | 284.57 | 0.9791 | 296.0 | 206.3 | |
| 5.99 | 70.64 | 13.66 | 161.64 | 16.39 | 257.04 | 78.89 | 285.37 | 0.9773 | 167.8 | -64.7 | |
| 5.20 | -6.00 | 11.60 | -6.00 | 16.74 | 256.75 | 78.60 | 285.70 | 0.9761 | 365.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 2.03 | 17.40 | 255.87 | 77.72 | 286.34 | 0.9727 | 477.0 | 398.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
