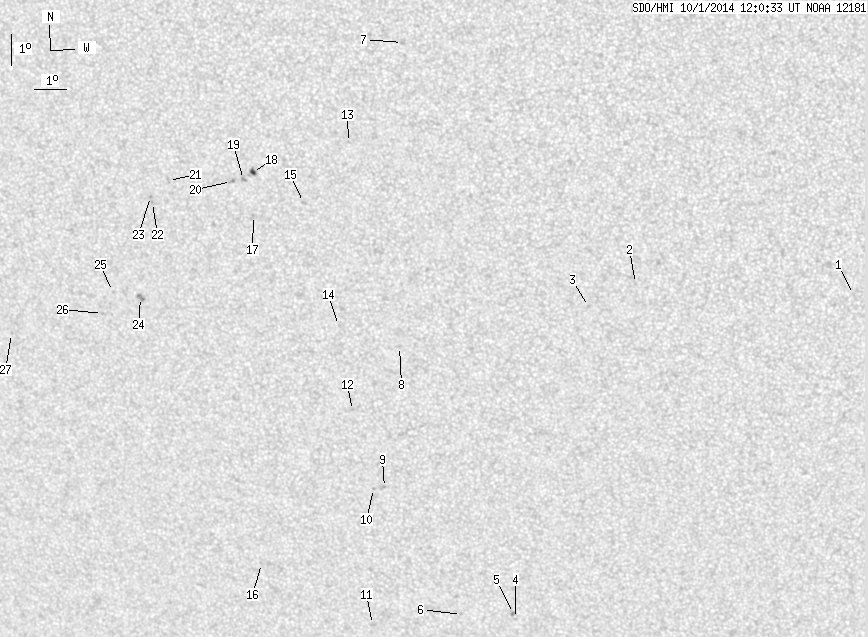

SDO HMI 2014-10-01 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.03 | 38.67 | 1.09 | 21.48 | -14.37 | 163.11 | -15.04 | 144.24 | 0.4455 | 143.5 | 29.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.19 | -13.56 | 180.46 | 2.31 | 186.47 | 0.3498 | -2.0 | -1.5 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -13.21 | 173.73 | -4.41 | 167.58 | 0.3498 | 11.0 | 19.2 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.96 | 172.26 | -5.89 | 164.21 | 0.3675 | 795.0 | 616.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -24.43 | 169.43 | -8.72 | 165.01 | 0.5360 | 511.0 | 449.7 | |
| 0.00 | 2.11 | 0.00 | 1.24 | -24.26 | 169.37 | -8.78 | 164.83 | 0.5337 | 986.0 | 714.3 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -24.33 | 167.63 | -10.52 | 162.05 | 0.5420 | -774.0 | -604.6 | |
| 0.00 | 1.94 | 0.00 | 1.00 | -5.78 | 166.74 | -11.41 | 137.36 | 0.2918 | 675.0 | 538.8 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -15.36 | 166.26 | -11.89 | 151.97 | 0.4244 | 592.0 | 428.6 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -20.03 | 165.44 | -12.70 | 155.19 | 0.4944 | 762.0 | 559.2 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -20.07 | 165.08 | -13.07 | 154.61 | 0.4973 | 553.0 | 506.5 | |
| 0.00 | 1.94 | 0.00 | 1.16 | -24.76 | 164.58 | -13.57 | 157.68 | 0.5630 | 719.0 | 578.9 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -17.49 | 164.61 | -13.54 | 151.22 | 0.4658 | 829.0 | 595.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.92 | 164.97 | -13.17 | 139.76 | 0.3501 | 665.0 | 524.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -14.73 | 164.36 | -13.79 | 147.51 | 0.4310 | 602.0 | 547.2 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -10.84 | 163.47 | -14.67 | 140.10 | 0.3895 | 412.0 | 320.3 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -22.75 | 161.05 | -17.10 | 150.88 | 0.5593 | 627.0 | 469.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -11.30 | 161.86 | -16.29 | 137.90 | 0.4119 | -744.0 | -551.8 | |
| 2.03 | 3.88 | 1.09 | 2.09 | -9.95 | 161.91 | -16.24 | 135.65 | 0.3957 | -941.4 | -800.3 | |
| 0.00 | 1.94 | 0.00 | 1.05 | -10.18 | 161.61 | -16.54 | 135.53 | 0.4017 | -971.0 | -794.7 | |
| 0.00 | 2.20 | 0.00 | 1.19 | -10.25 | 161.22 | -16.93 | 135.00 | 0.4069 | -875.0 | -713.8 | |
| 0.00 | 2.11 | 0.00 | 1.16 | -10.29 | 159.20 | -18.95 | 131.82 | 0.4306 | 745.0 | 537.3 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -11.01 | 158.63 | -19.52 | 132.21 | 0.4446 | 837.0 | 682.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -10.82 | 158.58 | -19.57 | 131.82 | 0.4432 | 832.0 | 776.4 | |
| 0.00 | 4.05 | 0.00 | 2.29 | -14.05 | 157.99 | -20.16 | 136.09 | 0.4840 | -968.0 | -851.2 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -13.89 | 157.08 | -21.07 | 134.60 | 0.4921 | -644.0 | -549.6 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -14.62 | 156.67 | -21.47 | 135.11 | 0.5040 | -647.0 | -466.9 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -15.41 | 153.50 | -24.64 | 132.32 | 0.5458 | -615.0 | -531.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
