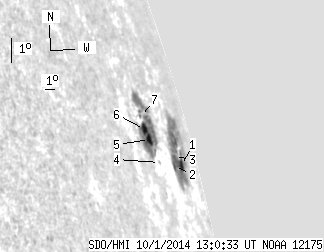

SDO HMI 2014-10-01 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.41 | 152.62 | 42.85 | 470.33 | 15.64 | 259.67 | 82.07 | 284.83 | 0.9866 | 29.1 | -149.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.58 | 80.32 | 17.03 | 298.15 | 15.07 | 261.43 | 83.83 | 284.38 | 0.9917 | -252.3 | -199.1 | |
| 0.26 | -1.00 | 0.82 | -1.00 | 15.21 | 259.89 | 82.29 | 284.40 | 0.9880 | -816.3 | 999999 | |
| 0.26 | -1.00 | 0.86 | -1.00 | 15.46 | 260.44 | 82.84 | 284.69 | 0.9893 | -694.7 | 999999 | |
| 0.00 | 0.70 | 0.00 | 1.75 | 15.61 | 257.50 | 79.90 | 284.63 | 0.9809 | 203.0 | 163.8 | |
| 4.67 | 71.60 | 11.07 | 170.43 | 16.39 | 256.97 | 79.37 | 285.40 | 0.9789 | 195.3 | -58.8 | |
| 5.20 | -5.00 | 12.06 | -5.00 | 16.74 | 256.67 | 79.07 | 285.74 | 0.9778 | 343.0 | 999999 | |
| 0.44 | -5.00 | 1.01 | -5.00 | 17.15 | 256.66 | 79.06 | 286.15 | 0.9777 | 332.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
