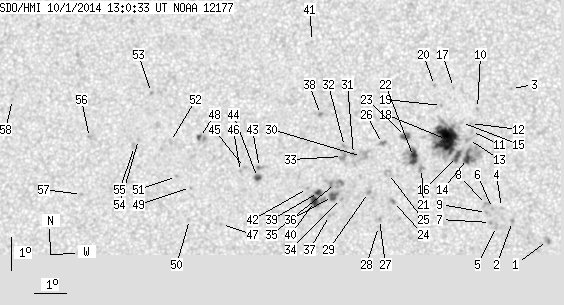

SDO HMI 2014-10-01 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.31 | 269.68 | 34.86 | 135.92 | 12.09 | 168.74 | -8.86 | 56.17 | 0.1811 | -288.1 | -97.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.79 | 0.00 | 1.88 | 9.69 | 173.63 | -3.97 | 52.34 | 0.0865 | -1147.0 | -856.9 | |
| 0.00 | 2.20 | 0.00 | 1.10 | 10.25 | 172.56 | -5.04 | 54.11 | 0.1072 | -1088.0 | -895.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.26 | 172.45 | -5.15 | 33.32 | 0.1590 | -737.0 | -525.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 10.67 | 172.21 | -5.39 | 52.83 | 0.1163 | -806.0 | -719.7 | |
| 0.00 | 2.82 | 0.00 | 1.40 | 10.10 | 172.07 | -5.53 | 57.70 | 0.1128 | -706.0 | -597.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 10.64 | 171.94 | -5.66 | 54.40 | 0.1198 | -1066.0 | -907.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | 10.22 | 171.88 | -5.71 | 57.65 | 0.1165 | -959.0 | -823.2 | |
| 0.00 | 3.61 | 0.00 | 1.80 | 10.76 | 171.75 | -5.85 | 54.46 | 0.1236 | -841.0 | -739.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 10.52 | 171.76 | -5.84 | 56.08 | 0.1212 | -964.0 | -779.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.65 | 171.41 | -6.19 | 40.70 | 0.1614 | -801.0 | -670.5 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 12.95 | 171.24 | -6.36 | 44.51 | 0.1546 | -555.0 | -360.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 13.19 | 171.21 | -6.39 | 43.58 | 0.1580 | -636.0 | -458.7 | |
| 0.00 | 2.82 | 0.00 | 1.41 | 12.71 | 171.16 | -6.44 | 46.04 | 0.1528 | -911.0 | -787.5 | |
| 4.14 | 105.16 | 2.07 | 52.75 | 12.14 | 171.14 | -6.46 | 49.01 | 0.1464 | -1158.4 | -522.9 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.22 | 170.93 | -6.67 | 44.66 | 0.1617 | -492.0 | -320.1 | |
| 3.88 | -14.00 | 1.94 | -14.00 | 12.19 | 170.83 | -6.77 | 50.01 | 0.1511 | -1109.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 14.27 | 170.65 | -6.95 | 41.45 | 0.1780 | -805.0 | -670.8 | |
| 35.93 | -14.00 | 18.03 | -14.00 | 12.70 | 170.47 | -7.12 | 48.89 | 0.1613 | -1138.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 13.73 | 170.29 | -7.31 | 45.05 | 0.1754 | -798.0 | -610.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 14.33 | 170.05 | -7.55 | 43.55 | 0.1855 | 757.0 | 620.2 | |
| 0.00 | 4.05 | 0.00 | 2.03 | 11.82 | 169.72 | -7.87 | 56.02 | 0.1625 | -1216.0 | -924.9 | |
| 7.57 | 19.38 | 3.81 | 9.74 | 12.17 | 169.47 | -8.13 | 55.04 | 0.1695 | -1096.6 | -521.4 | |
| 2.99 | 6.34 | 1.51 | 3.19 | 12.77 | 169.20 | -8.40 | 53.05 | 0.1791 | -871.6 | -628.0 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 10.81 | 168.89 | -8.71 | 63.82 | 0.1665 | 1051.0 | 913.5 | |
| 0.00 | 5.55 | 0.00 | 2.79 | 11.65 | 168.71 | -8.89 | 59.89 | 0.1758 | -348.0 | -484.4 | |
| 0.00 | 3.70 | 0.00 | 1.86 | 12.55 | 168.49 | -9.11 | 56.18 | 0.1868 | -850.0 | -561.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 10.26 | 168.47 | -9.13 | 67.80 | 0.1694 | 940.0 | 769.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 10.05 | 168.44 | -9.15 | 69.02 | 0.1685 | 808.0 | 567.5 | |
| 0.00 | 2.11 | 0.00 | 1.06 | 11.07 | 168.11 | -9.49 | 64.31 | 0.1804 | 1109.0 | 804.9 | |
| 0.00 | 11.36 | 0.00 | 5.73 | 12.15 | 167.85 | -9.75 | 59.70 | 0.1926 | 648.0 | 417.8 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 12.20 | 167.60 | -10.00 | 60.05 | 0.1967 | 940.0 | 790.4 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 12.44 | 167.31 | -10.29 | 59.69 | 0.2029 | 878.0 | 701.9 | |
| 0.00 | 6.25 | 0.00 | 3.16 | 12.14 | 167.26 | -10.34 | 61.13 | 0.2013 | 872.0 | 820.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 10.87 | 167.27 | -10.32 | 66.99 | 0.1921 | 861.0 | 748.6 | |
| 0.00 | 11.27 | 0.00 | 5.70 | 11.32 | 167.07 | -10.53 | 65.25 | 0.1982 | 660.0 | 805.4 | |
| 3.35 | 6.52 | 1.69 | 3.29 | 10.93 | 166.99 | -10.61 | 67.25 | 0.1969 | 1105.6 | 920.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 10.35 | 166.92 | -10.68 | 70.14 | 0.1947 | 920.0 | 734.9 | |
| 0.00 | 1.94 | 0.00 | 0.98 | 13.39 | 166.52 | -11.08 | 57.58 | 0.2225 | 1118.0 | 944.1 | |
| 2.38 | 15.59 | 1.20 | 7.89 | 11.04 | 166.55 | -11.05 | 67.50 | 0.2045 | 1025.1 | 836.1 | |
| 5.55 | -39.00 | 2.81 | -39.00 | 10.76 | 166.44 | -11.16 | 68.95 | 0.2047 | 965.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 15.59 | 166.15 | -11.44 | 50.60 | 0.2484 | -641.0 | -467.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.15 | 166.21 | -11.39 | 67.57 | 0.2106 | 688.0 | 553.6 | |
| 0.00 | 2.64 | 0.00 | 1.35 | 11.75 | 164.68 | -12.92 | 67.42 | 0.2382 | -996.0 | -840.9 | |
| 2.29 | 3.88 | 1.17 | 1.98 | 11.45 | 164.63 | -12.97 | 68.69 | 0.2372 | -1096.1 | -836.2 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 11.74 | 164.21 | -13.39 | 68.13 | 0.2455 | -855.0 | -704.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.61 | 164.09 | -13.51 | 68.76 | 0.2467 | -716.0 | -589.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.00 | 163.56 | -14.04 | 75.63 | 0.2477 | 673.0 | 520.8 | |
| 1.23 | 5.64 | 0.63 | 2.90 | 12.60 | 162.73 | -14.86 | 66.90 | 0.2734 | 848.9 | 855.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.09 | 162.53 | -15.07 | 72.46 | 0.2687 | 781.0 | 677.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.13 | 162.55 | -15.05 | 75.98 | 0.2647 | 769.0 | 570.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 11.41 | 162.07 | -15.53 | 71.78 | 0.2775 | 721.0 | 523.6 | |
| 0.00 | 2.20 | 0.00 | 1.14 | 12.46 | 161.82 | -15.78 | 68.48 | 0.2867 | 818.0 | 648.2 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 13.91 | 161.11 | -16.49 | 64.67 | 0.3061 | 860.0 | 664.5 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 12.48 | 160.79 | -16.81 | 69.46 | 0.3028 | 766.0 | 597.5 | |
| 0.00 | 3.08 | 0.00 | 1.60 | 12.27 | 160.68 | -16.92 | 70.25 | 0.3035 | 680.0 | 647.6 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 12.49 | 159.21 | -18.39 | 70.86 | 0.3274 | 754.0 | 559.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 10.77 | 159.07 | -18.53 | 76.14 | 0.3230 | 786.0 | 678.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 13.54 | 156.61 | -20.99 | 69.99 | 0.3723 | 715.0 | 573.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
