SDO HMI 2014-10-01 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.65 | 595.62 | 57.60 | 329.46 | -1.39 | 152.48 | -25.12 | 107.05 | 0.4456 | 260.9 | 267.4 | |
|
previous
or next observation for the same group /

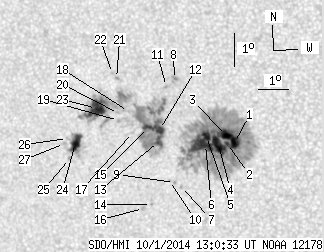

back to the solar disc SDO HMI 2014-10-01 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.25 | 356.86 | 5.04 | 195.49 | -1.53 | 154.24 | -23.36 | 108.61 | 0.4199 | 1345.2 | 452.4 | |
| 3.08 | -1.00 | 1.68 | -1.00 | -1.57 | 154.01 | -23.59 | 108.52 | 0.4236 | 1114.1 | 999999 | |
| 8.45 | -1.00 | 4.62 | -1.00 | -1.33 | 153.98 | -23.62 | 107.95 | 0.4228 | 1287.6 | 999999 | |
| 13.30 | -1.00 | 7.28 | -1.00 | -1.61 | 153.72 | -23.88 | 108.38 | 0.4283 | 1145.1 | 999999 | |
| 5.37 | -1.00 | 2.95 | -1.00 | -1.39 | 153.32 | -24.27 | 107.59 | 0.4330 | 950.5 | 999999 | |
| 11.27 | -1.00 | 6.19 | -1.00 | -1.63 | 153.29 | -24.31 | 108.09 | 0.4347 | 966.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -2.95 | 152.47 | -25.13 | 110.25 | 0.4540 | 701.0 | 599.8 | |
| 0.00 | 3.88 | 0.00 | 2.14 | 0.28 | 152.28 | -25.32 | 103.21 | 0.4412 | 852.0 | 744.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -2.84 | 152.24 | -25.36 | 109.84 | 0.4567 | 599.0 | 446.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -2.79 | 152.07 | -25.53 | 109.60 | 0.4588 | 537.0 | 419.2 | |
| 0.00 | 1.67 | 0.00 | 0.93 | 0.06 | 152.01 | -25.59 | 103.55 | 0.4461 | 881.0 | 709.6 | |
| 7.05 | 112.82 | 3.92 | 62.84 | -1.25 | 151.77 | -25.83 | 106.20 | 0.4555 | 939.8 | 295.7 | |
| 5.11 | -12.00 | 2.84 | -12.00 | -1.62 | 151.73 | -25.87 | 106.94 | 0.4578 | 884.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -3.55 | 151.45 | -26.15 | 110.66 | 0.4720 | -788.0 | -599.8 | |
| 5.72 | -12.00 | 3.19 | -12.00 | -1.21 | 151.40 | -26.20 | 105.88 | 0.4608 | 596.8 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.29 | -3.68 | 151.18 | -26.42 | 110.72 | 0.4767 | -737.0 | -576.3 | |
| 0.00 | 1.76 | 0.00 | 0.99 | -1.39 | 150.86 | -26.74 | 105.90 | 0.4696 | -186.0 | -168.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -0.76 | 150.73 | -26.87 | 104.53 | 0.4687 | -671.0 | -480.3 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -1.05 | 150.39 | -27.21 | 104.93 | 0.4750 | -240.0 | -245.1 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -0.84 | 150.39 | -27.20 | 104.50 | 0.4741 | -400.0 | -330.7 | |
| 0.00 | 1.59 | 0.00 | 0.89 | 0.22 | 150.33 | -27.27 | 102.29 | 0.4708 | -903.0 | -749.3 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 0.36 | 150.20 | -27.40 | 101.93 | 0.4723 | -896.0 | -691.8 | |
| 22.72 | 79.18 | 12.85 | 44.67 | -0.73 | 149.65 | -27.95 | 103.85 | 0.4847 | -980.1 | -476.1 | |
| 12.33 | 23.16 | 7.04 | 13.23 | -1.80 | 148.92 | -28.68 | 105.54 | 0.4999 | -890.2 | -563.0 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -2.30 | 148.70 | -28.90 | 106.36 | 0.5052 | -729.0 | -528.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -1.69 | 148.65 | -28.95 | 105.18 | 0.5034 | 25.0 | 3.3 | |
| 0.00 | 1.59 | 0.00 | 0.91 | -1.85 | 148.54 | -29.06 | 105.42 | 0.5056 | 196.0 | 157.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
