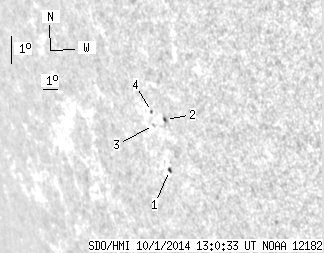

SDO HMI 2014-10-01 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.93 | 5.73 | 2.16 | 6.38 | -14.15 | 117.00 | -60.60 | 109.45 | 0.8977 | 74.3 | 131.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 1.85 | 1.29 | 2.08 | -15.25 | 116.94 | -60.66 | 110.62 | 0.9004 | -303.4 | -310.4 | |
| 0.79 | 1.94 | 0.87 | 2.12 | -13.58 | 117.46 | -60.14 | 108.96 | 0.8932 | 283.2 | 280.0 | |
| 0.00 | 1.06 | 0.00 | 1.19 | -13.86 | 116.57 | -61.02 | 109.02 | 0.9002 | 193.0 | 133.1 | |
| 0.00 | 0.88 | 0.00 | 0.99 | -13.41 | 116.65 | -60.95 | 108.55 | 0.8988 | 261.0 | 297.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
