SDO HMI 2014-10-01 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.22 | 91.05 | 16.06 | 53.11 | 7.30 | 209.14 | 32.09 | 273.05 | 0.5296 | -132.3 | 84.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

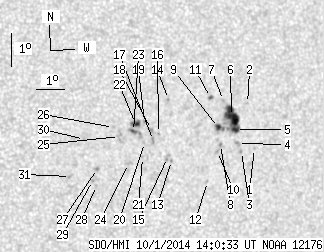

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.47 | 6.64 | 211.55 | 34.50 | 271.97 | 0.5651 | -549.0 | -493.4 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 8.00 | 211.41 | 34.36 | 274.39 | 0.5628 | -570.0 | -525.6 | |
| 0.00 | 1.32 | 0.00 | 0.79 | 6.58 | 211.07 | 34.02 | 271.84 | 0.5582 | -716.0 | -661.2 | |
| 0.00 | 2.38 | 0.00 | 1.41 | 6.83 | 210.94 | 33.89 | 272.28 | 0.5563 | -856.0 | -705.3 | |
| 3.70 | 37.16 | 2.20 | 22.05 | 7.25 | 210.90 | 33.86 | 273.04 | 0.5556 | -830.4 | -701.6 | |
| 16.73 | -5.00 | 9.94 | -5.00 | 7.65 | 210.79 | 33.74 | 273.76 | 0.5539 | -992.3 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 8.15 | 210.55 | 33.50 | 274.66 | 0.5503 | -741.0 | -483.8 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 6.84 | 210.32 | 33.28 | 272.26 | 0.5473 | -459.0 | -539.5 | |
| 2.29 | -5.00 | 1.35 | -5.00 | 7.35 | 210.29 | 33.25 | 273.20 | 0.5467 | -990.0 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.94 | 6.63 | 210.20 | 33.15 | 271.88 | 0.5456 | -839.0 | -668.8 | |
| 0.62 | 1.76 | 0.36 | 1.04 | 8.27 | 210.09 | 33.04 | 274.89 | 0.5436 | -699.4 | -565.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 5.76 | 209.78 | 32.73 | 270.22 | 0.5400 | -680.0 | -502.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 6.47 | 208.54 | 31.49 | 271.45 | 0.5213 | 662.0 | 512.5 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 8.30 | 208.58 | 31.53 | 274.98 | 0.5215 | 670.0 | 558.7 | |
| 0.00 | 3.52 | 0.00 | 2.04 | 6.57 | 208.40 | 31.36 | 271.63 | 0.5192 | 755.0 | 509.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 7.30 | 208.14 | 31.09 | 273.05 | 0.5150 | 387.0 | 300.3 | |
| 0.00 | 2.38 | 0.00 | 1.37 | 7.10 | 207.95 | 30.90 | 272.65 | 0.5122 | 678.0 | 560.9 | |
| 0.00 | 2.20 | 0.00 | 1.27 | 7.44 | 207.90 | 30.86 | 273.31 | 0.5115 | 650.0 | 547.0 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 7.69 | 207.68 | 30.63 | 273.81 | 0.5081 | 555.0 | 513.1 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 7.06 | 207.63 | 30.58 | 272.56 | 0.5074 | 758.0 | 634.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 6.62 | 207.53 | 30.48 | 271.67 | 0.5061 | 780.0 | 639.9 | |
| 2.91 | 12.50 | 1.66 | 7.16 | 7.65 | 207.36 | 30.31 | 273.72 | 0.5033 | 879.6 | 748.7 | |
| 0.97 | -22.00 | 0.55 | -22.00 | 7.42 | 207.27 | 30.22 | 273.25 | 0.5019 | 1016.2 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.36 | 6.47 | 207.03 | 29.98 | 271.34 | 0.4986 | 792.0 | 573.2 | |
| 0.00 | 4.93 | 0.00 | 2.81 | 7.30 | 206.77 | 29.72 | 273.00 | 0.4945 | 767.0 | 642.3 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 7.58 | 206.58 | 29.53 | 273.57 | 0.4916 | 592.0 | 466.6 | |
| 0.00 | 1.67 | 0.00 | 0.94 | 6.38 | 205.94 | 28.90 | 271.07 | 0.4823 | 850.0 | 760.7 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 5.87 | 205.88 | 28.83 | 270.01 | 0.4816 | 640.0 | 414.5 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 6.03 | 205.75 | 28.70 | 270.33 | 0.4796 | 677.0 | 615.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 7.27 | 205.56 | 28.51 | 272.93 | 0.4760 | 779.0 | 535.7 | |
| 0.00 | 2.03 | 0.00 | 1.13 | 6.19 | 205.00 | 27.96 | 270.59 | 0.4680 | 811.0 | 671.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
