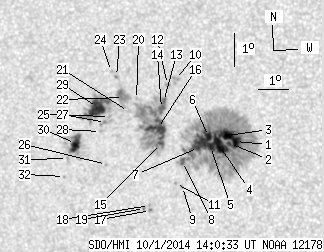

SDO HMI 2014-10-01 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.95 | 589.55 | 63.04 | 324.46 | -1.38 | 152.57 | -24.48 | 107.48 | 0.4360 | 254.3 | 293.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.84 | 356.28 | 4.26 | 194.27 | -1.50 | 154.25 | -22.80 | 109.01 | 0.4114 | 1416.4 | 474.8 | |
| 1.32 | -1.00 | 0.72 | -1.00 | -1.57 | 154.05 | -22.99 | 109.00 | 0.4148 | 1206.7 | 999999 | |
| 10.39 | -1.00 | 5.65 | -1.00 | -1.34 | 153.96 | -23.09 | 108.38 | 0.4149 | 1279.5 | 999999 | |
| 14.71 | -1.00 | 8.02 | -1.00 | -1.65 | 153.73 | -23.32 | 108.91 | 0.4201 | 1157.6 | 999999 | |
| 6.16 | -1.00 | 3.37 | -1.00 | -1.69 | 153.43 | -23.62 | 108.77 | 0.4247 | 985.9 | 999999 | |
| 4.93 | -1.00 | 2.69 | -1.00 | -1.39 | 153.37 | -23.68 | 108.05 | 0.4240 | 998.5 | 999999 | |
| 2.03 | -1.00 | 1.11 | -1.00 | -1.74 | 153.04 | -24.01 | 108.56 | 0.4309 | 844.6 | 999999 | |
| 2.20 | -1.00 | 1.21 | -1.00 | -2.19 | 152.50 | -24.55 | 109.12 | 0.4412 | 632.4 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -2.95 | 152.48 | -24.56 | 110.71 | 0.4457 | 612.0 | 537.4 | |
| 0.00 | 4.76 | 0.00 | 2.61 | 0.28 | 152.29 | -24.76 | 103.55 | 0.4326 | 854.0 | 756.4 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -2.87 | 152.25 | -24.79 | 110.36 | 0.4486 | 599.0 | 484.5 | |
| 0.00 | 1.76 | 0.00 | 0.97 | 0.12 | 152.03 | -25.02 | 103.76 | 0.4373 | 812.0 | 750.8 | |
| 1.94 | 119.14 | 1.07 | 66.05 | -0.40 | 151.89 | -25.15 | 104.82 | 0.4415 | 870.1 | 232.8 | |
| 3.96 | -13.00 | 2.19 | -13.00 | -0.62 | 151.83 | -25.22 | 105.24 | 0.4435 | 986.0 | 999999 | |
| 3.26 | -13.00 | 1.80 | -13.00 | -1.68 | 151.78 | -25.27 | 107.49 | 0.4492 | 837.4 | 999999 | |
| 19.46 | -13.00 | 10.77 | -13.00 | -1.23 | 151.69 | -25.36 | 106.47 | 0.4484 | 853.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -3.74 | 151.40 | -25.65 | 111.43 | 0.4660 | -889.0 | -737.4 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -3.59 | 151.37 | -25.68 | 111.11 | 0.4655 | -666.0 | -467.6 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -3.69 | 151.20 | -25.85 | 111.17 | 0.4685 | -550.0 | -574.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -0.39 | 150.99 | -26.05 | 104.23 | 0.4550 | 255.0 | 224.6 | |
| 0.00 | 2.55 | 0.00 | 1.42 | -0.76 | 150.72 | -26.32 | 104.86 | 0.4607 | -373.0 | -355.1 | |
| 0.00 | 16.91 | 0.00 | 9.43 | -0.35 | 150.56 | -26.49 | 103.90 | 0.4614 | -50.0 | -209.0 | |
| 0.00 | 1.59 | 0.00 | 0.88 | 0.27 | 150.33 | -26.72 | 102.46 | 0.4624 | -833.0 | -731.7 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 0.42 | 150.16 | -26.89 | 102.07 | 0.4644 | -924.0 | -758.3 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -0.95 | 150.08 | -26.96 | 104.86 | 0.4710 | -885.0 | -757.8 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -2.41 | 149.96 | -27.09 | 107.73 | 0.4796 | 502.0 | 430.3 | |
| 0.00 | 4.31 | 0.00 | 2.42 | -1.14 | 149.95 | -27.10 | 105.16 | 0.4738 | -928.0 | -737.2 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -1.42 | 149.77 | -27.27 | 105.63 | 0.4776 | -819.0 | -648.4 | |
| 24.04 | 44.29 | 13.52 | 24.93 | -0.70 | 149.68 | -27.37 | 104.11 | 0.4759 | -990.2 | -615.4 | |
| 11.71 | 22.81 | 6.66 | 12.97 | -1.83 | 148.92 | -28.13 | 105.92 | 0.4920 | -945.6 | -411.3 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -2.30 | 148.64 | -28.41 | 106.66 | 0.4983 | -720.0 | -602.5 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -2.85 | 148.52 | -28.53 | 107.64 | 0.5026 | -616.0 | -538.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
