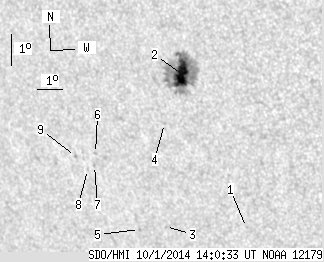

SDO HMI 2014-10-01 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.01 | 102.93 | 16.09 | 66.50 | -9.92 | 140.60 | -36.45 | 114.22 | 0.6439 | 570.1 | 279.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-01 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.29 | -14.39 | 142.54 | -34.51 | 121.77 | 0.6478 | 501.0 | 386.6 | |
| 25.01 | 96.07 | 16.09 | 61.79 | -9.68 | 140.81 | -36.24 | 114.01 | 0.6402 | 939.7 | 334.4 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -14.58 | 139.39 | -37.66 | 119.85 | 0.6841 | 557.0 | 491.7 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -11.27 | 139.94 | -37.11 | 115.74 | 0.6592 | 669.0 | 588.7 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -14.76 | 138.32 | -38.73 | 119.40 | 0.6967 | -706.0 | -613.7 | |
| 0.00 | 1.14 | 0.00 | 0.79 | -12.44 | 137.03 | -40.02 | 115.61 | 0.6987 | -638.0 | -531.5 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -12.82 | 136.91 | -40.14 | 116.06 | 0.7020 | -680.0 | -648.7 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -12.98 | 136.60 | -40.45 | 116.08 | 0.7062 | -540.0 | -408.4 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -12.60 | 136.19 | -40.86 | 115.36 | 0.7089 | -550.0 | -459.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
